- YXP700AS (PRO HAULER 700) JW41 2004
FRONT SUSPENSION WHEEL

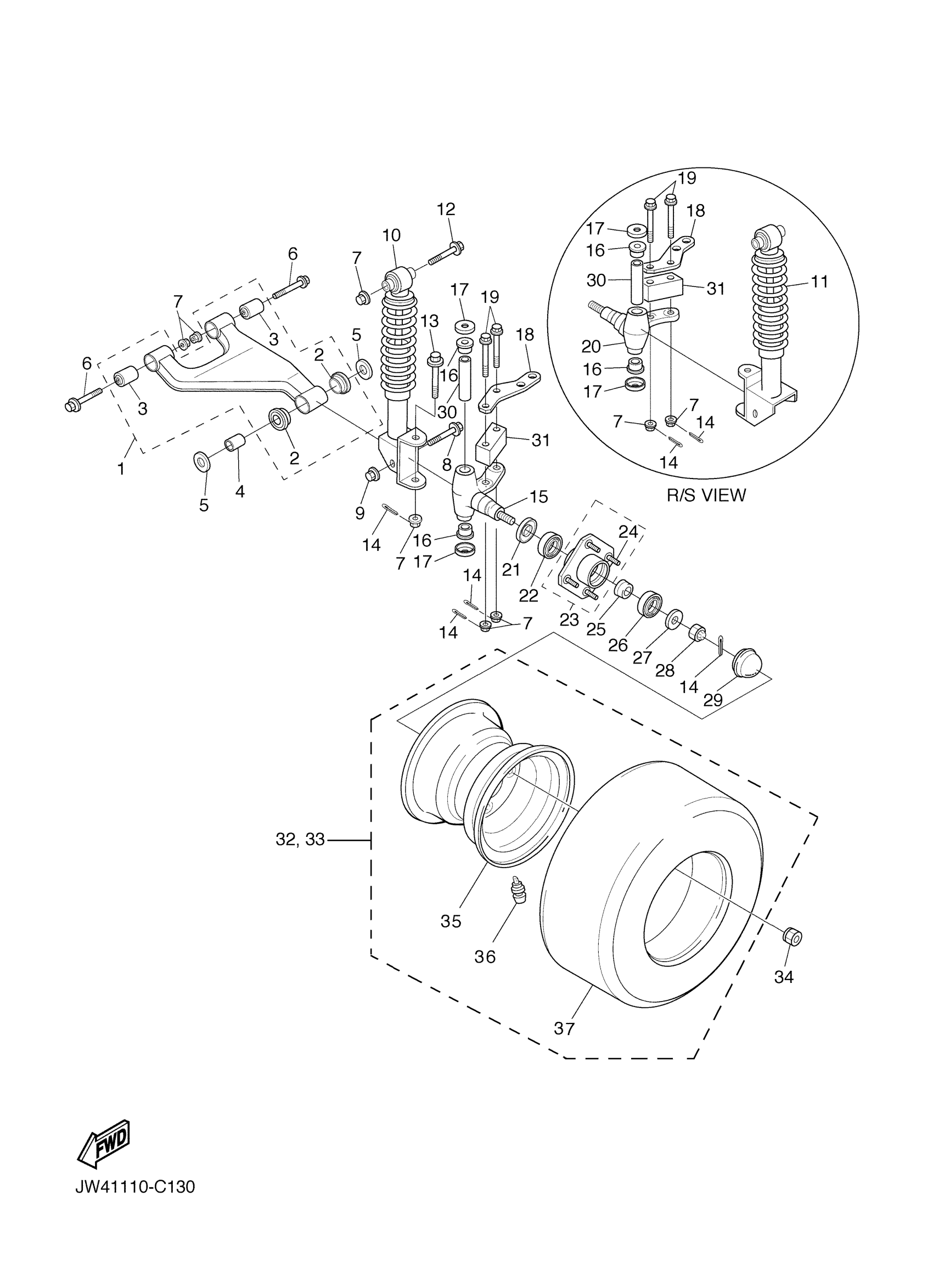

Yamaha YXP700AS (PRO HAULER 700) JW41 2004 FRONT SUSPENSION WHEEL Diagram
#
1
FRONT LOWER ARM COMP.
JU0-F3570-20-00
Unavailable
2
. BUSH, SOLID
90381-18001-00
Unavailable
3
BUSH
2HR-23526-00-00
$20.99
4
COLLAR
90387-12016-00
Unavailable
5
COVER, THRUST 1
401-22128-01-00
$29.99
6
BOLT, FLANGE
90105-10267-00
$9.49
7
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
8
BOLT, FLANGE
95817-12080-00
Unavailable
9
NUT, U
95612-12100-00
$5.60
10
SHOCK ABSORBER ASSY
JU7-F3350-00-00
Unavailable
11
SHOCK ABSORBER ASSY 2
JU7-F3390-00-00
Unavailable
12
BOLT,FLANGE
95817-10065-00
$5.60
13
BOLT, FLANGE
90105-10064-00
Unavailable
14
PIN, COTTER
91490-25020-00
$3.19
15
KNUCKLE, STEERING 1
JU0-F3511-01-00
Unavailable
16
BUSH, SOLID(2NL)
90381-17067-00
Unavailable
17
COVER, THRUST 1
3JN-23517-00-00
Unavailable
18
ARM,KNUCKLE 1
JU7-F3512-01-00
Unavailable
19
BOLT, WASHER BASED(JN9)
90105-10774-00
Unavailable
20
KNUCKLE, STEERING 2
JU0-F3521-01-00
Unavailable
21
OIL SEAL (30X47X7-810)
93102-30083-00
Unavailable
22
BEARING (J17)
93306-20437-00
Unavailable
23
HUB BEARING UNIT ASSY
J0B-F5103-00-00
Unavailable
24
BOLT, SERRATION
90114-12806-00
Unavailable
25
COLLAR(J41)
90387-241M7-00
Unavailable
26
BEARING
93306-00511-00
Unavailable
27
WASHER, CONICAL SPRING
90208-14801-00
Unavailable
28
NUT, U(4JT)
95617-14100-00
Unavailable
29
COVER, HUB DUST
JN6-F5118-01-00
Unavailable
30
SPACER
2NL-23448-00-00
Unavailable
31
SPACER
JU7-F3118-00-00
Unavailable
32
WHEEL ASSY (20X10-8/4/244)
JW4-F5100-00-00
Unavailable
33
WHEEL ASSY., 2 (20X10-8/4/244)
JW4-F5109-00-00
Unavailable
34
NUT (J10)
90179-12262-00
Unavailable
35
RIM, WHEEL (LOW GLOSS BLACK)
JW4-F5180-10-00
Unavailable
36
VALVE STEM
93900-00815-00
Unavailable
37
TIRE
94110-08801-00
Unavailable
