Description

Price

1

CRANKCASE ASSY

JR7-15100-04-00

Unavailable

2

NOZZLE 3

7CL-E5155-00-00

Unavailable

3

ELEMENT 1

JR7-15407-10-00

Unavailable

4

PLATE, BAFFLE 1

JR7-15123-00-00

Unavailable

5

SCREW, PAN

98517-06012-00

$3.78

6

BEARING(73A)

93306-30709-00

$58.99

7

OIL SEAL

93102-35014-00

Unavailable

8

BRG, R-B (7H4)

93306-20211-00

$25.99

9

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

$3.08

10

GASKET

812-11198-00-00

$6.99

11

PIN, DOWEL(3XW)

91808-16023-00

$8.49

12

CRANKCASE COVER SET

99999-03783-00

Unavailable

13

BEARING(2NL)

93306-20716-00

$83.99

14

OIL SEAL

93102-35014-00

Unavailable

15

BRG, R-B (7H4)

93306-20211-00

$25.99

16

GASKET, CRANKCASE COVER 1

JY2-15451-00-00

Unavailable

17

BOLT, FLANGE(JN5)

95817-08045-00

Unavailable

18

BOLT, FLANGE(8AB)

95817-10050-00

Unavailable

19

PLUG, OIL

796-15363-01-00

Unavailable

20

O-RING (1L9)

93210-22344-00

Unavailable

21

GAUGE, LEVEL

J38-15361-00-00

Unavailable

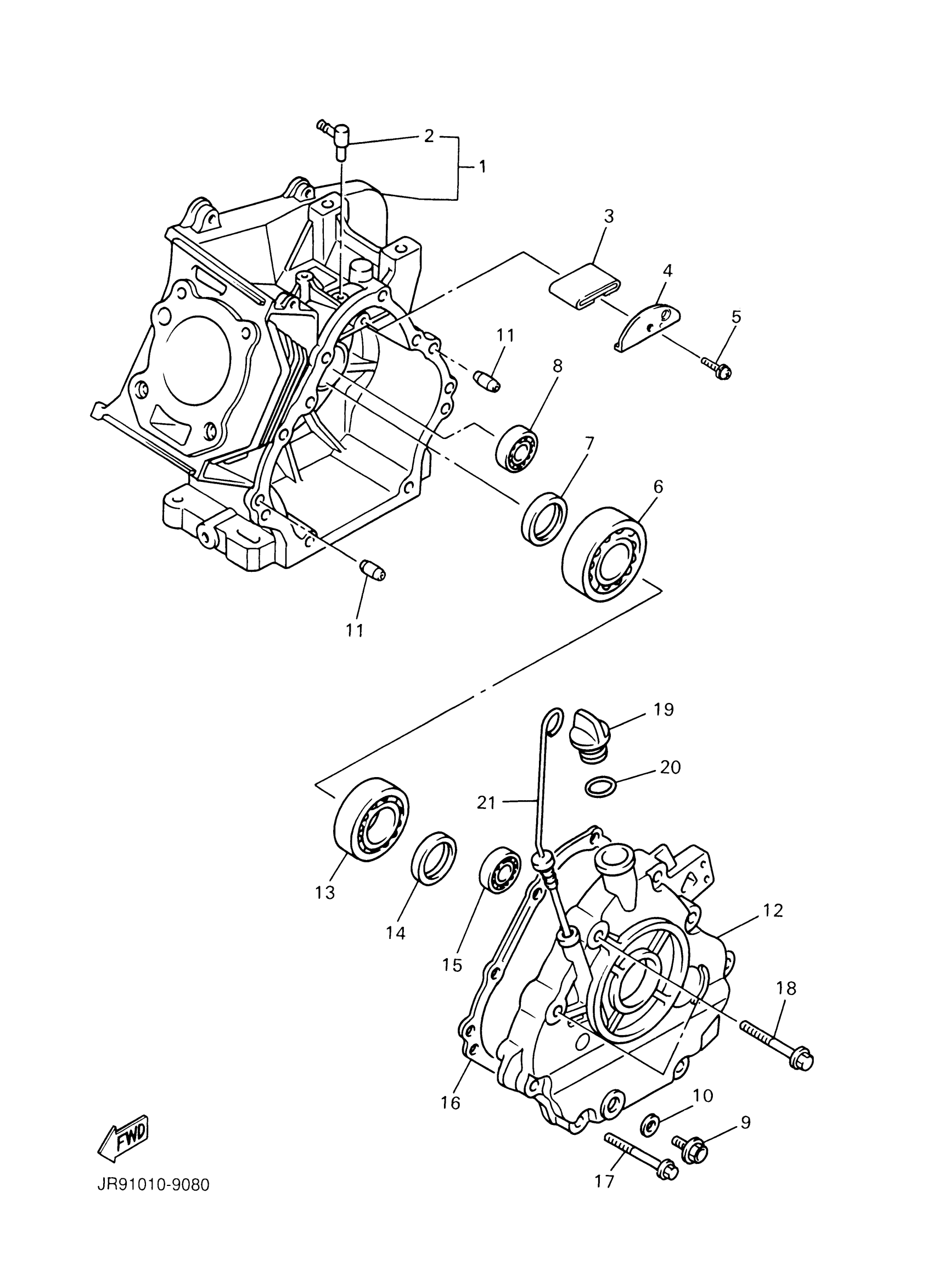

Yamaha YXP700AS (PRO HAULER 700) JW41 2004 CRANKCASE Diagram

CRANKCASE ASSY

NOZZLE 3

ELEMENT 1

PLATE, BAFFLE 1

SCREW, PAN

BEARING(73A)

OIL SEAL

BRG, R-B (7H4)

PLUG, STRAIGHT SCREW (22F)

GASKET

PIN, DOWEL(3XW)

CRANKCASE COVER SET

BEARING(2NL)

OIL SEAL

BRG, R-B (7H4)

GASKET, CRANKCASE COVER 1

BOLT, FLANGE(JN5)

BOLT, FLANGE(8AB)

PLUG, OIL

O-RING (1L9)

GAUGE, LEVEL
