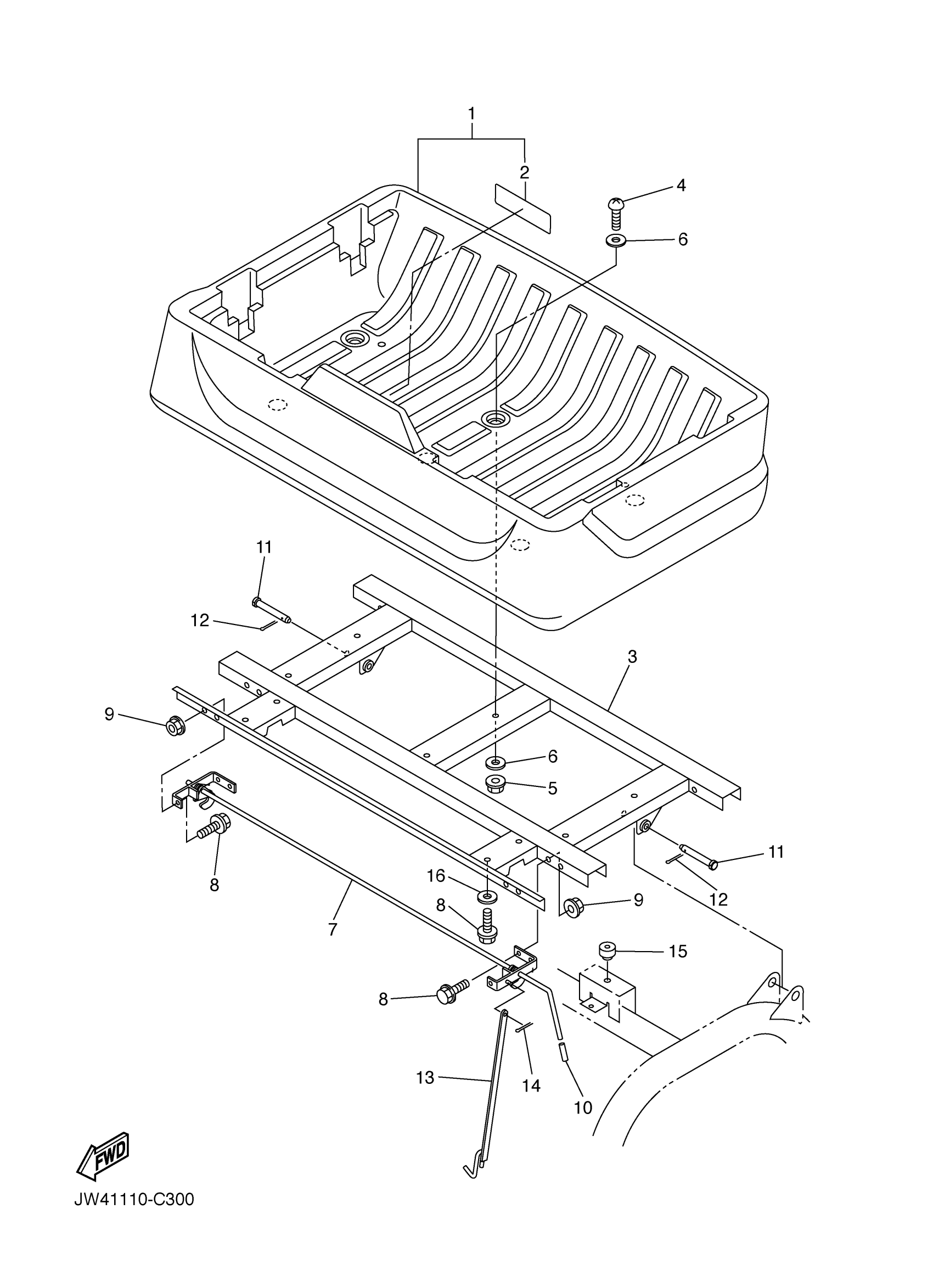

Yamaha YXP700AS (PRO HAULER 700) JW41 2004 CARRIER Diagram
#
Description
Price
1
SHELL, RR. STORAGE BOX
JU7-K819J-00-00
Unavailable
2
. LABEL, WARNING 6
JU7-K7766-00-00
Unavailable
3
BED, BOX
JU7-K818N-00-00
Unavailable
4
BOLT, BUTTON HEAD
92017-10035-00
Unavailable
6
WASHER, PLATE
90201-10144-00
Unavailable
7
LOCK ASSY
JU7-K8380-00-00
Unavailable
8
BOLT, FLANGE
9582P-08020-00
Unavailable
10
CAP, PROTECTOR END 4
JJ3-K818M-00-00
Unavailable
11
PIN, CLEVIS
90240-13803-00
Unavailable
13
ROD, INSPECTION LID
JU7-K8158-00-00
Unavailable
16
WASHER, PLATE (3L7)
90201-08784-00
Unavailable
