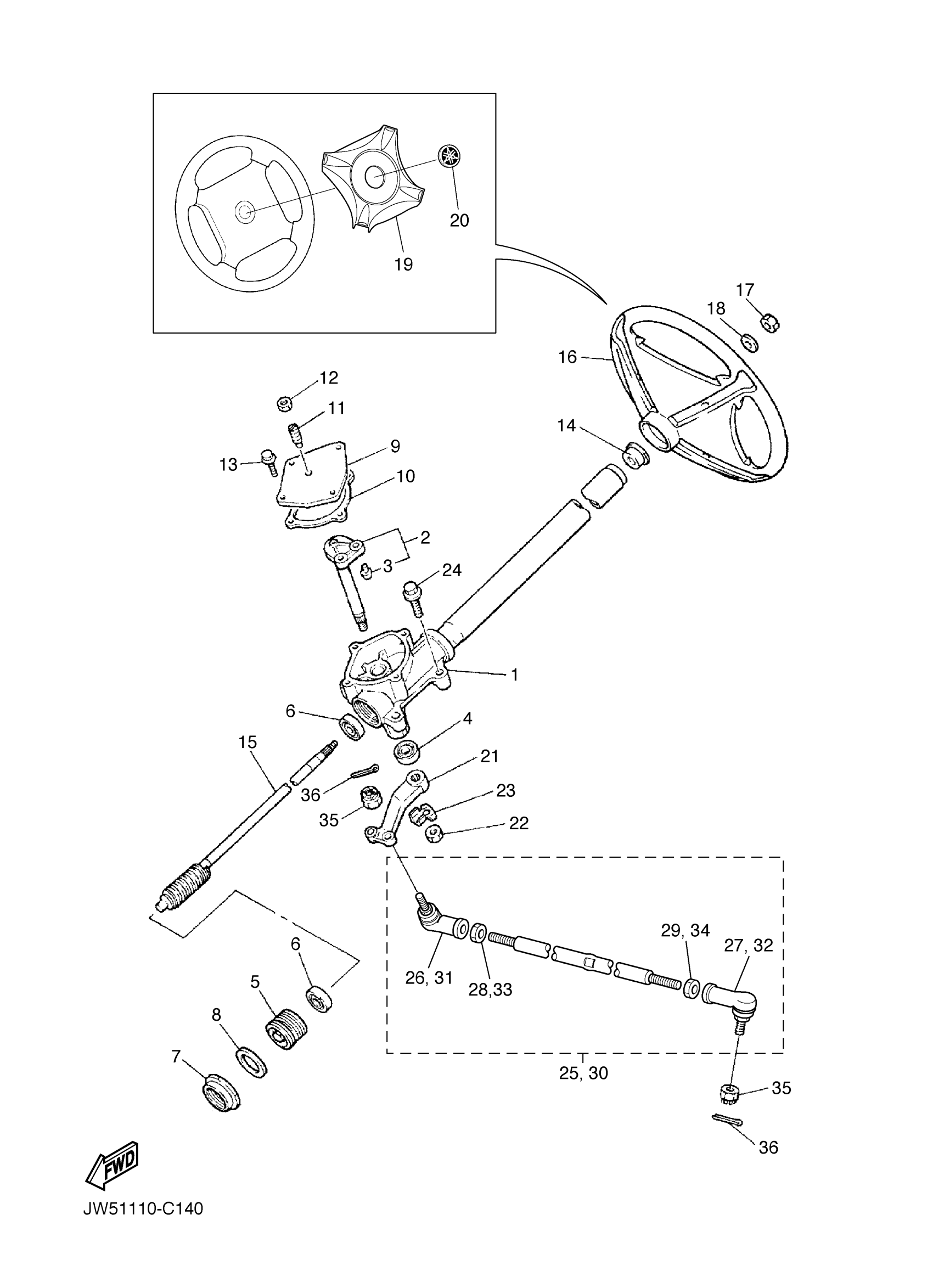

Yamaha YXP1000AT (PRO HAULER 1000) JW52 2005 STEERING Diagram
#
1
COLUMN, STEERING
JG5-F3811-00-00
Unavailable
2
ARM, PITMAN
J38-23816-00-00
Unavailable
3
. PIN, PITMAN
J38-23836-00-00
Unavailable
4
OIL SEAL (35R)
93102-22314-00
Unavailable
5
BOLT
J55-F3876-00-00
Unavailable
6
BEARING
93332-000Y2-00
Unavailable
7
NUT
J10-23877-00-00
Unavailable
8
WASHER
J10-23444-00-00
Unavailable
9
COVER,STEERING
JN3-F3818-01-00
Unavailable
10
SEAL, STEERING
J38-23462-01-00
Unavailable
11
BOLT
J10-F3459-00-00
Unavailable
12
NUT (878SR)
90170-08024-00
$1.81
13
BOLT, FLANGE
95817-06020-00
$3.81
14
HOLDER, HANDLE UPPER
JN3-F3814-01-00
Unavailable
15
STEERING SHAFT ASSY
JU5-F3840-00-00
Unavailable
16
WHEEL, STEERING
JN3-F3838-09-00
Unavailable
17
NUT, SELF LOCKING (23X)
90185-12119-00
Unavailable
18
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
19
COVER, STEERING
5UG-F3818-00-00
Unavailable
20
TUNING FORK MARK
5FU-F175B-01-00
Unavailable
21
ARM, IDLER
J38-23826-01-00
Unavailable
22
NUT, NYLON
95707-16300-00
Unavailable
23
WASHER, LOCK
90215-16801-00
Unavailable
24
BOLT, FLANGE
90105-10848-00
Unavailable
25
TIE ROD ASY LH
JU9-F3830-09-00
Unavailable
26
JOINT, UNIVERSAL 1
JN6-23841-10-00
Unavailable
27
JOINT, UNIVERSAL 2
JN6-23845-10-00
Unavailable
28
NUT(6TD)
95337-10600-00
Unavailable
29
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
30
TIE ROD ASSY RH
JU9-F3850-09-00
Unavailable
31
JOINT, UNIVERSAL 1
JN6-23841-10-00
Unavailable
32
JOINT, UNIVERSAL 2
JN6-23845-10-00
Unavailable
33
NUT(6TD)
95337-10600-00
Unavailable
34
NUT, HEXAGON (8A5)
90170-10186-00
Unavailable
35
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
36
PIN, COTTER
91490-25020-00
Unavailable
