STARTING MOTOR

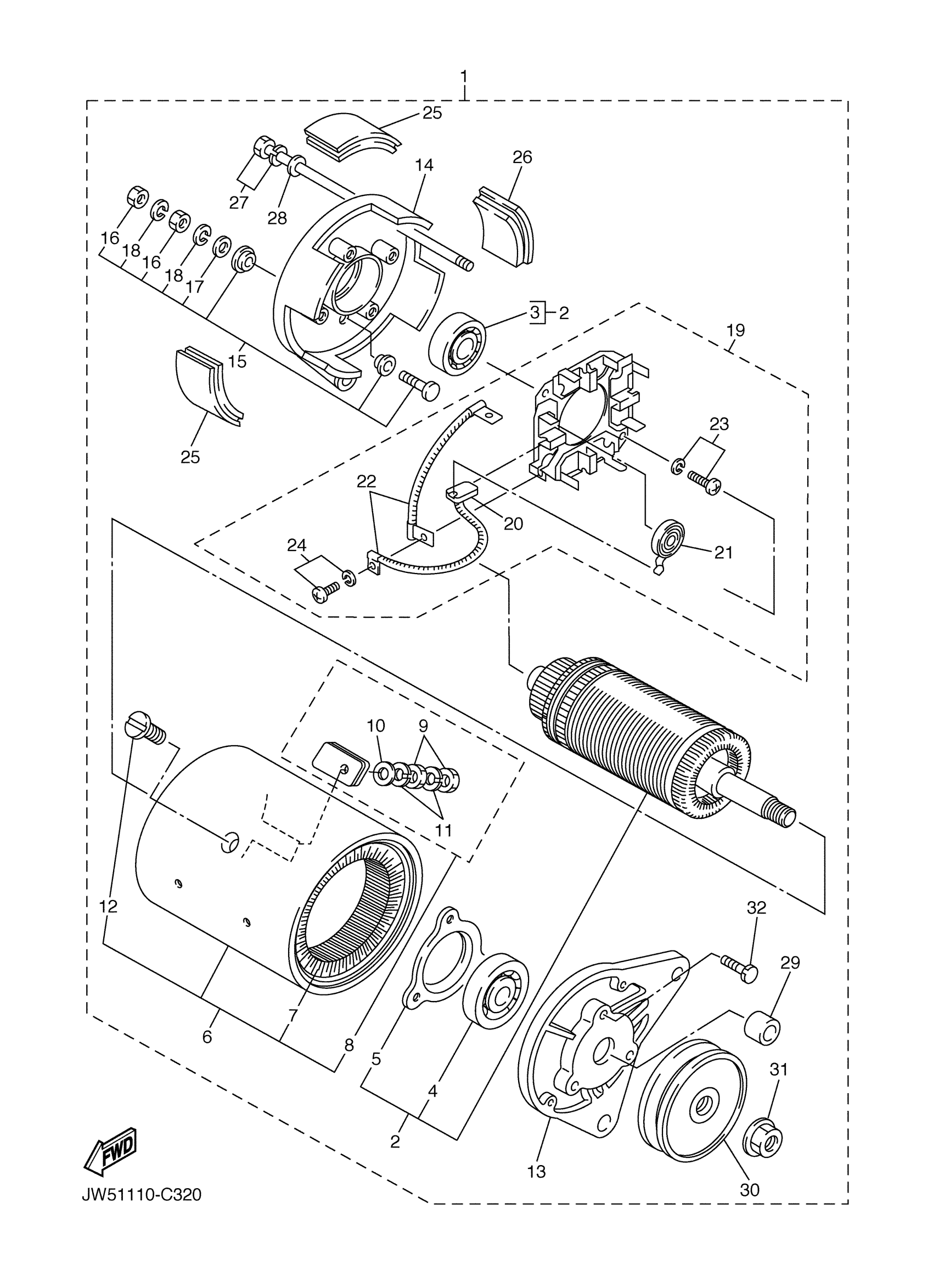

Yamaha YXP1000AT (PRO HAULER 1000) JW52 2005 STARTING MOTOR Diagram
#
1
STARTER GEN ASY
J0B-H1100-00-00
Unavailable
2
ARMATURE ASSY
JN5-81150-09-00
Unavailable
3
BEARING(3DL)
93306-20226-00
$38.99
4
BEARING(4HM)
93306-30317-00
$39.99
5
HOLDER, BEARING
J10-81159-19-00
Unavailable
6
.. STATOR ASSY
JN6-H1110-10-00
Unavailable
7
.. FIELD COIL ASSY
JN6-H1160-10-00
Unavailable
8
SCREW 4
J10-81148-19-00
Unavailable
9
NUT(6TA)
95317-06600-00
$3.55
10
. WASHER
9290N-06600-00
Unavailable
11
WASHER, SPRING
92907-06100-00
$4.25
12
.. SCREW 2
J10-81146-10-00
Unavailable
13
. BRACKET, STARTER GENERATOR 1
JN6-H1165-00-00
Unavailable
14
BRACKET, STARTER GENERATOR 2
JB2-81166-00-00
Unavailable
15
TERMINAL BOLT SET
J10-81147-19-00
Unavailable
16
NUT(6TA)
95317-06600-00
$3.55
17
. WASHER
9290N-06600-00
Unavailable
18
WASHER, SPRING
92907-06100-00
$4.25
19
. BRUSH HOLDER ASSY
JN6-H1119-00-00
Unavailable
20
.. BRUSH
JF2-H1111-00-00
Unavailable
21
.. SPRING, BRUSH
JN6-H1113-00-00
Unavailable
22
WIRE, LEAD
J10-81115-19-00
Unavailable
23
.. SCREW, PAN HEAD
9850N-05016-00
Unavailable
24
.. SCREW, PAN HEAD
9850N-04010-00
Unavailable
25
COVER, BRUSH
J10-81129-19-00
Unavailable
26
. COVER, BRUSH 2
J10-H1139-10-00
Unavailable
27
. SCREW 1
J10-81145-10-00
Unavailable
28
. WASHER
9290N-06600-00
Unavailable
29
. SPACER
JN3-H1661-00-00
Unavailable
30
PULLEY
JN6-H1161-00-00
Unavailable
31
NUT(3JP)
90179-16661-00
Unavailable
32
. SCREW, PAN HEAD
9850N-05018-00
Unavailable
