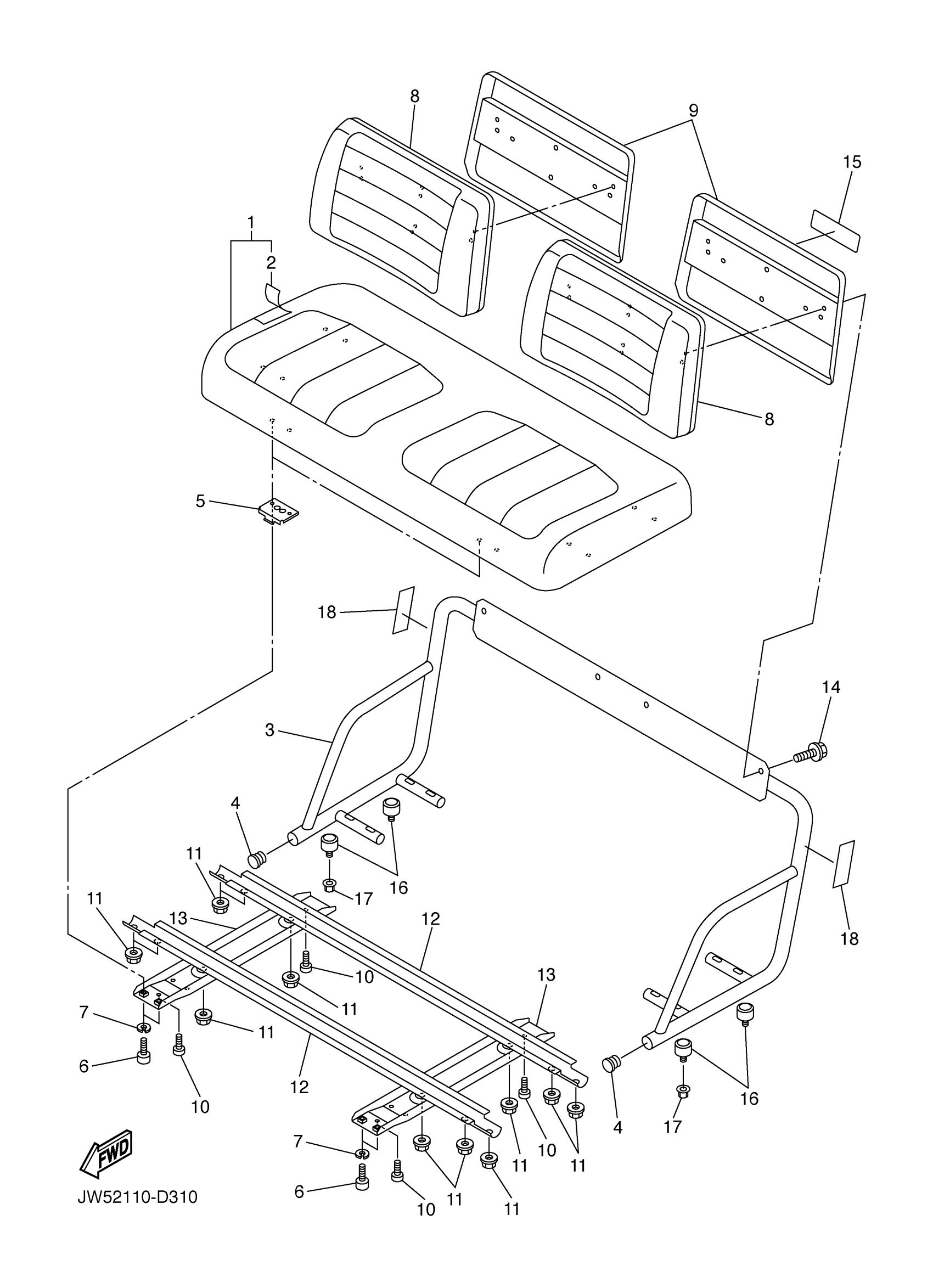

Yamaha YXP1000AT (PRO HAULER 1000) JW52 2005 SEAT Diagram

#

Description

Price

1

SEAT SUB-ASSY, CUSHION

JW5-K8401-00-00

Unavailable

2

.. COVER, SEAT

JW5-K8404-00-00

Unavailable

3

SEAT ASSY 2

JU9-K8420-00-00

Unavailable

4

CAP, MAIN PIPE

JU7-F111A-00-00

Unavailable

5

HINGE, SEAT 1

JN3-K8426-02-00

Unavailable

6

BOLT

90111-06810-00

Unavailable

7

WASHER, SPRING

90204-06800-00

Unavailable

8

SEAT SUB ASSY, BACK

JW4-K8402-00-00

Unavailable

9

COVER, SEAT BACK

JJ3-K8413-10-00

Unavailable

10

SCREW, TAPPING

90167-04815-00

Unavailable

11

NUT, SELF-LOCKING

95602-08200-00

$3.20

12

REINFORCEMENT 1

JN6-K8121-01-00

Unavailable

13

REINFORCEMENT 2

JN6-K8122-03-00

Unavailable

14

BOLT, WITH WASHER

90119-06837-00

Unavailable

15

LABEL, WARNING 7

JU7-K7767-00-00

Unavailable

16

BUMPER, RUBBER 1

JU5-K8167-01-00

Unavailable

17

NUT, SELF-LOCKING

95602-08200-00

$3.20

18

LABEL,WARNING 4

5B4-K7764-00-00

Unavailable
