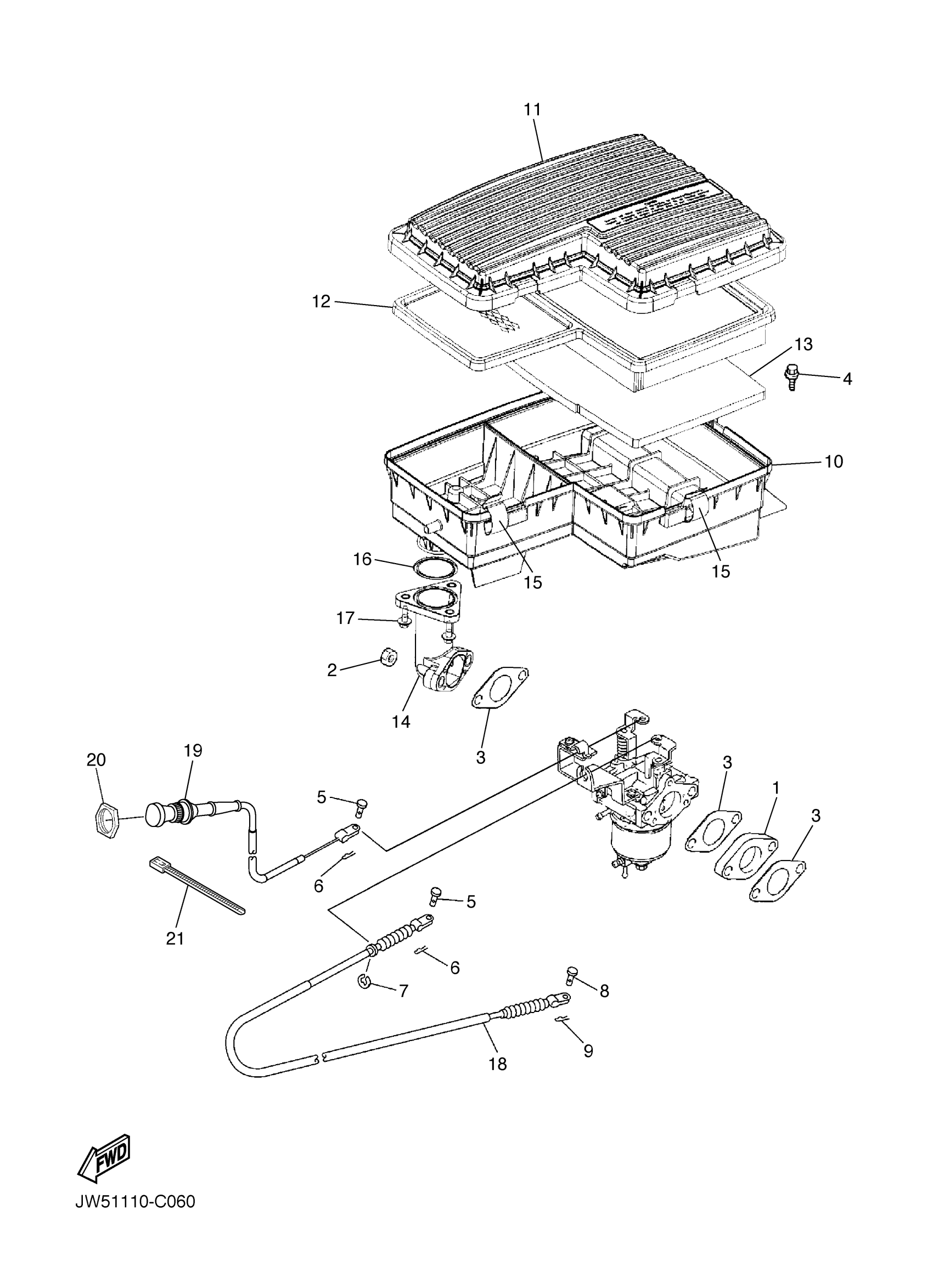

Yamaha YXP1000AT (PRO HAULER 1000) JW52 2005 INTAKE Diagram

#

Description
Price

1

JOINT

JN6-13595-00-00

Unavailable

2

NUT, FLANGE(JN5)

95707-08500-00

$3.13

3

GASKET

JN6-13567-00-00

Unavailable

4

BOLT, WITH WASHER

90119-06884-00

Unavailable

5

PIN (6E4)

91790-05010-00

Unavailable

6

CLIP (156-83525-00)

90468-10050-00

$3.05

7

CIRCLIP

99080-07600-00

Unavailable

8

PIN (6E4)

91790-05010-00

Unavailable

9

CLIP (156-83525-00)

90468-10050-00

$3.05

10

CASE, AIR CLEANER

JU0-E4411-00-00

Unavailable

11

CAP, CLEANER CASE

JU0-E4412-00-00

Unavailable

12

ELEMENT ASSY, AIR CLEANER

JN6-E4450-01-PC

Unavailable

13

FILTER 1

JU0-E445E-00-00

Unavailable

14

JOINT COMP.

JU0-E3505-09-00

Unavailable

15

CLIP, CAP FITTING

5ND-E4424-00-00

Unavailable

16

. O-RING

93210-398D6-00

Unavailable

17

BOLT, FLANGE

90105-06870-00

Unavailable

18

CABLE, THROTTLE 2

JU0-F6312-00-00

Unavailable

19

WIRE, STARTER

J55-F6331-11-00

Unavailable

20

NUT

JU0-F6333-00-00

Unavailable

21

CLAMP(JN6)

90464-31827-00

Unavailable
