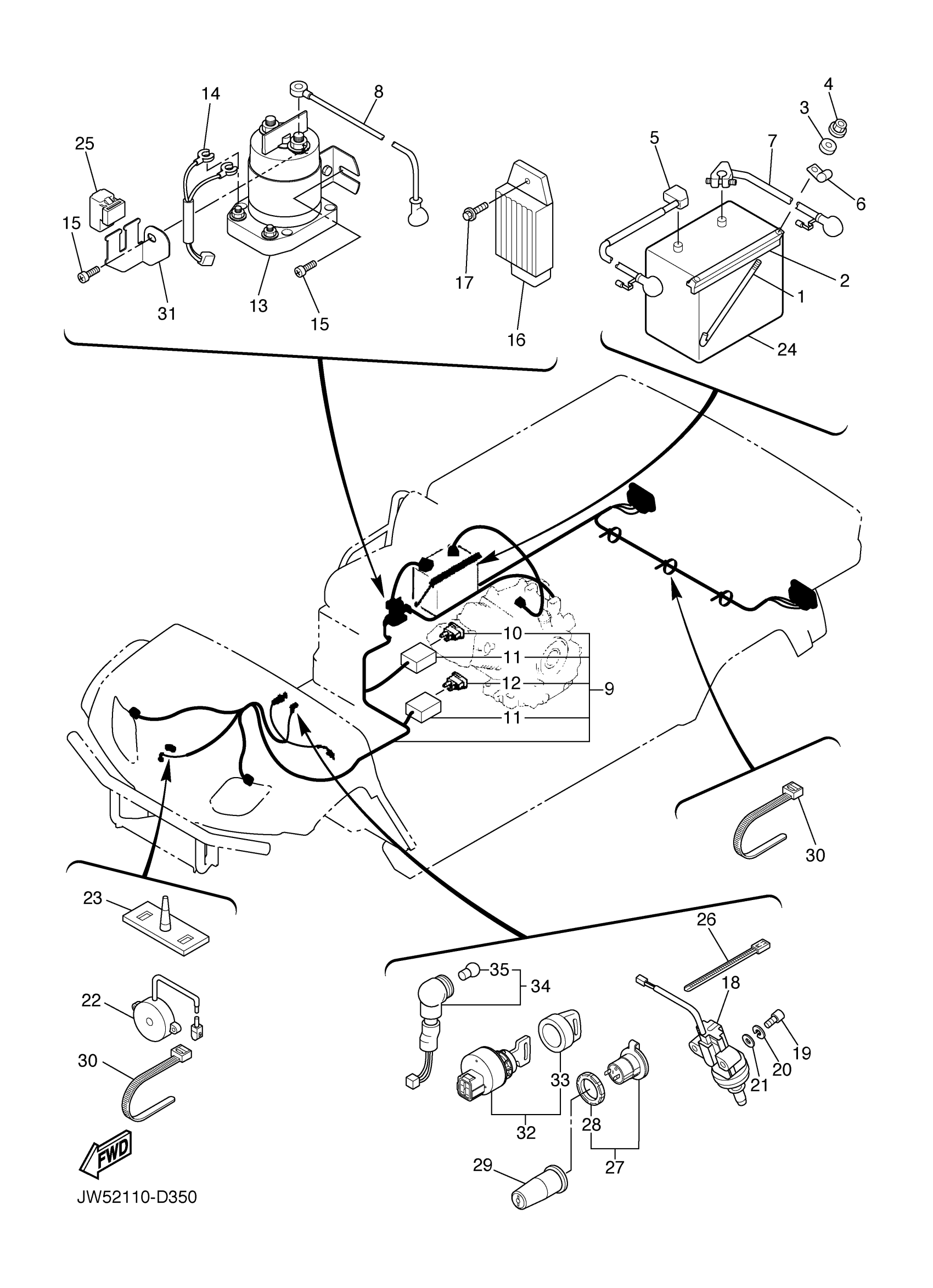

Yamaha YXP1000AT (PRO HAULER 1000) JW52 2005 ELECTRICAL 2 Diagram
#
1
SCREW, FITTING
JN3-H2133-00-00
Unavailable
2
PLATE, BATTERY FITTING (YPDI)
J55-H2136-00-00
$10.49
3
WASHER(6TA)
92907-06200-00
$8.49
4
NUT, FLANGE(4MV)
95707-06500-00
$1.23
5
WIRE, PLUS LEAD
JU9-H2115-00-00
Unavailable
6
CLAMP 1
90461-08031-00
Unavailable
7
WIRE, MINUS LEAD
JR3-H2116-00-00
Unavailable
8
WIRE, LEAD
JR3-H2117-00-00
Unavailable
9
WIRE HARNESS ASSY
JW5-H2590-01-00
Unavailable
10
. FUSE (10A)
JN6-H2151-00-00
Unavailable
11
. FUSE HOLDER ASSY
JR1-H2150-00-00
Unavailable
12
. FUSE (20 A)
JU7-H2151-00-00
Unavailable
13
RELAY ASSY
JW1-H1950-00-00
Unavailable
14
WIRE HARNESS
JN6-H2105-00-00
Unavailable
15
SCREW, TAPPING
90163-06005-00
Unavailable
16
VOLTAGE REGULATOR
JF2-81910-12-00
Unavailable
17
BOLT, FLANGE
90105-06870-00
Unavailable
18
SWITCH
JF7-82817-22-00
Unavailable
19
SCREW, PAN HEAD(4MY)
98507-05025-00
Unavailable
20
WASHER(3SX)
92907-05100-00
Unavailable
21
WASHER(1RW)
92907-05600-00
Unavailable
22
BUZZER
JR1-H3383-02-00
Unavailable
23
STAY, BUZZER
JN6-H3386-01-00
Unavailable
24
BATTERY ASSY (GC-24, 12V)
JG5-H2110-01-00
Unavailable
25
RELAY ASSY
4U8-81950-03-00
Unavailable
26
CLAMP(JN6)
90464-40825-00
Unavailable
27
TERMINAL ASSY
5FU-H1920-10-00
Unavailable
28
NUT
5FU-H191B-10-00
Unavailable
29
COVER,CONNECTER
5FU-H2599-01-00
Unavailable
30
CLAMP
90464-14806-00
Unavailable
31
STAY, RELAY
JU7-F253B-00-00
Unavailable
32
MAIN SWITCH 3-WAY(MULTI KEY)
JU6-H2510-01-00
Unavailable
33
CAP, KEY
5UG-H2579-00-00
Unavailable
34
PILOT LIGHT ASSY
JN6-83530-00-00
Unavailable
35
BULB (12V-3.4W)
123-83516-21-00
Unavailable
