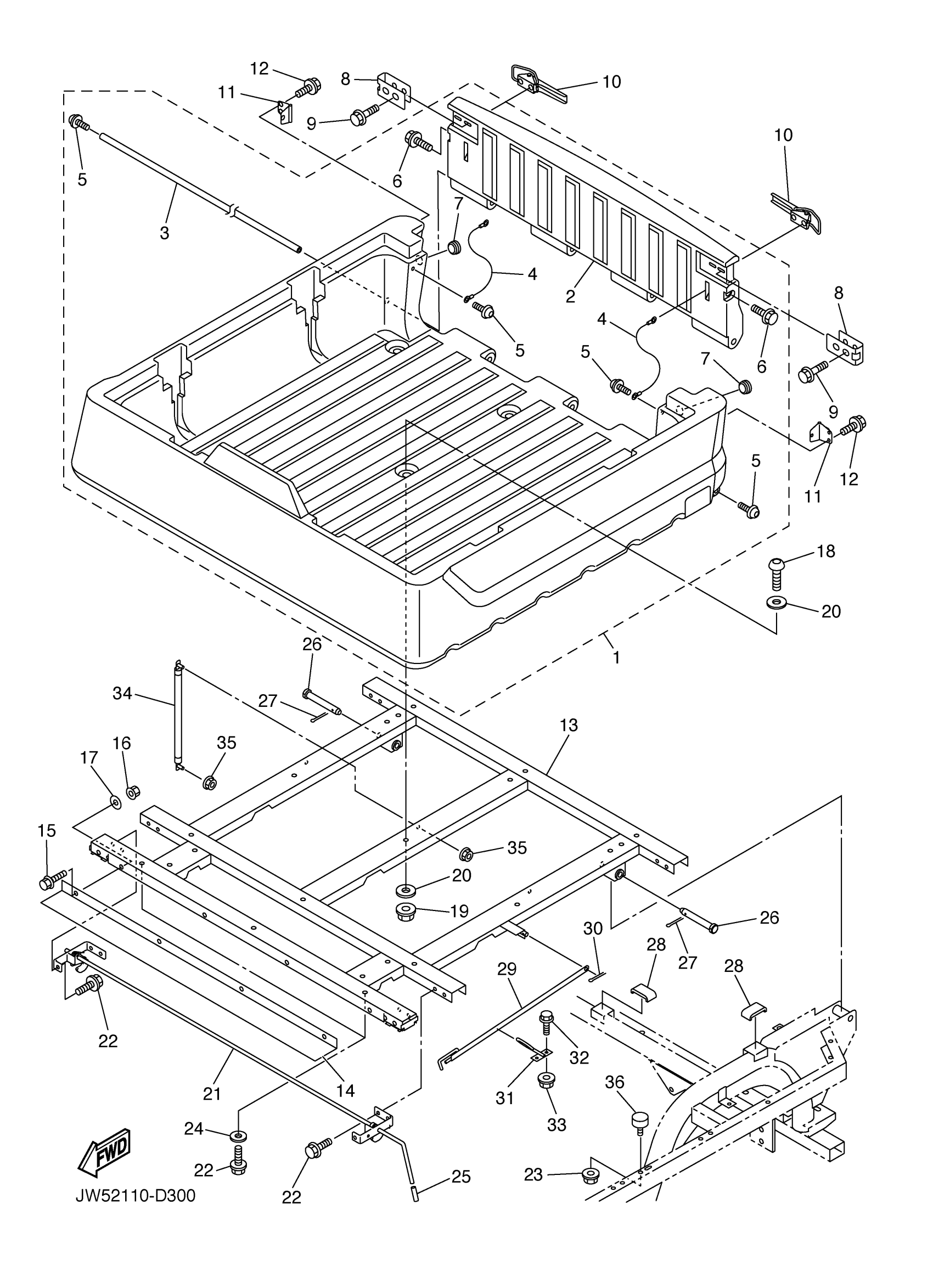

Yamaha YXP1000AT (PRO HAULER 1000) JW52 2005 CARRIER Diagram
#
1
REAR STORAGE BOX ASSY
JU9-K810M-01-00
Unavailable
2
. SHELL, REAR STORAGE LID
JU9-K819K-00-00
Unavailable
3
. PIN, HINGE
JU9-K8564-00-00
Unavailable
4
. HOLDER, CABLE
JU9-K7195-00-00
Unavailable
5
. BOLT, SPECIAL 1
JU9-K6179-00-00
Unavailable
6
. BOLT, SPECIAL 2
JU9-K6189-00-00
Unavailable
7
. DAMPER, LID
JU9-K7739-10-00
Unavailable
8
BODY, LATCH 1
JU9-K7171-00-00
Unavailable
9
BOLT
JU9-K8384-00-00
Unavailable
10
LATCH
5UG-F389E-00-00
$25.99
11
. BODY, LATCH 2
JU9-K7172-00-00
Unavailable
12
BOLT, WITH WASHER
90119-06830-00
Unavailable
13
BED, BOX
JU9-K818N-01-00
Unavailable
14
COVER, 4
JU9-K8284-01-00
Unavailable
15
BOLT, FLANGE
95817-06016-00
$2.75
16
NUT, U FLANGE
95604-06200-00
Unavailable
17
WASHER, PLATE
90201-06078-00
Unavailable
18
BOLT, BUTTON HEAD
92017-10035-00
Unavailable
19
NUT, SELF-LOCKING(3KJ)
90185-10154-00
Unavailable
20
WASHER, PLATE
90201-10144-00
Unavailable
21
LOCK ASSY
JU9-K8380-01-00
Unavailable
22
BOLT, FLANGE
9582P-08020-00
Unavailable
23
NUT, SELF-LOCKING
95602-08200-00
Unavailable
24
WASHER, PLATE (3L7)
90201-08784-00
Unavailable
25
CAP, PROTECTOR END 4
JJ3-K818M-00-00
Unavailable
26
PIN, CLEVIS
90240-13803-00
Unavailable
27
PIN, COTTER
91401-30025-00
Unavailable
28
DAMPER, LOCK
JJ3-K815H-01-00
Unavailable
29
ROD, INSPECTION LID
JU5-K8158-00-00
Unavailable
30
PIN, COTTER
91490-20025-00
Unavailable
31
PIN, LEVER
JJ3-K8369-00-00
Unavailable
32
BOLT, WITH WASHER
90119-06830-00
Unavailable
33
NUT, U FLANGE
95604-06200-00
Unavailable
34
DAMPER 1
JJ3-K7588-00-00
Unavailable
35
NUT, SELF-LOCKING
95602-08200-00
Unavailable
36
BUMPER, RUBBER 1
JU5-K8167-11-00
Unavailable
