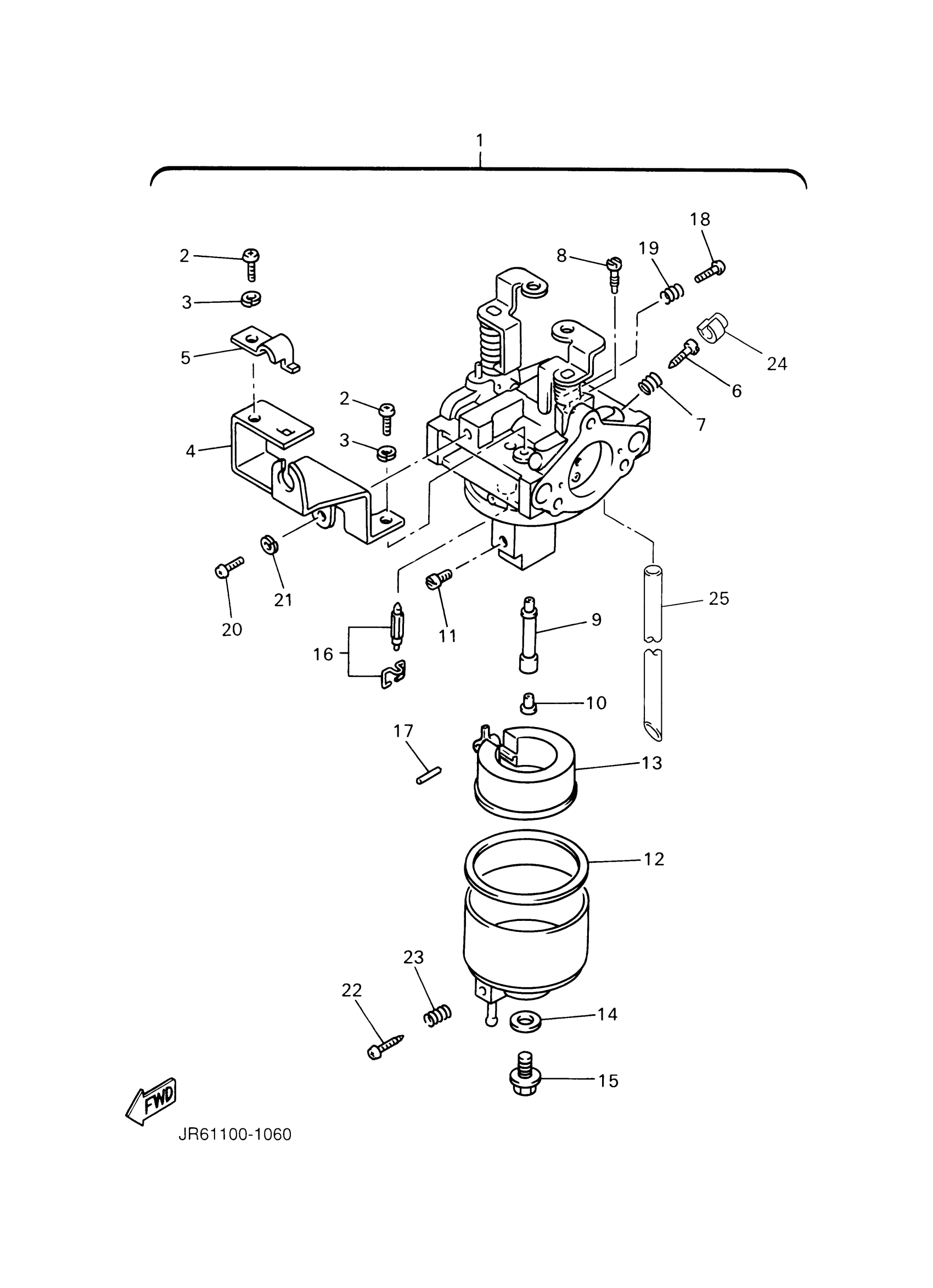

Yamaha YXP1000AT (PRO HAULER 1000) JW52 2005 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

JR6-14101-03-00

Unavailable

2

GASKET, EXHAUST

98507-05008-00

$3.55

3

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

4

. BRACKET 1

JN6-14291-00-00

Unavailable

5

. PLATE

J10-14227-00-00

Unavailable

6

SCREW, PILOT ADJUSTING

7NJ-14211-00-00

$6.99

7

SPRING, PILOT ADJUSTING

73A-14212-10-00

$6.99

8

. JET, PILOT (# 65)

732-14142-65-A0

Unavailable

9

. NOZZLE, MAIN

JN6-1495H-3B-00

Unavailable

10

PIPE, MAIN BREED

7RJ-1414G-00-00

$25.99

11

JET,MAIN #82.5

3G2-1423A-67-00

Unavailable

11

JET,MAIN #87.5

3G2-1423A-68-00

$15.49

11

. JET, MAIN (#838)

3G2-1423E-33-A0

Unavailable

12

GASKET, FLOAT CHAMBER

796-14184-00-00

$10.49

13

FLOAT

JN6-14185-00-00

$17.49

14

GASKET

127-14198-00-00

Unavailable

15

. BOLT, HOLDING

7R1-14162-00-00

Unavailable

16

. NEEDLE ASSY (WITH CLIP)

JN5-14150-00-00

Unavailable

17

PIN, FLOAT

22F-14186-00-00

Unavailable

18

SCREW, THROTTLE

1WG-14922-00-00

Unavailable

19

SPRING, PILOT ADJUSTING

73A-14212-10-00

$6.99

20

SCREW, PAN HEAD(6G8)

98507-04010-00

Unavailable

21

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

22

. PLUG, DRAIN

7E1-14191-00-00

Unavailable

23

SPRING, PILOT ADJUSTING

73A-14212-00-00

Unavailable

24

CAP

7LV-14118-00-00

Unavailable

25

. PIPE

1KT-14197-01-00

Unavailable
