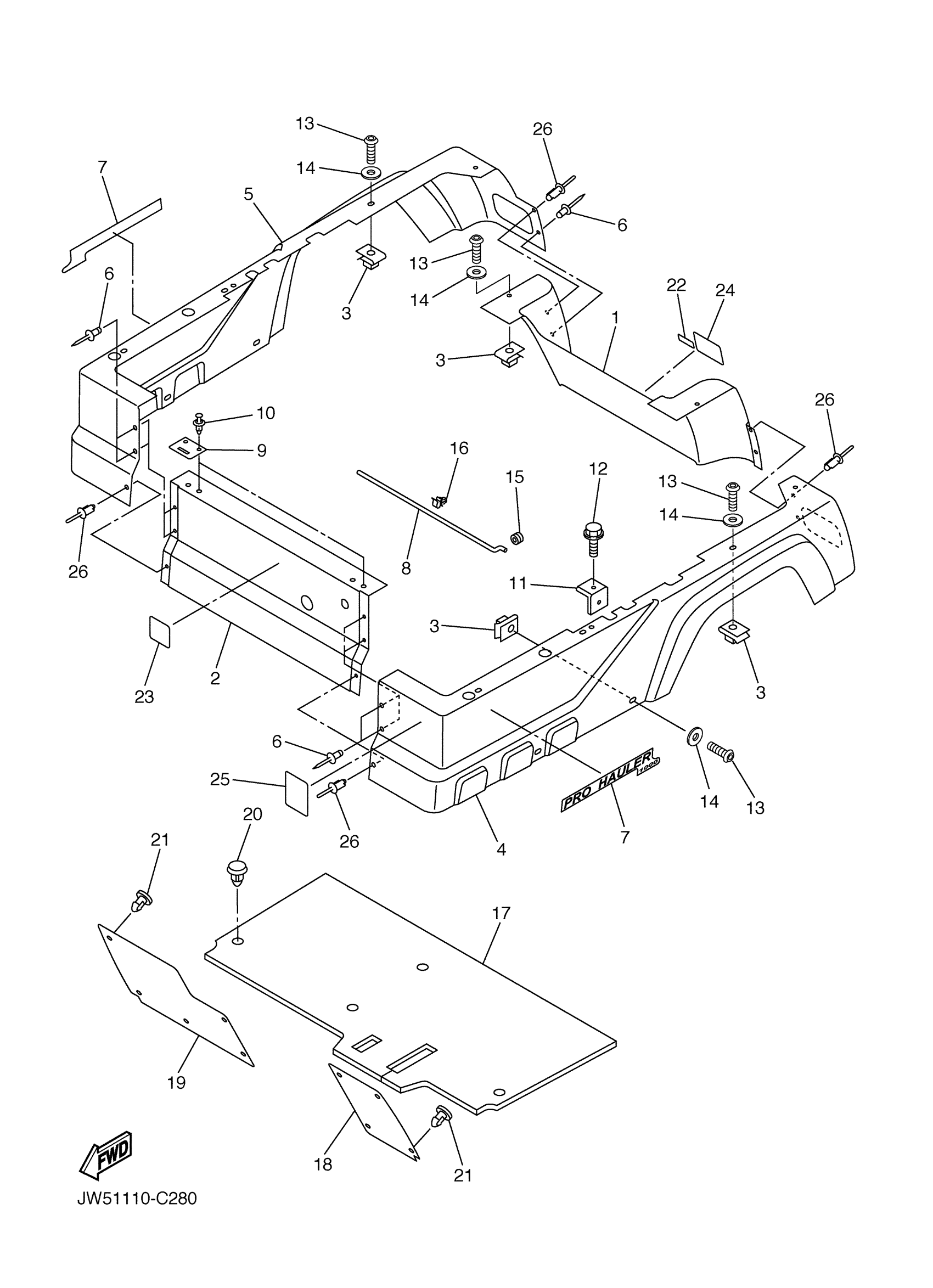

Yamaha YXP1000AT (PRO HAULER 1000) JW52 2005 BODY 2 Diagram

#

Description

Price

1

PANEL, REAR BODY

JW5-K8142-00-00

Unavailable

2

PANEL, INTERMEDIATE BODY

JW5-K8141-00-00

Unavailable

3

NUT, SPRING(JR2)

90183-06811-00

Unavailable

4

PANEL, BODY SHELL

JW5-K8111-00-00

Unavailable

5

PANEL, BODY SHELL

JW5-K8112-00-00

Unavailable

6

RIVET,BLIND

90267-36853-00

$2.77

7

EMBLEM 1

JW5-F1781-00-00

Unavailable

8

ROD, SEAT STOPPER

JJ3-K8226-00-00

Unavailable

9

HINGE, SEAT 2

JJ3-K8427-01-00

Unavailable

10

RIVET, BLIND

90267-64834-00

Unavailable

11

HOOK, BODY LOCK

JU9-K814H-00-00

Unavailable

12

BOLT, WITH WASHER

90119-08800-00

Unavailable

13

BOLT,HEX SKT HEAD

90111-06814-00

$3.76

14

WASHER, PLATE

90201-06863-00

Unavailable

15

GROMMET (462)

90480-13018-00

$8.49

16

CLAMP

90464-10814-00

Unavailable

17

MAT, MAIN FLOOR 3

JN6-K8233-10-00

Unavailable

18

MAT, MAIN FLOOR 1

JN6-K8231-01-00

Unavailable

19

MAT,MAIN FLOOR 2

JN6-K8232-10-00

Unavailable

20

RIVET

90269-08813-00

Unavailable

21

RIVET (739 BRAKE PEDAL)

90267-63047-00

Unavailable

22

LABEL, WARNING 5

JJ3-K7765-00-00

Unavailable

23

INDICATOR 1

JW1-K7741-01-00

Unavailable

24

LABEL, WARNING

JU5-K7768-00-00

Unavailable

25

LABEL, CAUTION

JU9-F1696-00-00

Unavailable

26

RIVET, BLIND

90267-62841-00

Unavailable
