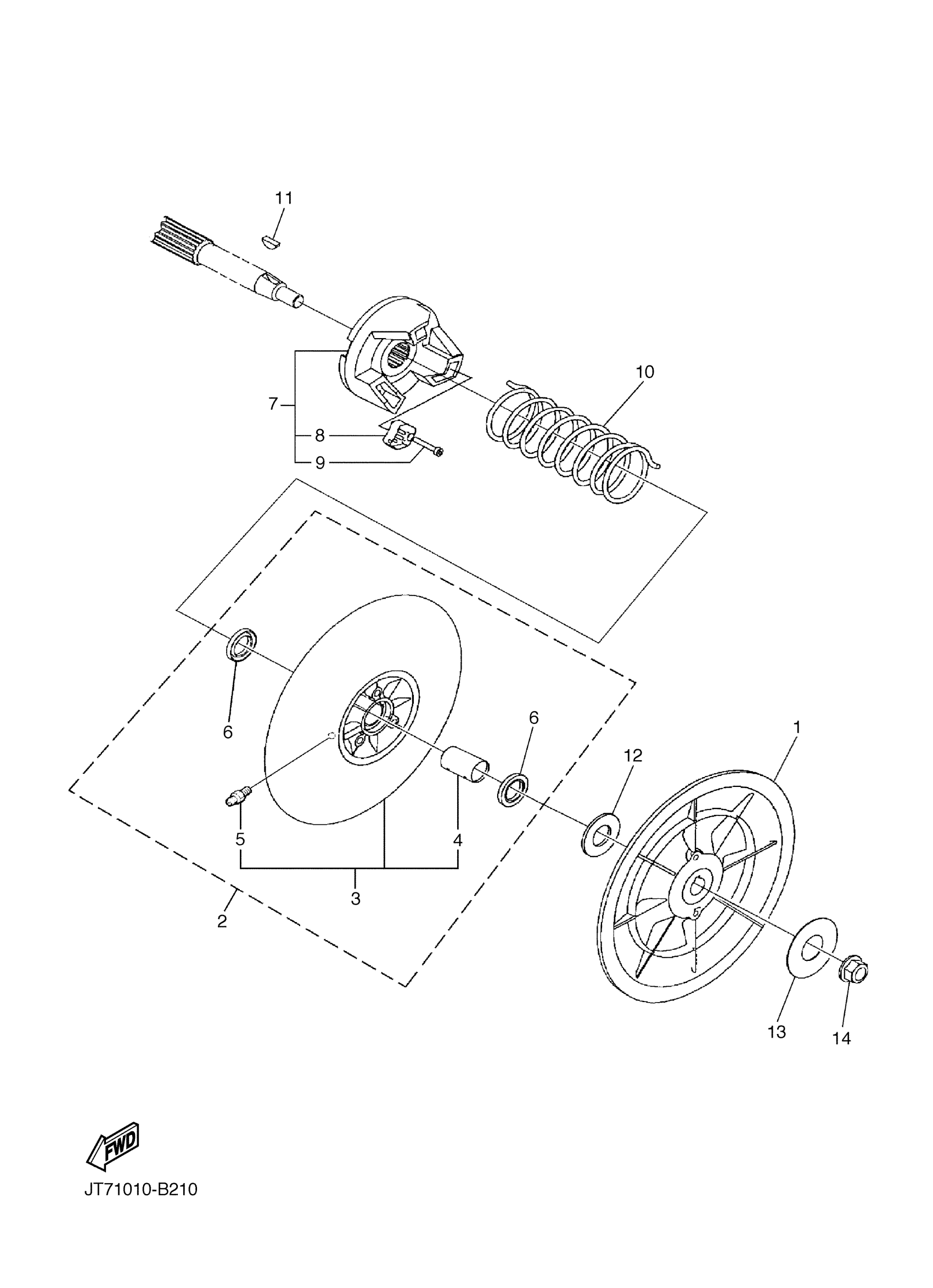

Yamaha YXP1000AS (PRO HAULER 1000) JW51 2004 SECONDARY SHEAVE Diagram

#

Description
Price

1

SECONDARY FIXED SHEAVE COMP

JN6-G6260-00-00

Unavailable

2

SEC SLIDING SHEAVE KIT

JN6-G6270-02-KT

Unavailable

3

. SECONDARY SLIDING SHEAVE

JN6-G6271-02-00

Unavailable

4

.. BUSH, BIMETAL FORMED

90384-20824-00

Unavailable

5

.. NIPPLE, GREASE

93700-06809-00

Unavailable

6

OIL SEAL

93109-20069-00

$10.49

7

SECONDARY SPRING SEAT COMP.

JN6-G6280-00-00

Unavailable

8

. SHOE, RAMP

JN6-E7688-00-00

Unavailable

9

. BOLT, HEXAGON SOCKET HEAD

90110-04834-00

Unavailable

10

SPRING, TORSION

90508-45849-00

Unavailable

11

KEY, WOODRUFF (737)

90280-05022-00

Unavailable

12

WASHER, PLATE

90202-20130-00

Unavailable

13

WASHER, PLATE

90201-128S5-00

Unavailable

14

NUT, U FLANGE

95607-12200-00

$5.60
