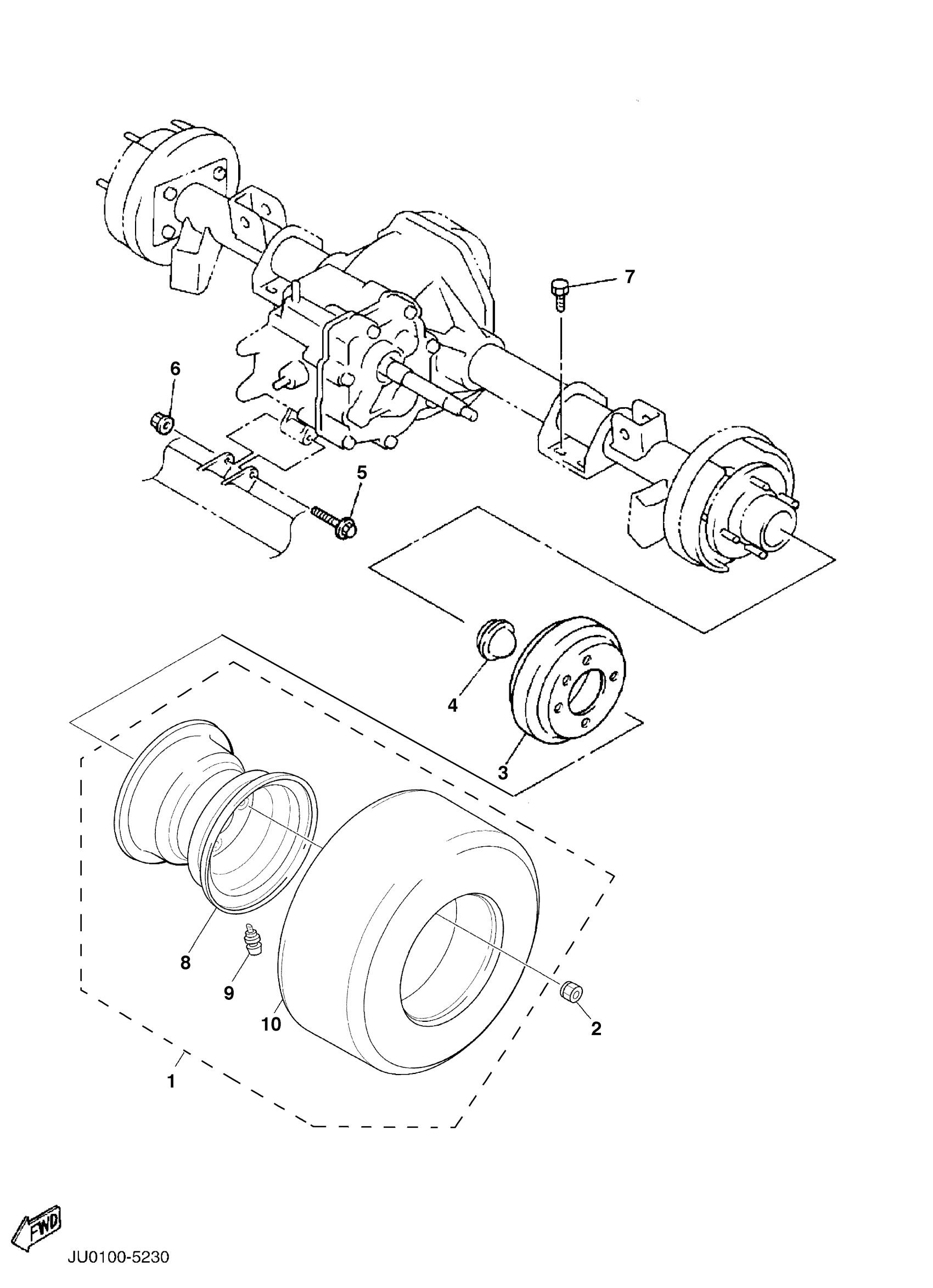

Yamaha YXP1000AS (PRO HAULER 1000) JW51 2004 REAR AXLE MOUNT WHEEL Diagram

#

Description

Price

1

WHEEL ASSY (22X11-10 6PLY 244)

JW5-F5300-00-00

Unavailable

2

NUT (J10)

90179-12262-00

$5.60

3

DRUM

JU9-G6521-00-00

Unavailable

4

COVER, HUB DUST

JN6-F5118-01-00

Unavailable

5

BOLT, FLANGE

95817-08075-00

$4.82

6

NUT, FLANGE(JN5)

95707-08500-00

$3.13

7

BOLT, WITH WASHER

9751P-10620-00

Unavailable

8

. RIM

JW5-F5390-00-00

Unavailable

9

VALVE STEM

93900-00815-00

Unavailable

10

. TIRE

94111-10802-00

Unavailable
