REAR ARM SUSPENSION

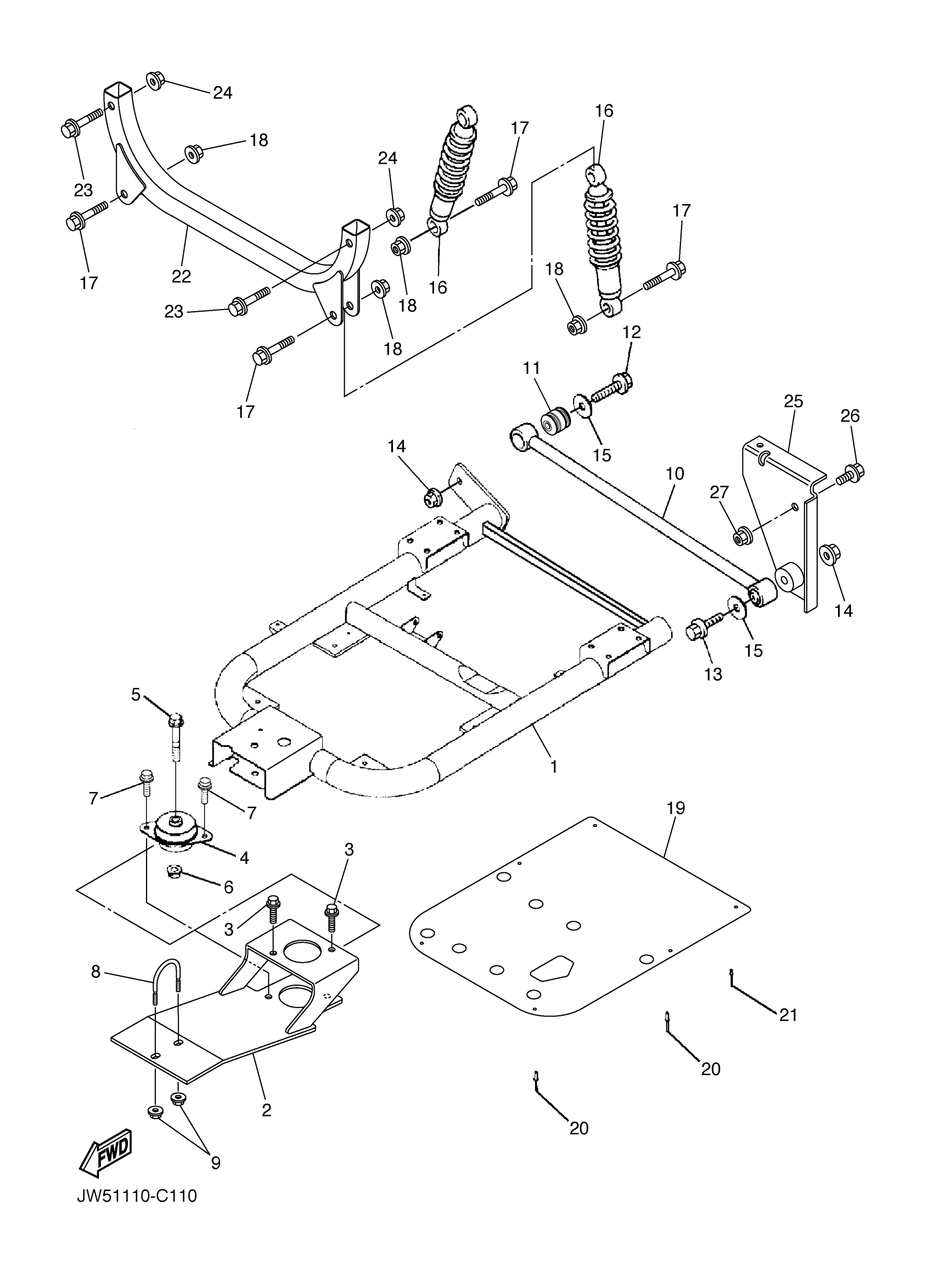

Yamaha YXP1000AS (PRO HAULER 1000) JW51 2004 REAR ARM SUSPENSION Diagram
#
Description
Price
1
REAR ARM COMP.
JN6-F2110-02-00
Unavailable
2
UNDER BRACKET COMP
JU9-F2403-10-00
Unavailable
3
BOLT, FLANGE
95817-10020-00
$8.49
4
BUSH 1
JN6-F2123-20-00
Unavailable
5
BOLT, FLANGE
90105-13800-00
Unavailable
6
NUT
90179-13800-00
Unavailable
7
BOLT, FLANGE
95817-10020-00
$8.49
8
BOLT 1
JU9-F1631-10-00
Unavailable
9
NUT, SELF-LOCKING(3KJ)
90185-10154-00
$8.49
10
ROD, CONN. ASSY
JN6-F2172-00-00
Unavailable
11
BUSH 2
JN6-F2124-10-00
Unavailable
12
BOLT, FLANGE(JN5)
95817-12065-00
Unavailable
13
BOLT, FLANGE
9581P-12090-00
Unavailable
14
NUT, SELF-LOCKING
95602-12200-00
$4.46
15
WASHER, PLATE
90201-128S4-00
$1.91
16
SHOCK ABSORBER
JR6-F2210-00-00
Unavailable
17
BOLT, FLANGE(JN5)
95817-12065-00
Unavailable
18
NUT, SELF LOCKING (1M1)
90185-12072-00
Unavailable
19
COVER, THRUST 1
JN6-F2128-01-00
Unavailable
20
RIVET, BLIND
90267-48850-00
Unavailable
21
RIVET, BLIND
90267-40851-00
Unavailable
22
SUPT. BRKT. ASSY.
JU9-F5920-01-00
Unavailable
23
BOLT, FLANGE(JN5)
95817-12065-00
Unavailable
24
NUT, SELF LOCKING (1M1)
90185-12072-00
Unavailable
25
BRKT., ROD PLATE 2
JU9-F253H-00-00
Unavailable
26
BOLT, FLANGE
9581P-12025-00
Unavailable
27
NUT, SELF-LOCKING
95602-12200-00
$4.46
