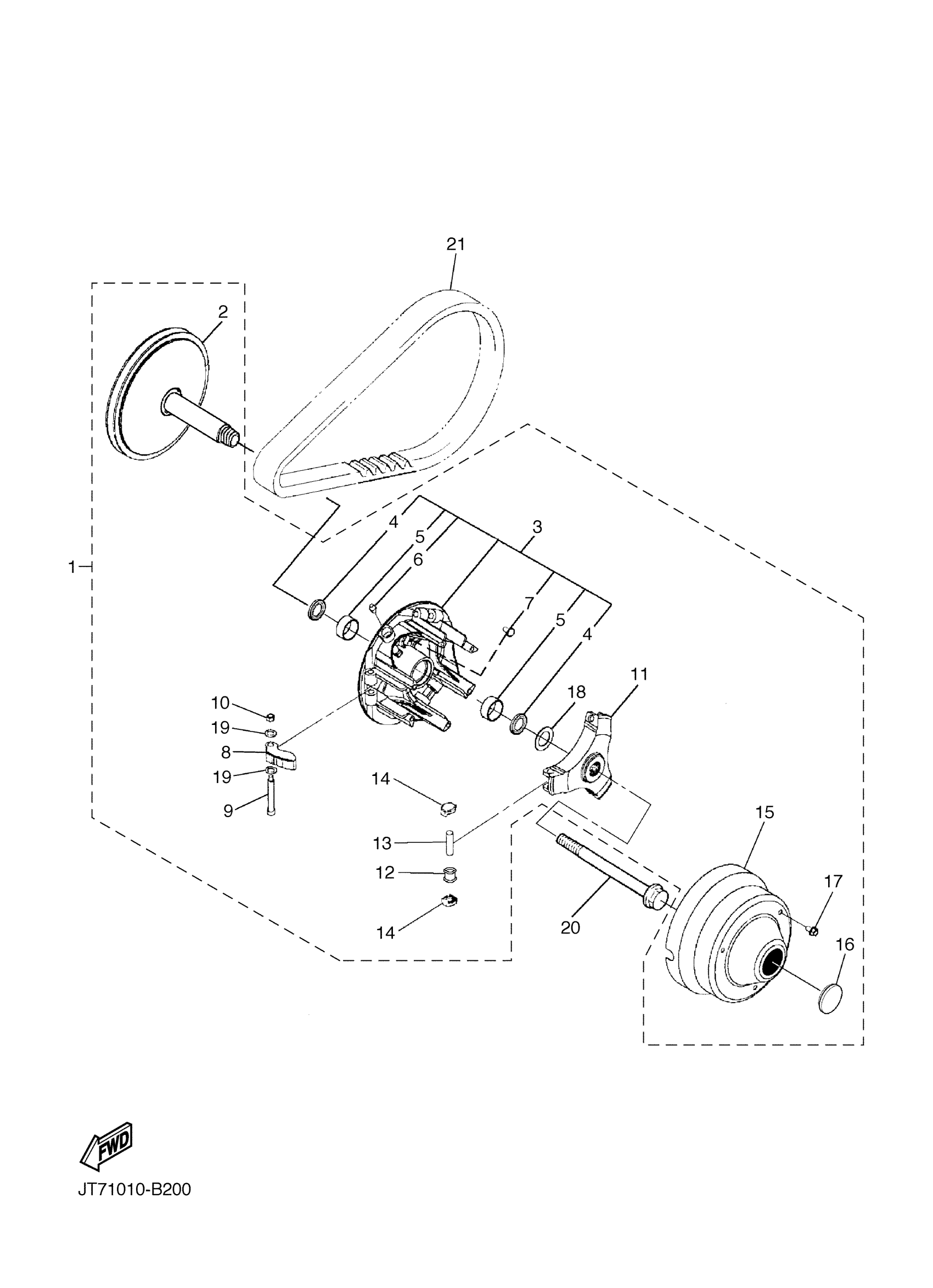

Yamaha YXP1000AS (PRO HAULER 1000) JW51 2004 PRIMARY SHEAVE Diagram

#

Description

Price

1

PRIMARY FIXED SHEAVE ASSY

JN6-G6201-04-00

Unavailable

2

. PRIMARY FIXED SHEAVE

JN6-G6210-00-00

Unavailable

3

. PRIMARY SLIDING SHEAVE

JN6-G6220-00-00

Unavailable

4

.. SEAL, OIL

93101-28831-00

Unavailable

5

.. BUSH, BIMETAL FORMED

90384-27823-00

Unavailable

6

.. NIPPLE, GREASE

93700-06810-00

Unavailable

7

.. PLUG

90338-04840-00

Unavailable

8

WEIGHT 1

JN6-G6232-00-00

Unavailable

9

. BOLT

90109-06860-00

Unavailable

10

. NUT, SELF-LOCKING

90185-06834-00

Unavailable

11

. SPIDER

JN6-G6251-01-00

Unavailable

12

. COLLAR, ROLLER

JN6-G6258-02-00

Unavailable

13

. PIN, DOWEL

93610-358A3-00

Unavailable

14

. SLIDER

JN6-G6253-00-00

Unavailable

15

. CAP

JU0-G6231-00-00

Unavailable

16

. COVER, DUST

JU0-G6297-00-00

Unavailable

17

. BOLT, FLANGE

90105-06861-00

Unavailable

18

. WASHER, PLATE

90201-228K5-00

Unavailable

19

. SHIM, THRUST

JN6-G621F-00-00

Unavailable

20

BOLT

JN6-G6249-10-00

Unavailable

21

BELT

J55-G6241-03-00

Unavailable
