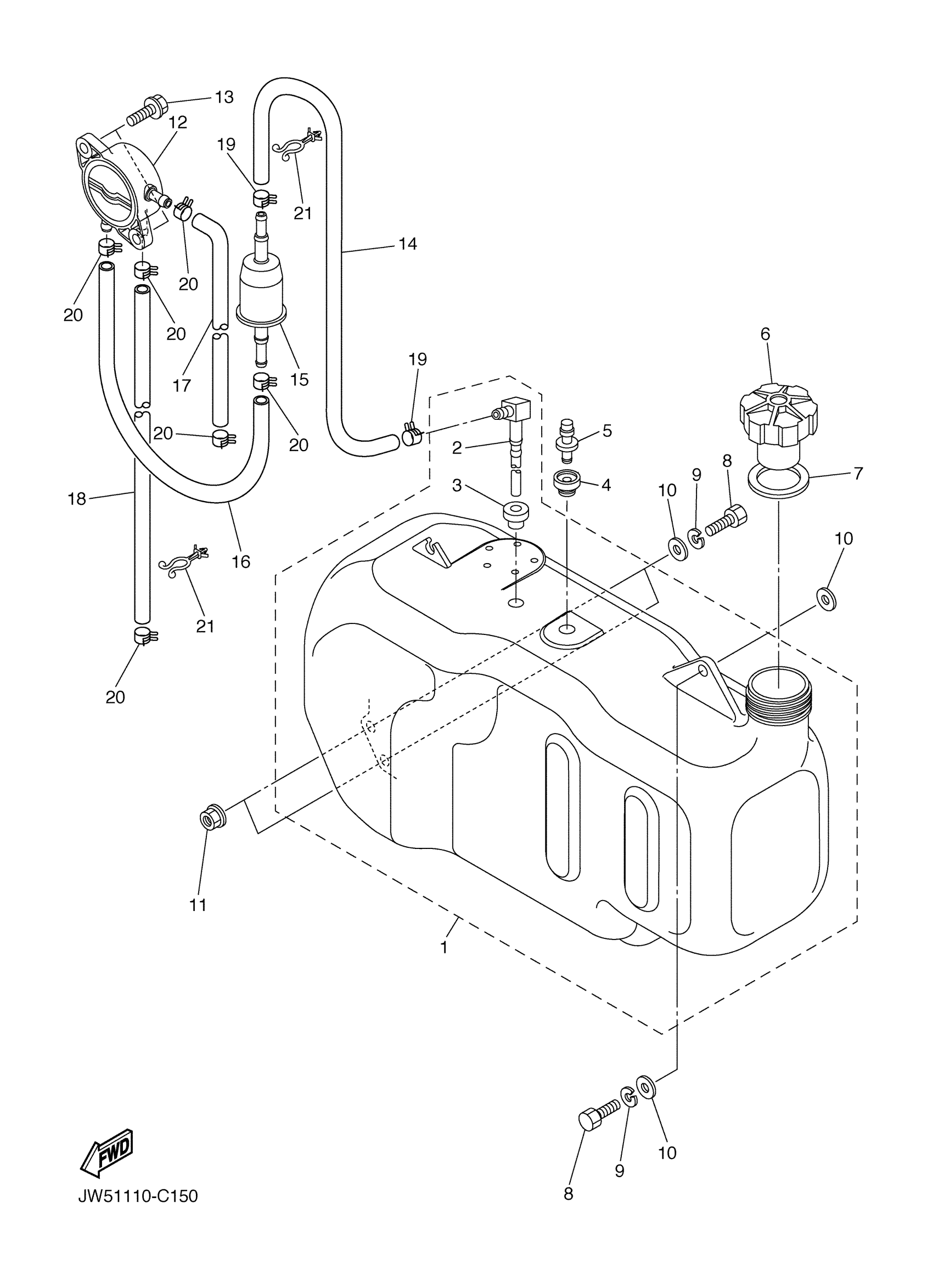

Yamaha YXP1000AS (PRO HAULER 1000) JW51 2004 FUEL TANK Diagram

#

Description

Price

1

FUEL TANK

JU5-F4111-02-00

Unavailable

2

FUEL PIPE JOINT

JU5-F4300-10-00

Unavailable

3

. GROMMET

JU5-F4375-00-00

Unavailable

4

GROMMET

J10-21773-00-00

Unavailable

5

RELEASE VALVE ASSEMBLY

J24-24460-01-00

Unavailable

6

BODY CAP ASSEMBLY

J24-24620-01-00

Unavailable

7

GASKET, CAP

J10-24612-00-00

Unavailable

8

BOLT, HEXAGON

97017-08025-00

$10.49

9

WASHER(JN5)

92907-08100-00

$8.49

10

WASHER, PLATE

90201-088S2-00

Unavailable

11

NUT, SELF-LOCKING

95602-08200-00

$3.20

12

FUEL PUMP ASY

JN6-F4410-11-00

Unavailable

13

BOLT, SPECIAL

JN6-F3394-00-00

Unavailable

14

PIPE 2

JU5-F4312-10-00

Unavailable

15

FILTER ASSY

JN6-F4560-00-00

Unavailable

16

PIPE, FUEL 1

JW1-F4311-00-00

Unavailable

17

PIPE 3

JU9-F4313-20-00

Unavailable

18

PIPE 4

JU7-F4314-01-00

Unavailable

19

CLIP,SCISSOR

90467-12845-00

Unavailable

20

CLIP

90467-10846-00

Unavailable

21

CLAMP

90464-11816-00

Unavailable
