- YXP1000AS (PRO HAULER 1000) JW51 2004
FRONT SUSPENSION WHEEL

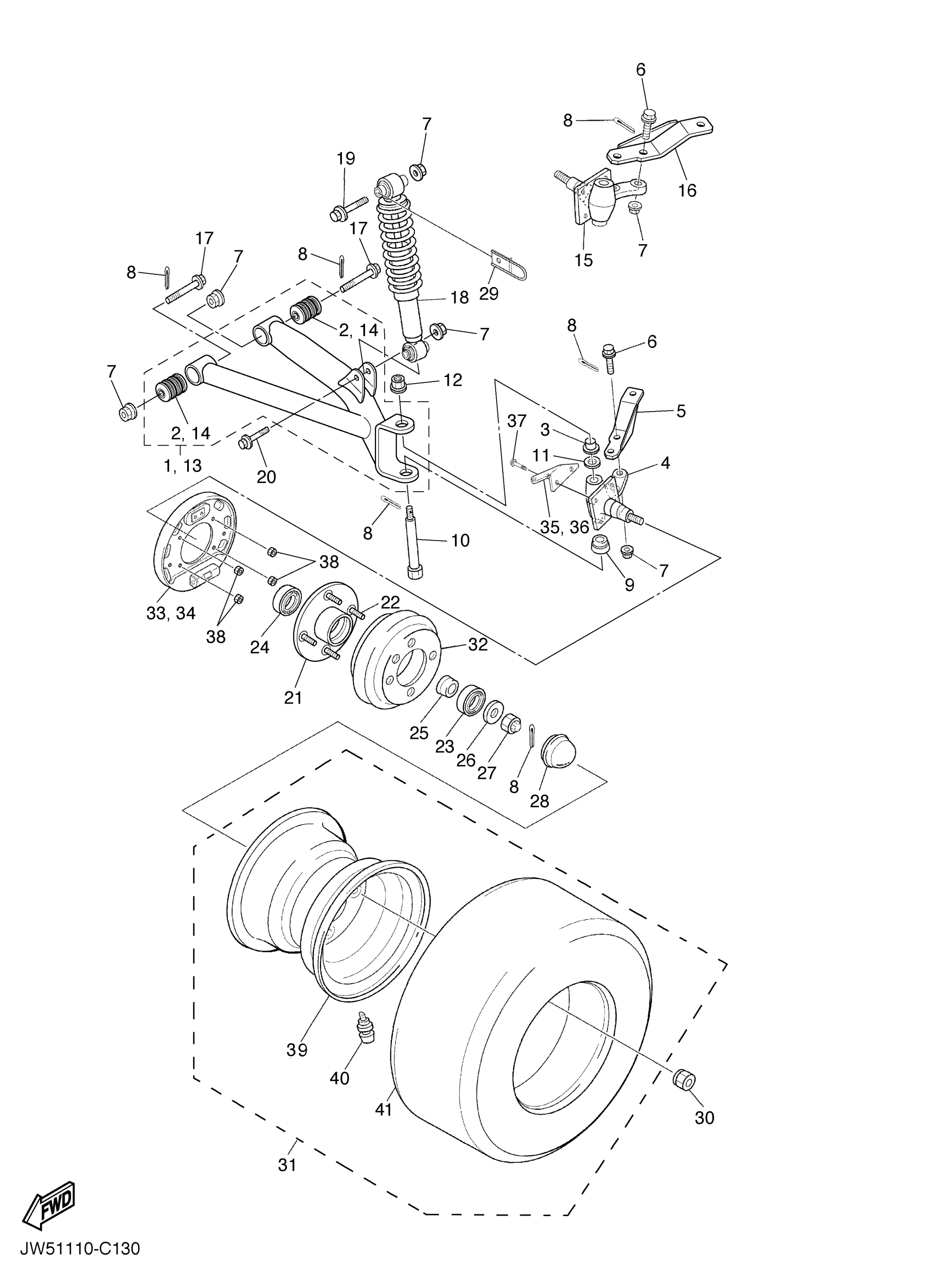

Yamaha YXP1000AS (PRO HAULER 1000) JW51 2004 FRONT SUSPENSION WHEEL Diagram
#
1
FRONT LOWER ARM COMP. (LEFT)
JU9-F3570-00-00
Unavailable
2
BUSH
JN6-F3526-10-00
Unavailable
3
BUSH, BIMETAL
90384-15825-00
Unavailable
4
STEERING KNUCKLE ASSY (LEFT)
JR6-F3501-11-00
Unavailable
5
ARM, KNUCKLE 1
JU9-F3512-00-00
Unavailable
6
BOLT, FLANGE
90105-10853-00
Unavailable
7
NUT, SELF-LOCKING(JN5)
95607-10200-00
$4.19
8
PIN, COTTER
91490-25020-00
$3.19
9
SEAL, DUST
J38-23527-00-00
Unavailable
10
PIN, STEERING KNUCKLE
JR6-F3516-00-00
Unavailable
11
WASHER, PLATE
90201-158S6-00
Unavailable
12
NUT, SELF-LOCKING(3KJ)
90185-10154-00
$8.49
13
FRONT LOWER ARM COMP. (RIGHT)
JU9-F3580-00-00
Unavailable
14
BUSH
JN6-F3526-10-00
Unavailable
15
STEERING KNUCKLE ASSY (RIGHT)
JR6-F3502-11-00
Unavailable
16
ARM, KNUCKLE 2
JU9-F3522-00-00
Unavailable
17
BOLT, FLANGE
90105-10854-00
Unavailable
18
SHOCK ABSORBER ASSY
JR6-F3350-00-00
Unavailable
19
BOLT,FLANGE
95817-10065-00
Unavailable
20
BOLT, FLANGE(87Y)
95817-10055-00
Unavailable
21
HUB ASSY, FRONT
JW3-F5110-01-00
Unavailable
22
BOLT, SERRATION
90114-12805-00
Unavailable
23
BEARING (J17)
93306-20437-00
Unavailable
24
BEARING
93306-00511-00
Unavailable
25
COLLAR(J41)
90387-241M7-00
Unavailable
26
WASHER, CONICAL SPRING
90208-14801-00
Unavailable
27
NUT, U(4JT)
95617-14100-00
Unavailable
28
COVER, HUB DUST
JN6-F5118-01-00
Unavailable
29
GUIDE, WIRE
JR6-F1339-01-00
Unavailable
30
NUT (J10)
90179-12262-00
Unavailable
31
WHEEL ASSY (22X11-10 6PLY 244)
JW5-F5100-00-00
Unavailable
32
DRUM
JU9-G6521-00-00
Unavailable
33
.. BACKING PLATE ASSY 2
JN6-F7290-03-00
Unavailable
34
.. BACKING PLATE ASSY 1
JN6-F7280-03-00
Unavailable
35
BRACKET 1
JR6-F7263-01-00
Unavailable
36
BRACKET 2
JR6-F7264-01-00
Unavailable
37
BOLT, FLANGE
95022-08025-00
Unavailable
38
NUT, SELF-LOCKING
95602-08200-00
Unavailable
39
. RIM
JW5-F5180-00-00
Unavailable
40
VALVE STEM
93900-00815-00
Unavailable
41
. TIRE
94111-10802-00
Unavailable
