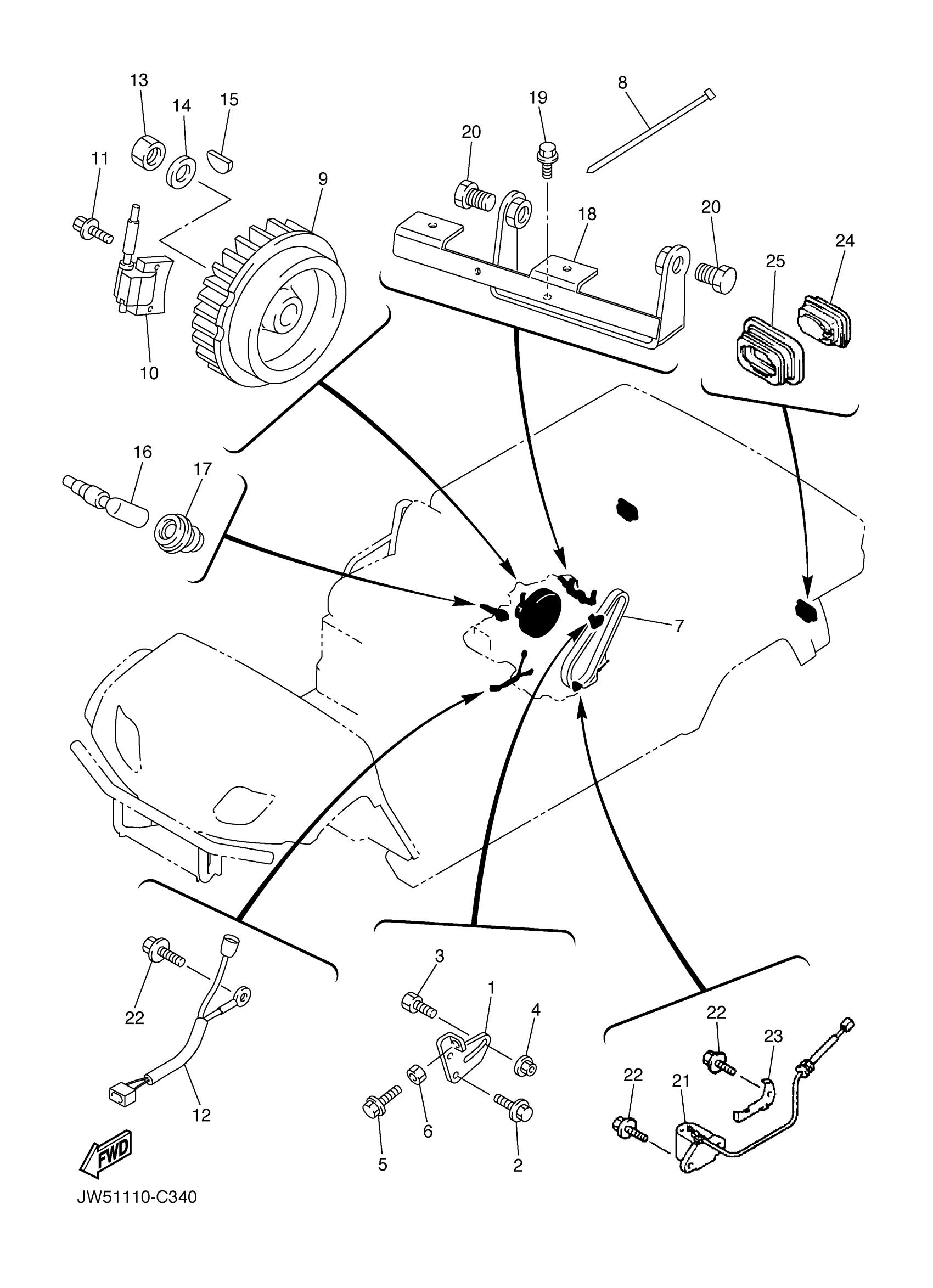

Yamaha YXP1000AS (PRO HAULER 1000) JW51 2004 ELECTRICAL 1 Diagram

#

Description
Price

1

TENSIONER ASSY

JN6-H1170-01-00

Unavailable

2

BOLT, FLANGE

9582P-08020-00

Unavailable

3

BOLT

90109-08827-00

Unavailable

4

NUT, FLANGE(JN5)

95707-08500-00

$3.13

5

BOLT (3Y2)

90101-06478-00

$4.15

6

NUT(6TA)

95317-06600-00

$3.55

7

BELT

JN6-H1173-09-00

Unavailable

8

CLAMP(JN6)

90464-09823-00

$5.60

9

ROTOR ASSY

JR7-85650-00-00

Unavailable

10

T.C.I. UNIT ASSY

J0A-85640-00-00

Unavailable

11

BOLT, FLANGE

95817-06025-00

Unavailable

12

WIRE, SUB-LEAD

JN6-82318-00-00

Unavailable

13

NUT,HEXAGON

95317-18600-00

Unavailable

14

WASHER, PLATE (1J7)

90201-18620-00

$4.72

15

KEY,WOODRUFF

90280-04052-00

$7.49

16

PLUG CAP ASSY

JN6-82370-00-00

Unavailable

17

SEAL, PLUG CAP

7CP-H2372-00-00

Unavailable

18

BRKT,STARTER GEN

JN6-H1171-11-00

Unavailable

19

BOLT, FLANGE

9582P-08020-00

Unavailable

20

BOLT, FLANGE

9581P-12025-00

Unavailable

21

OIL LEVEL GAUGE ASSY

JN6-85720-13-00

Unavailable

22

BOLT, FLANGE

95817-06012-00

Unavailable

23

CLAMP

JT0-85724-00-00

Unavailable

24

TAILLIGHT ASSY

JU5-H4700-00-00

Unavailable

25

GROMMET

JU5-H4718-00-00

Unavailable
