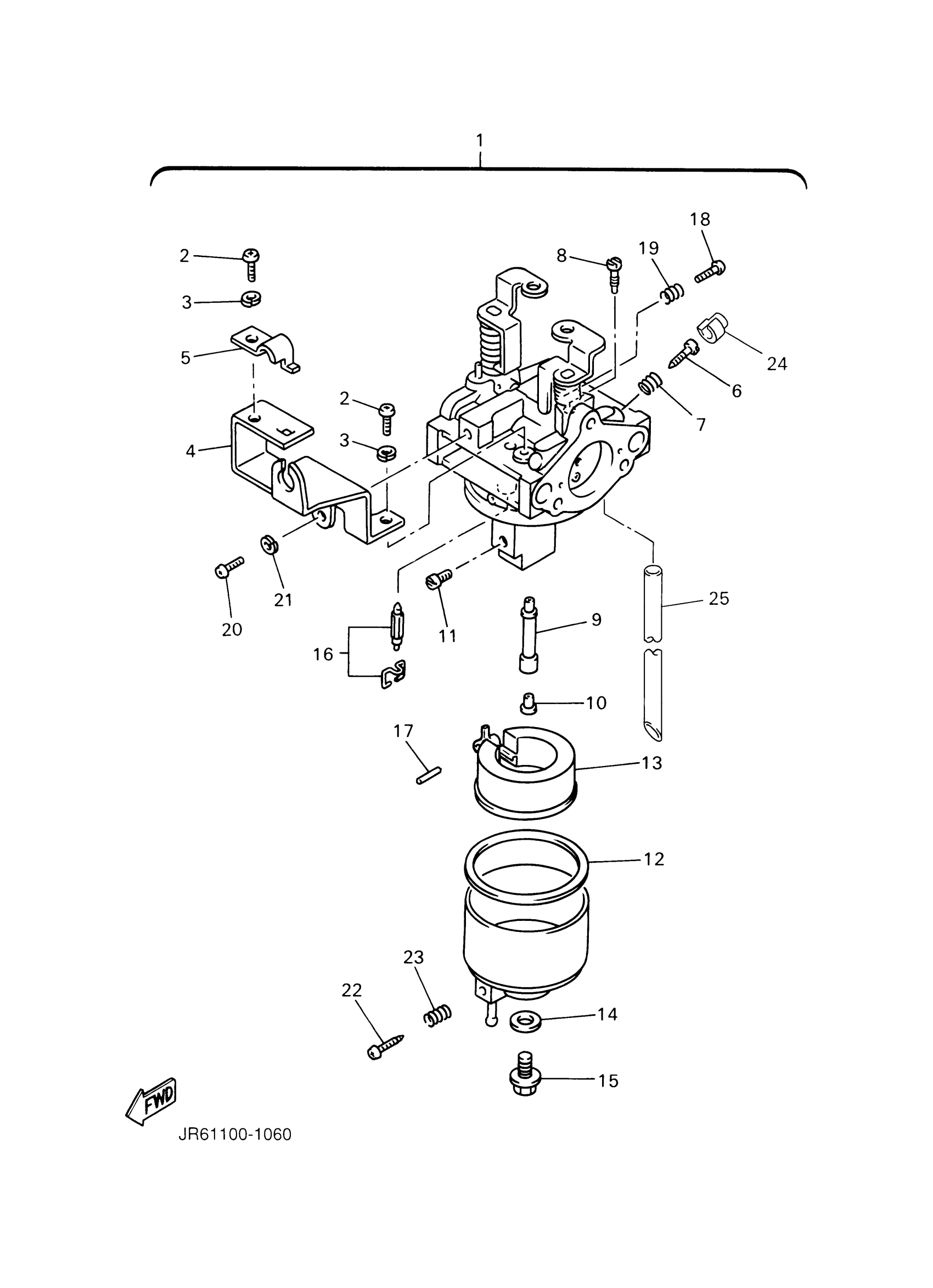

Yamaha YXP1000AS (PRO HAULER 1000) JW51 2004 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

JR6-14101-03-00

Unavailable

2

GASKET, EXHAUST

98507-05008-00

$2.52

3

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

4

. BRACKET 1

JN6-14291-00-00

Unavailable

5

. PLATE

J10-14227-00-00

$10.49

6

SCREW, PILOT ADJUSTING

7NJ-14211-00-00

$6.76

7

SPRING, PILOT ADJUSTING

73A-14212-10-00

$6.11

8

. JET, PILOT (# 65)

732-14142-65-A0

$6.89

9

. NOZZLE, MAIN

JN6-1495H-3B-00

$22.22

10

PIPE, MAIN BREED

7RJ-1414G-00-00

$25.11

11

JET,MAIN #82.5

3G2-1423A-67-00

Unavailable

11

JET,MAIN #87.5

3G2-1423A-68-00

$12.53

11

. JET, MAIN (#838)

3G2-1423E-33-A0

$9.83

12

GASKET, FLOAT CHAMBER

796-14184-00-00

$6.82

13

FLOAT

JN6-14185-00-00

$17.49

14

GASKET

127-14198-00-00

Unavailable

15

. BOLT, HOLDING

7R1-14162-00-00

$8.23

16

. NEEDLE ASSY (WITH CLIP)

JN5-14150-00-00

$23.99

17

PIN, FLOAT

22F-14186-00-00

Unavailable

18

SCREW, THROTTLE

1WG-14922-00-00

Unavailable

19

SPRING, PILOT ADJUSTING

73A-14212-10-00

$6.11

20

SCREW, PAN HEAD(6G8)

98507-04010-00

Unavailable

21

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable

22

. PLUG, DRAIN

7E1-14191-00-00

$6.11

23

SPRING, PILOT ADJUSTING

73A-14212-00-00

Unavailable

24

CAP

7LV-14118-00-00

Unavailable

25

. PIPE

1KT-14197-01-00

Unavailable
