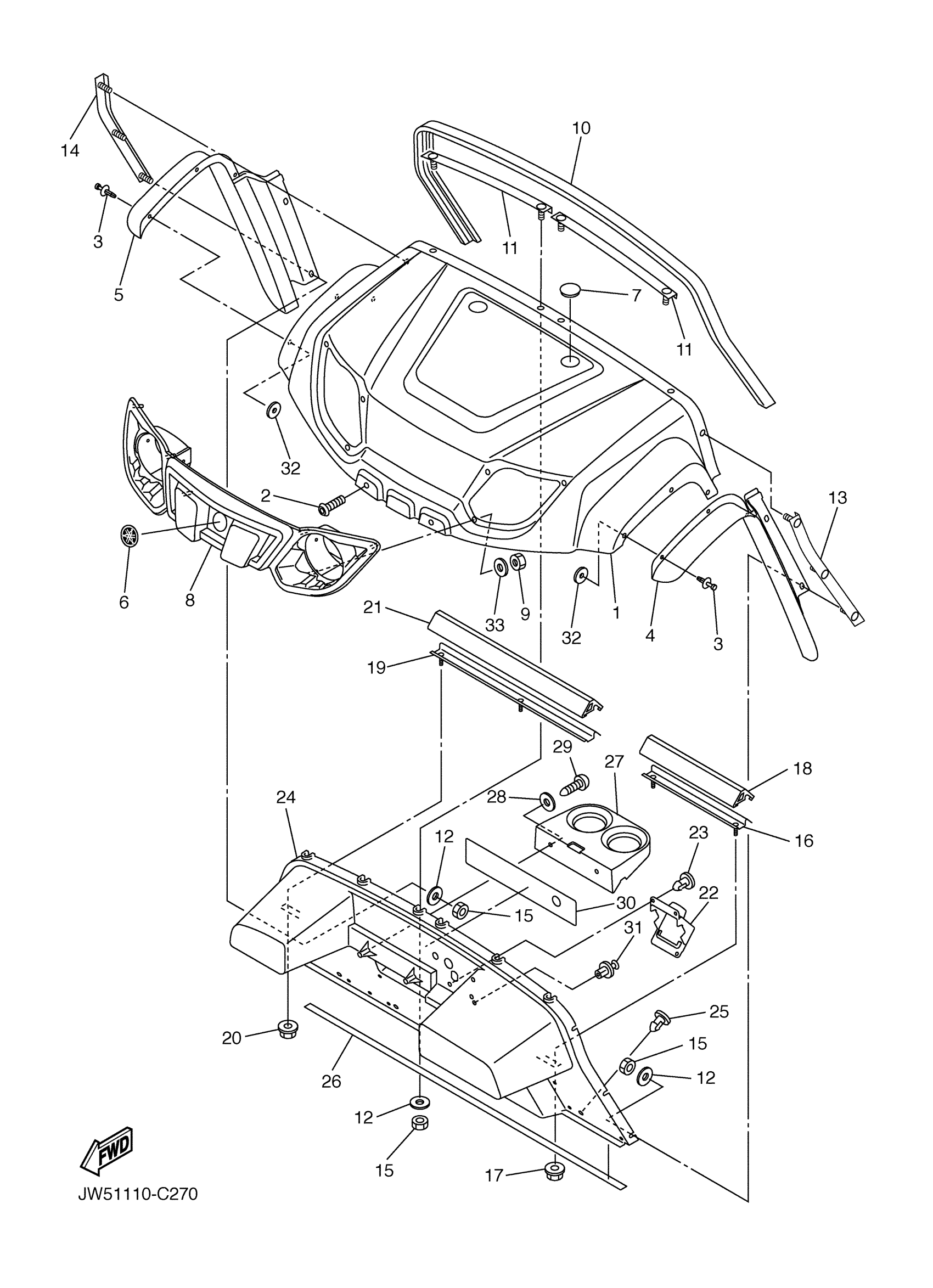

Yamaha YXP1000AS (PRO HAULER 1000) JW51 2004 BODY Diagram
#
1
COWL, FRONT
JW5-K8115-00-00
Unavailable
2
BOLT,HEX SKT HEAD
90111-06814-00
$3.76
3
RIVET,BLIND
90267-36853-00
$2.77
4
FENDER, OVER
JW5-F1551-00-00
Unavailable
5
FENDER, OVER 2
JW5-F1555-00-00
Unavailable
6
TUNING FORK MARK
5FU-F175B-01-00
$14.99
7
CAP, PROTECTOR
JN3-K818E-00-00
Unavailable
8
GRILLE, FRONT
JW4-K8217-00-00
Unavailable
9
NUT, S/L FLANGE
95607-05200-00
$9.49
10
PROTECTOR 1
JF2-K811V-00-00
Unavailable
11
PLATE,BODY PROT 1
JU0-K8261-01-00
Unavailable
12
WASHER, PLATE
90201-06829-00
Unavailable
13
PLATE,BODY PROT 2
JF2-K8262-02-00
Unavailable
14
PLATE,BODY PROT 3
JF2-K8263-02-00
Unavailable
15
NUT, SELF-LOCKING(JR2)
90185-06836-00
$2.76
16
PLATE, BODY PROTECTOR
JF2-K8264-00-00
Unavailable
17
NUT, U FLANGE
95604-06200-00
Unavailable
18
PROTECTOR 2
JF2-K811W-00-00
Unavailable
19
PLATE, BODY PROTECTOR 5
JF2-K8265-00-00
Unavailable
20
NUT, U FLANGE
95604-06200-00
Unavailable
21
PROTECTOR 3
JF2-K811X-00-00
Unavailable
22
COVER, HOLE
JF2-78273-01-00
Unavailable
23
RIVET(J41)
90269-11042-00
Unavailable
24
PANEL, FRONT
JF2-K8114-03-00
Unavailable
25
RIVET
90269-08069-00
Unavailable
26
SEAL, FRONT STORAGE
JN3-K815G-00-00
Unavailable
27
HOLDER, BEVERAGE
JF2-K835E-00-00
Unavailable
28
WASHER, PLATE
90201-06863-00
Unavailable
29
SCREW, PAN TAP.4
97707-60130-00
Unavailable
30
LABEL, WARNING 1
JU9-K7761-00-00
Unavailable
31
RIVET
90269-08069-00
Unavailable
32
WASHER,PLATE
90201-068M4-00
Unavailable
33
WASHER, PLATE
90201-05800-00
Unavailable
