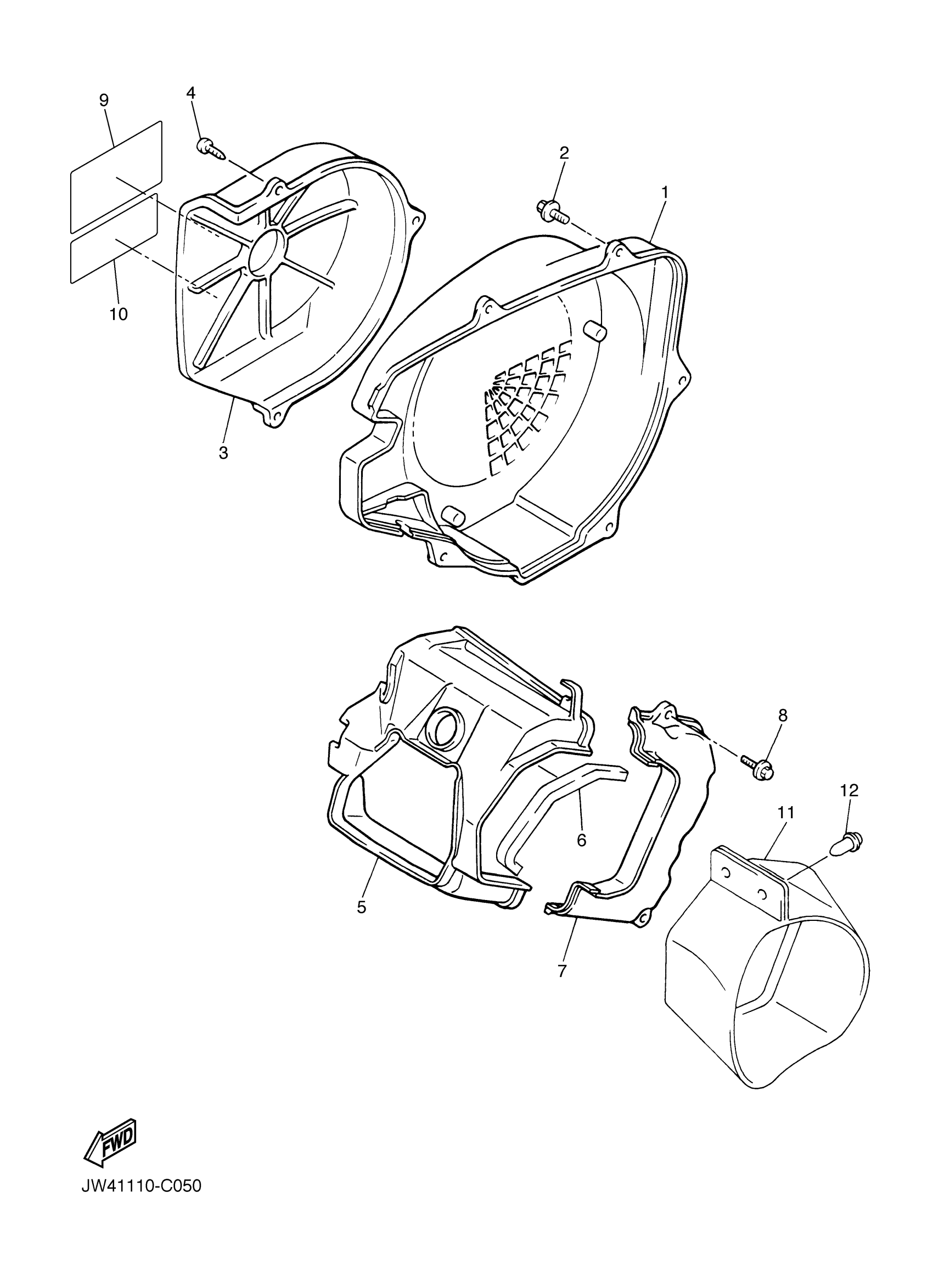

Yamaha YXP1000AS (PRO HAULER 1000) JW51 2004 AIR SHROUD FAN Diagram

#

Description
Price

1

CASE, FAN

JN6-12621-02-00

$26.20

2

BOLT, FLANGE

95817-06020-00

$2.52

3

COVER, FAN CASE

JN6-12616-00-00

$14.99

4

SCREW, TAPPING(JA3)

97707-60520-00

$6.22

5

AIR SHROUD, CYLINDER 1

JN6-12651-01-00

Unavailable

6

DAMPER, AIR SHROUD 1

JR7-12658-00-00

$9.08

7

AIR SHROUD, CYLINDER 2

JN6-12652-00-00

$47.99

8

BOLT, FLANGE

95817-06020-00

$2.52

9

PLATE, EPA 2 (CALIFORNIA)

JR6-2179R-01-00

Unavailable

10

LABEL

7UH-2111F-00-00

$2.80

11

DUCT, 1

JN6-E2691-00-00

Unavailable

12

RIVET

90269-08813-00

$0.50
