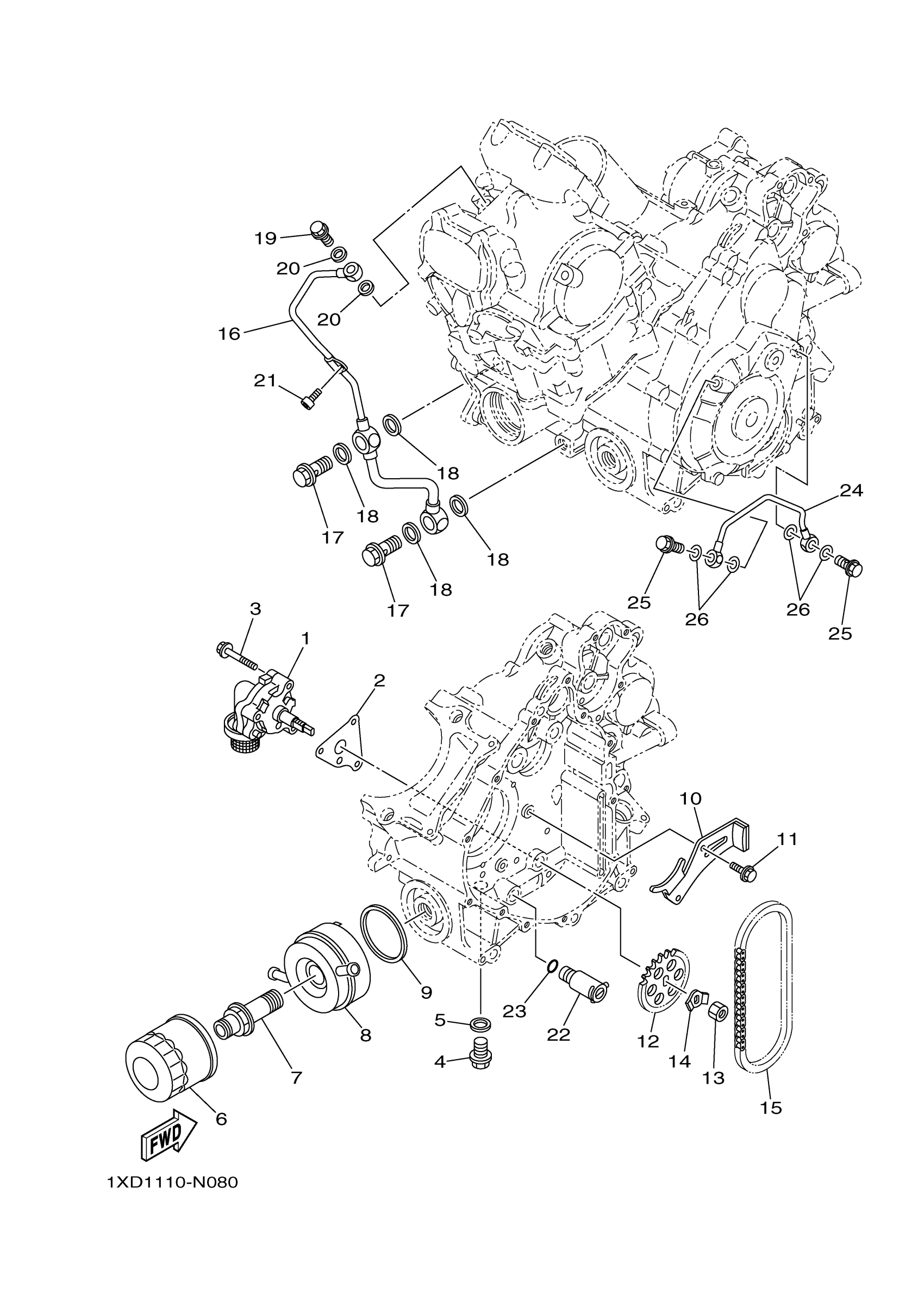

Yamaha YXM70VPXJR (VIKING EPS) B5F11 2018 OIL PUMP Diagram
#
Description
Price
1
OIL PUMP ASSY
3B4-13300-00-00
$191.99
2
GASKET, PUMP COVER
3B4-13329-00-00
$6.99
3
BOLT, FLANGE
95022-06040-00
$3.45
4
PLUG, STRAIGHT SCREW(3FA)
90340-14132-00
$3.98
5
GASKET
214-11198-01-00
$3.17
6
ELEMENT ASSY, OIL
5GH-13440-90-00
Unavailable
7
BOLT, UNION
90401-20009-00
Unavailable
8
OIL COOLER ASSY
1XD-13470-00-00
$246.99
9
GASKET
1XD-13475-00-00
$9.99
10
GUIDE, STOPPER 3
3B4-12221-01-00
$15.49
11
BOLT, FLANGE
95022-06020-00
$3.62
12
SPROCKET, DRIVEN
3B4-13355-00-00
$37.99
13
NUT(624)
95380-10600-00
$3.50
14
WASHER, LOCK
90215-10008-00
$3.35
15
CHAIN
94580-31074-00
$25.99
16
PIPE, DELIVERY 2
3B4-13171-00-00
Unavailable
17
BOLT, UNION(1YW)
90401-14118-00
Unavailable
18
GASKET 256131670000
90430-14043-00
Unavailable
19
BOLT, UNION
90401-10024-00
Unavailable
20
GASKET
90430-10188-00
Unavailable
21
BOLT,SOCKET
91317-06012-00
Unavailable
22
RELIEF VALVE ASSY
25G-13490-00-00
Unavailable
23
O-RING (611)
93210-10096-00
Unavailable
24
PIPE, DELIVERY 1
28P-13161-00-00
Unavailable
25
BOLT, UNION
90401-08006-00
Unavailable
26
GASKET
90430-08119-00
Unavailable
