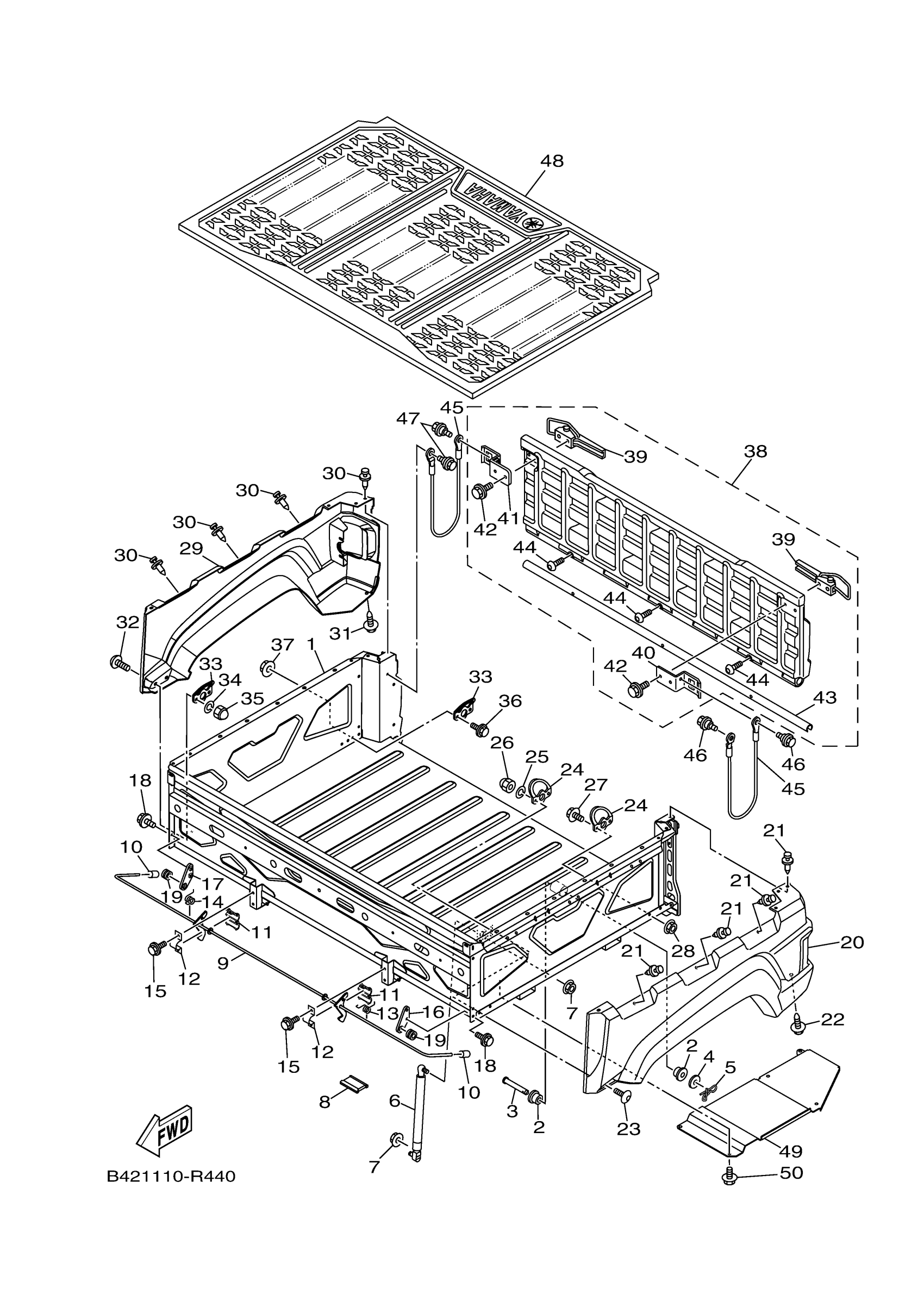

Yamaha YXM70VPXJR (VIKING EPS) B5F11 2018 CARRIER Diagram
#
1
CARRIER BOX ASSY
B42-F4850-00-00
Unavailable
2
BUSH 1
JW6-F2123-00-00
Unavailable
3
PIN, TAPER
1XD-F7827-00-00
Unavailable
4
WASHER PLATE 611441260000
90201-14212-00
$8.49
5
CLIP(3YF)
90468-16191-00
$8.49
6
DAMPER 1
2PG-F8415-00-00
$28.99
7
NUT, SELF-LOCKING
95602-08200-00
$3.20
8
DAMPER
B42-F113B-00-00
$3.76
9
LATCH ASSY
1XD-K7180-00-00
$51.99
10
CAP, PROTECTOR END 4
5UG-K818M-00-00
$2.39
11
BUSHING
1XD-F4571-00-00
$1.38
12
HOLDER
1XD-F839N-00-00
$1.96
13
SPRING
1XD-F4758-00-00
Unavailable
14
SPRING
1XD-F4758-10-00
Unavailable
15
BOLT, FLANGE
95812-06010-00
$2.98
16
BRACKET, TRUNK LOCK
1XD-F849N-00-00
Unavailable
17
BRACKET, TRUNK LOCK
1XD-F849N-10-00
Unavailable
18
BOLT, FLANGE
95812-06010-00
$2.98
19
GROMMET(2GH)
90480-12475-00
Unavailable
20
PANEL, REAR FENDER
1XD-K8191-00-00
Unavailable
21
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
22
BOLT, WITH WASHER
90119-06226-00
Unavailable
23
BOLT,HEX SKT HEAD
90111-06814-00
Unavailable
24
HOOK (TIE DOWN HOOK RHINO BED)
5UG-F4867-00-00
Unavailable
25
WASHER, SPRING
92995-06100-00
Unavailable
26
NUT (J17)
95380-06800-00
Unavailable
27
BOLT, FLANGE
95817-06016-00
Unavailable
28
NUT, U FLANGE
95604-06200-00
Unavailable
29
PANEL, REAR FENDER
1XD-K8192-00-00
Unavailable
30
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
31
BOLT, WITH WASHER
90119-06226-00
Unavailable
32
BOLT,HEX SKT HEAD
90111-06814-00
Unavailable
33
HOOK (TIE DOWN HOOK RHINO BED)
5UG-F4867-00-00
Unavailable
34
WASHER, SPRING
92995-06100-00
Unavailable
35
NUT (J17)
95380-06800-00
Unavailable
36
BOLT, FLANGE
95817-06016-00
Unavailable
37
NUT, U FLANGE
95604-06200-00
Unavailable
38
REAR STORAGE LID C
1XD-K810N-00-00
Unavailable
39
LATCH
5UG-F389E-00-00
Unavailable
40
STOPPER 1
1XD-F83D1-00-00
Unavailable
41
STOPPER 2
1XD-F83D2-00-00
Unavailable
42
95812-06035
95812-06035-00
Unavailable
43
HINGE 2
1XD-F463F-00-00
Unavailable
44
. SCREW
90149-06846-00
Unavailable
45
HOLDER, CABLE
5UG-K7195-10-00
Unavailable
46
BOLT
90109-06212-00
Unavailable
47
BOLT
90109-06212-00
Unavailable
48
MAT, REAR FLOOR
1XD-K8241-10-00
Unavailable
49
INSULATOR, MOUNTIN
1XD-F2891-00-00
Unavailable
50
BOLT, FLANGE
90105-06831-00
Unavailable
