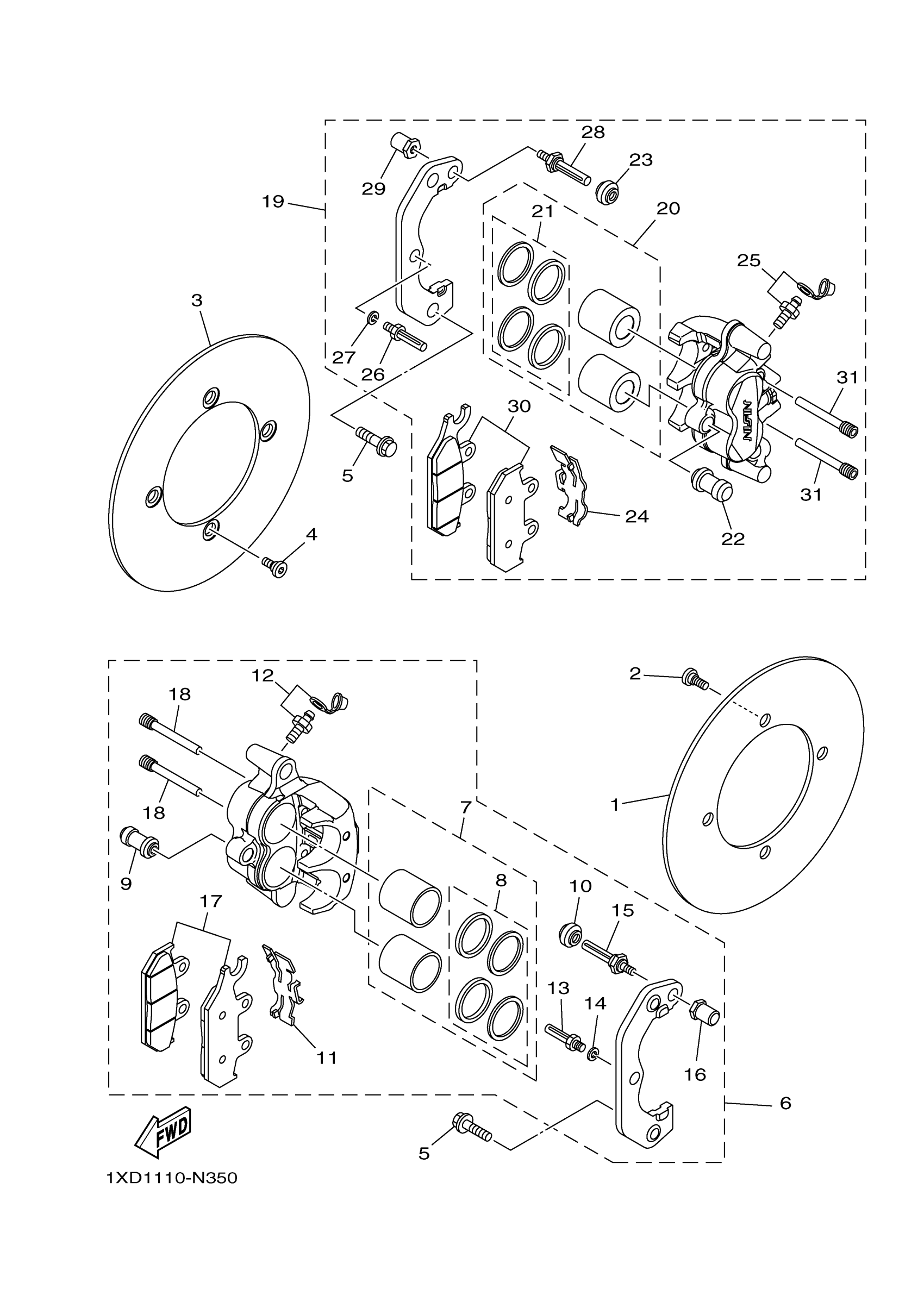

Yamaha YXM70VPXHR (VIKING EPS) B42D1 2017 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE (LEFT)

1XD-F582T-00-00

$53.99

2

BOLT

90109-08087-00

$8.49

3

DISC, BRAKE (LEFT)

1XD-F582T-00-00

$53.99

4

BOLT

90109-08087-00

$8.49

5

BOLT, FLANGE

90105-10265-00

$5.60

6

CALIPER ASSY (LEFT)

1XD-2580T-00-00

$427.99

7

PISTON ASSY, CALIPER

1XD-25802-00-00

$44.99

8

CALIPER SEAL KIT

1XD-25803-00-00

$42.99

9

BOOT 2

1UY-25937-51-00

$14.49

10

BOOT, CALIPER

3JD-25917-00-00

$8.99

11

SUPPORT, PAD

1XD-25919-00-00

$13.49

12

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

13

BOLT

1UY-25926-51-00

$4.47

14

WASHER, SPRING

1UY-25938-51-00

Unavailable

15

BOLT

3JD-25926-00-00

$7.99

16

NUT

3JD-25961-00-00

Unavailable

17

BRAKE PAD KIT

1XD-25805-00-00

Unavailable

18

PIN, PAD

3TB-25933-00-00

Unavailable

19

CALIPER ASSY (RIGHT)

1XD-2580U-00-00

Unavailable

20

PISTON ASSY, CALIPER

1XD-25802-00-00

$44.99

21

CALIPER SEAL KIT

1XD-25803-00-00

$42.99

22

BOOT 2

1UY-25937-51-00

$14.49

23

BOOT, CALIPER

3JD-25917-00-00

$8.99

24

SUPPORT, PAD

1XD-25919-00-00

$13.49

25

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

26

BOLT

1UY-25926-51-00

$4.47

27

WASHER, SPRING

1UY-25938-51-00

Unavailable

28

BOLT

3JD-25926-00-00

$7.99

29

NUT

3JD-25961-00-00

Unavailable

30

BRAKE PAD KIT

1XD-25805-10-00

Unavailable

31

PIN, PAD

3TB-25933-00-00

Unavailable
