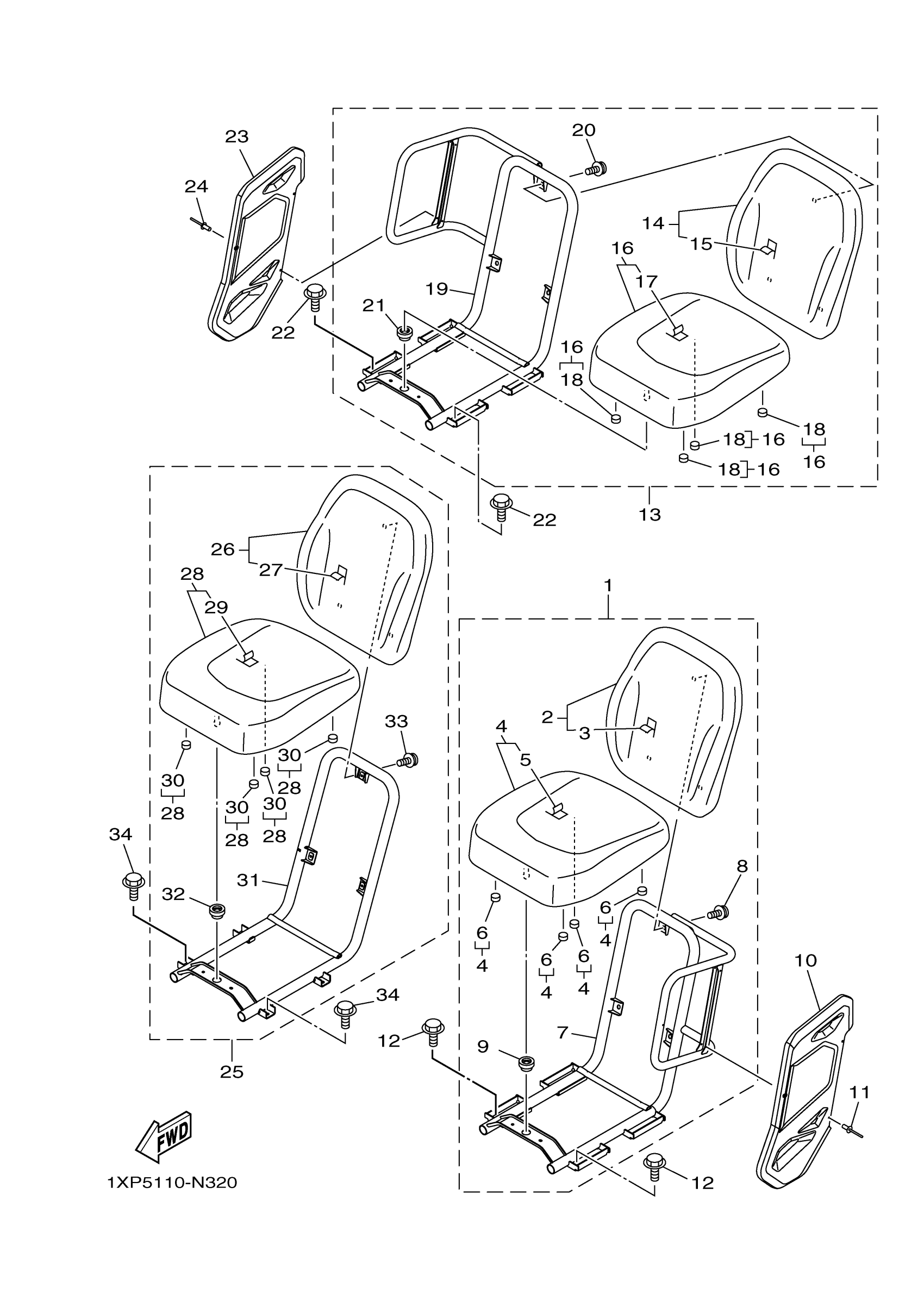

Yamaha YXM70VPSHL (VIKING EPS SE) B42N 2017 SEAT Diagram

#

Description
Price

1

SEAT 1

2PG-F7498-20-00

$299.62

2

. SEAT BACK ASSY

1XD-F4790-20-00

$179.38

3

.. COVER, SINGLE SEAT

1XD-F4711-20-00

$78.85

4

. SEAT ASSY

1XD-F4700-20-00

$195.26

5

. COVER, SEAT

1XD-F4731-20-00

$87.91

6

DAMPER, SEAT

1XD-F4723-00-00

$1.43

7

FRAME, SEAT 1

1XD-F473C-01-00

$285.88

8

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

9

GROMMET

1XD-F4742-00-00

Unavailable

10

COVER,2

1XD-F475X-01-00

$30.12

11

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

12

BOLT, FLANGE

95817-08012-00

$3.81

13

SEAT 2

2PG-F7499-20-00

Unavailable

14

. SEAT BACK ASSY

1XD-F4790-20-00

$179.38

15

.. COVER, SINGLE SEAT

1XD-F4711-20-00

$78.85

16

. SEAT ASSY

1XD-F4700-20-00

$195.26

17

. COVER, SEAT

1XD-F4731-20-00

$87.91

18

DAMPER, SEAT

1XD-F4723-00-00

$1.43

19

FRAME, SEAT 2

1XD-F473D-01-00

$246.18

20

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

21

GROMMET

1XD-F4742-00-00

Unavailable

22

BOLT, FLANGE

95817-08012-00

$3.81

23

COVER,2

1XD-F475X-01-00

$30.12

24

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

25

SEAT 3

2PG-F749A-20-00

$252.28

26

. SEAT BACK ASSY

1XD-F4790-20-00

$179.38

27

.. COVER, SINGLE SEAT

1XD-F4711-20-00

$78.85

28

. SEAT ASSY

1XD-F4700-20-00

$195.26

29

. COVER, SEAT

1XD-F4731-20-00

$87.91

30

DAMPER, SEAT

1XD-F4723-00-00

$1.43

31

DAMPER

1XD-F473Y-01-00

Unavailable

32

GROMMET

1XD-F4742-00-00

Unavailable

33

BOLT, SEAT FITTING

2PG-F4739-00-00

$1.41

34

BOLT, FLANGE

95817-08012-00

$3.81
