- YXM70VPSHL (VIKING EPS SE) B42N 2017
CYLINDER HEAD

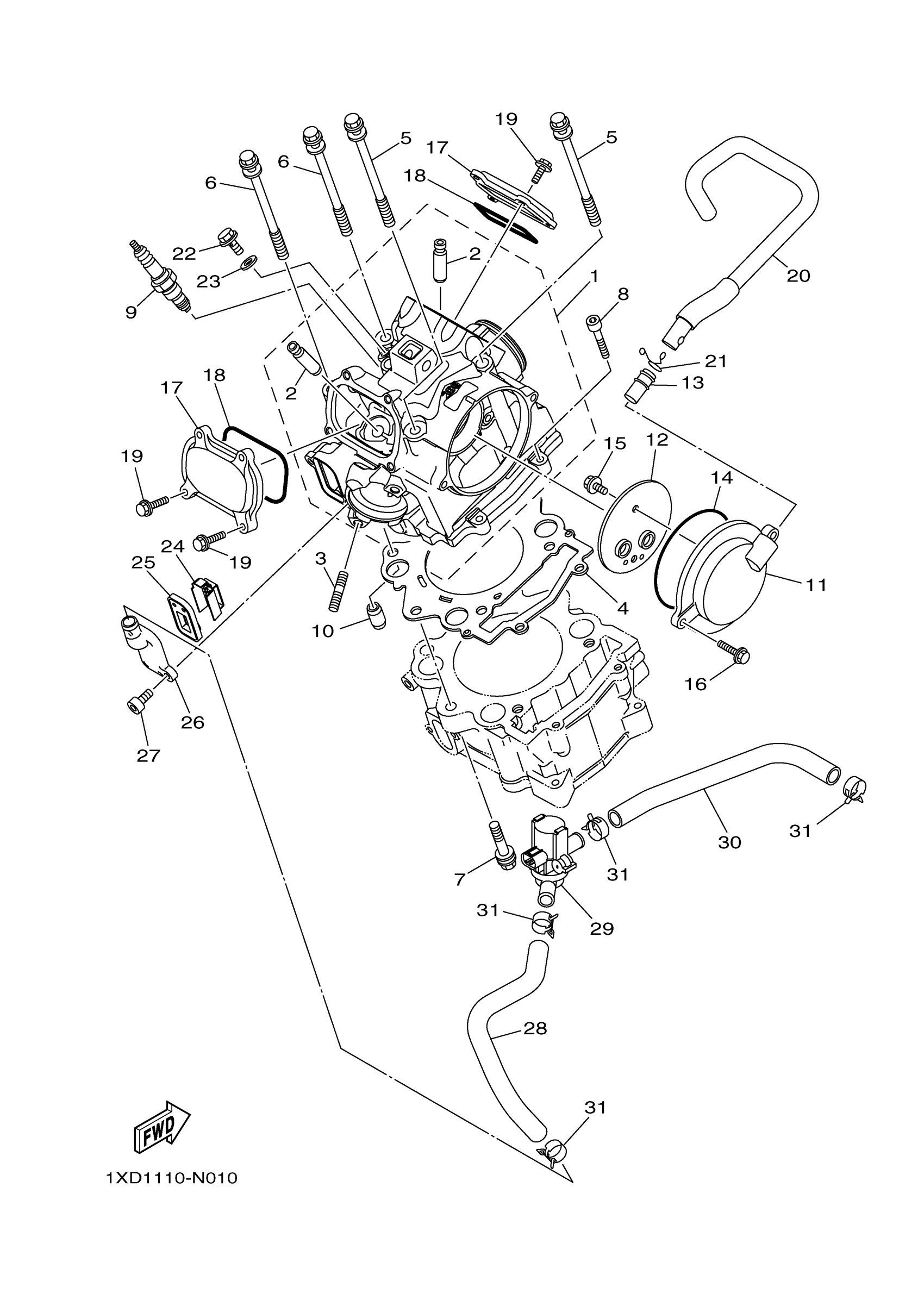

Yamaha YXM70VPSHL (VIKING EPS SE) B42N 2017 CYLINDER HEAD Diagram
#
1
CYLINDER HEAD ASSY
2BG-11102-00-00
$832.99
2
GUIDE, INTAKE VALVE
4G0-11133-11-00
$49.99
3
BOLT, STUD
95612-08625-00
$7.49
4
GASKET, CYLINDER HEAD 1
3B4-11181-00-00
$53.99
5
BOLT
90109-09003-00
$10.49
6
BOLT
90109-09002-00
$10.49
7
BOLT
90109-09005-00
$8.49
8
BOLT, HEXAGON SOCKET HEAD(1VJ)
90110-06138-00
$5.60
9
PLUG, SPARK (NGK CPR7EA)
CPR-7EA90-00-00
Unavailable
10
PIN, DOWEL(4XL)
93612-16254-00
$5.60
11
COVER, CYLINDER HEAD SIDE 1
3B4-11185-00-00
$31.99
12
PLATE, BREATHER
3B4-11165-10-00
$5.49
13
PIPE, BREATHER 2
371-11167-01-00
$13.49
14
O-RING (70R)
93210-96601-00
$12.49
15
BOLT, FLANGE
95022-06012-00
$3.29
16
BOLT, FLANGE
95022-06020-00
Unavailable
17
COVER, CYLINDER HEAD SIDE 2
1S3-11186-00-00
Unavailable
18
O-RING (14X)
93210-78544-00
Unavailable
19
BOLT, FLANGE
95022-06020-00
Unavailable
20
PIPE, BREATHER 1
1XD-E1166-00-00
Unavailable
21
CLIP
90467-140A4-00
Unavailable
22
BOLT, UNION
90401-08004-00
Unavailable
23
GASKET
90430-08119-00
Unavailable
24
PLATE
2BG-1482K-00-00
Unavailable
25
REED VALVE ASS
5JW-14890-00-00
Unavailable
26
CAP, CASE
5JW-14889-00-00
Unavailable
27
BOLT,SOCKET HEAD
91314-06020-00
Unavailable
28
HOSE, BEND 1
1XD-E4881-00-00
Unavailable
29
AIR CUT VALVE ASSY
2BG-14840-00-00
Unavailable
30
HOSE, BEND 2
1XD-E4882-00-00
Unavailable
31
CLIP(3TB)
90467-17128-00
Unavailable
