- YXM70VPSGB (VIKING EPS SPECIAL EDITION) B429 2016
STEERING

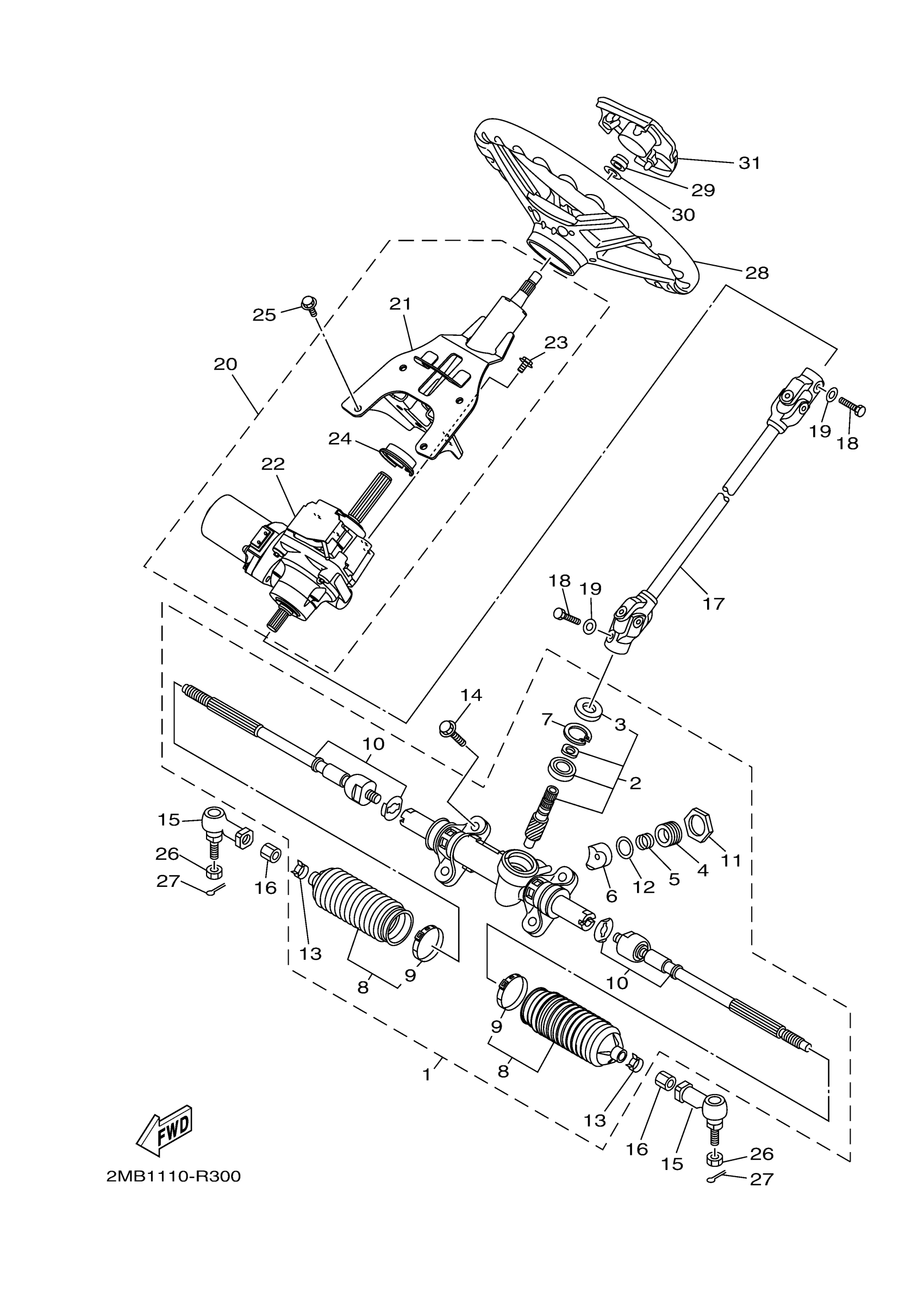

Yamaha YXM70VPSGB (VIKING EPS SPECIAL EDITION) B429 2016 STEERING Diagram
#
1
STEERING ASSY
1XD-F3400-02-00
Unavailable
2
STEERING PINION SET
1XD-F38G0-00-00
$40.99
3
SEAL
1XD-F3844-00-00
$4.94
4
COVER,ADJUST
1XD-F387G-00-00
Unavailable
5
SPRING,PRESSURE
1XD-F387K-00-00
Unavailable
6
PAD,PRESSURE
1XD-F387F-00-00
Unavailable
7
RING,STOPPER
1XD-F387J-00-00
Unavailable
8
SEAL 1 W/ BAND SET OF 2
1XD-F1208-00-00
Unavailable
9
BAND
1XD-F3489-00-00
$2.81
10
RACK END SET
1XD-F38H0-00-00
Unavailable
11
LOCK ASSY
1XD-F178K-00-00
Unavailable
12
WASHER
1XD-F3165-00-00
$1.92
13
CLIP
1XD-F3447-00-00
$1.92
14
BOLT, FLANGE
95022-10030-00
$7.49
15
JOINT, UNIVERSAL 1
B42-23841-00-00
$97.99
16
NUT 1
2PG-F3833-00-00
Unavailable
17
STEERING SHAFT ASS
1XD-F3840-01-00
Unavailable
18
BOLT, SOCKET
91317-08025-00
Unavailable
19
WASHER, PLATE(3XP)
90201-083P5-00
Unavailable
20
STEERING COLUMN AS
2MB-23810-00-00
Unavailable
21
COLUMN, STEERING 2
2MB-23813-00-00
Unavailable
22
STEERING COLUMN AS
2HC-23810-06-00
Unavailable
23
BOLT, FLANGE
95812-08020-00
Unavailable
24
COVER, DUST
2MB-2384L-00-00
Unavailable
25
BOLT, FLANGE
95812-08020-00
Unavailable
26
NUT, CASTLE
90171-12001-00
Unavailable
27
PIN, COTTER
91490-20025-00
Unavailable
28
STEERING WHEEL KIT
2HC-F3838-09-00
Unavailable
29
NUT, SELF-LOCKING
90185-12008-00
Unavailable
30
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
31
COVER, STEERING
1XD-F3818-00-00
Unavailable
