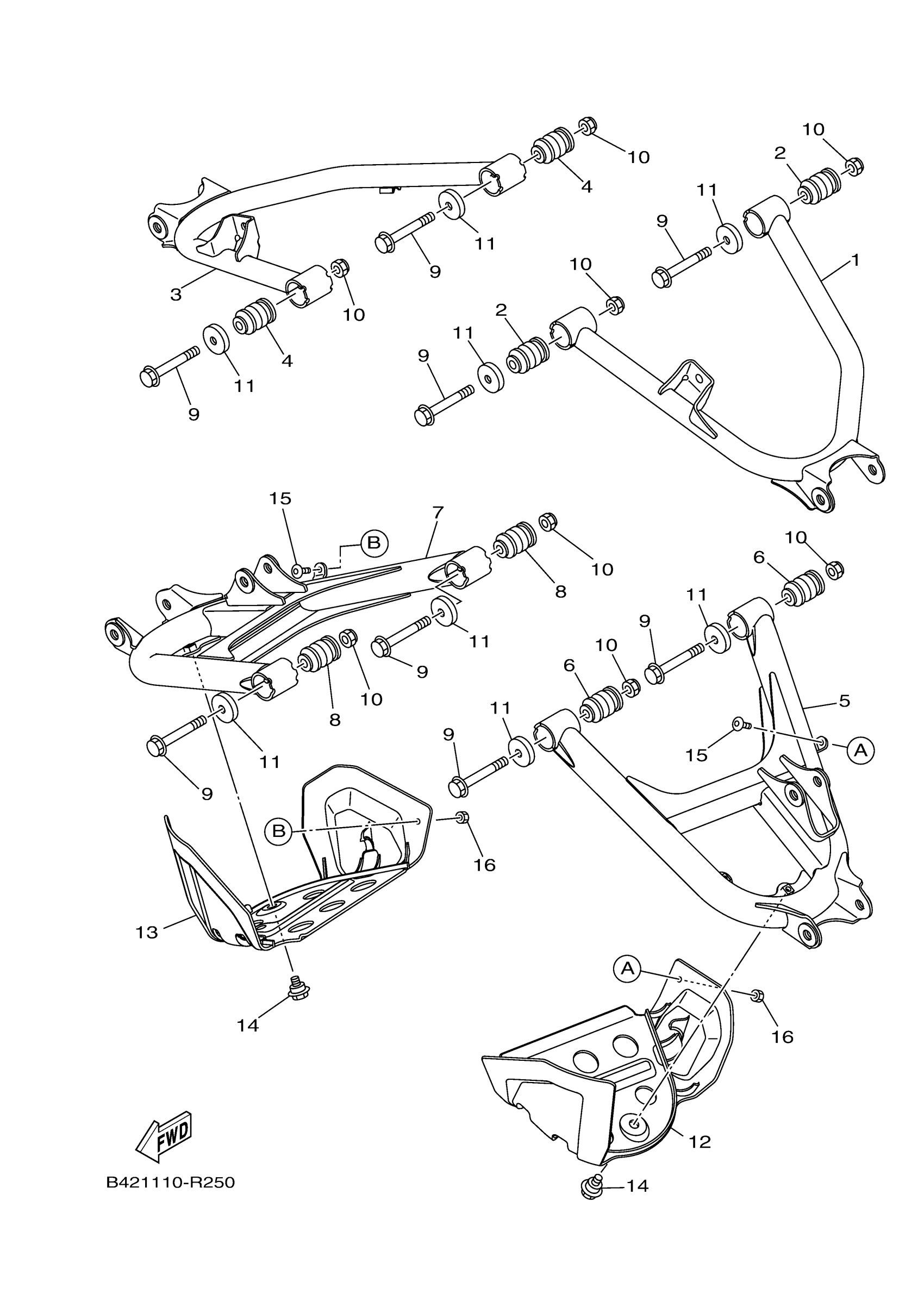

Yamaha YXM70VPSGB (VIKING EPS SPECIAL EDITION) B429 2016 REAR ARM Diagram

#

Description
Price

1

ARM, REAR 1

1XD-F2171-00-00

$43.62

2

BUSH

1HP-F3526-00-00

$20.42

3

ARM, REAR 2

1XD-F2172-00-00

$66.65

4

BUSH

1HP-F3526-00-00

$20.42

5

ARM 1

1XD-F217M-10-00

$77.15

6

BUSH

1HP-F3526-00-00

$20.42

7

ARM 2

1XD-F217N-10-00

$77.15

8

BUSH

1HP-F3526-00-00

$20.42

9

BOLT, FLANGE

90105-10267-00

$7.23

10

NUT, SELF-LOCKING

90185-10012-00

$2.78

11

WASHER

5KM-22149-10-00

$5.96

12

COVER, THRUST 1

1XD-F2128-01-00

Unavailable

13

COVER, THRUST 2

1XD-F2129-01-00

$9.29

14

BOLT

90109-06220-00

$6.94

15

BOLT,HEX SKT HEAD

90111-06814-00

$1.45

16

NUT, NYLON

95707-06300-00

Unavailable
