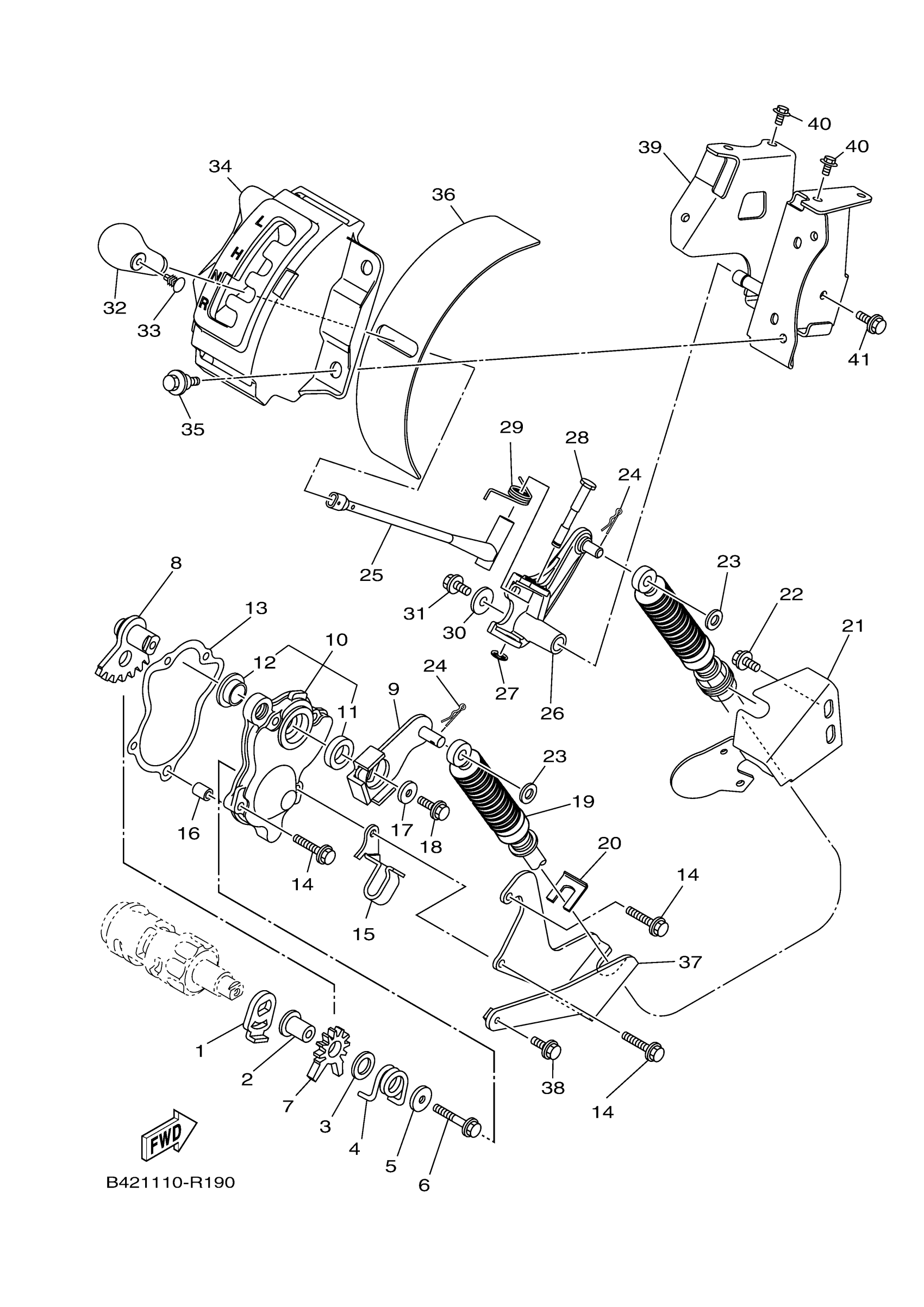

Yamaha YXM70VPRPC (VIKING EPS RANCH) BHFJ 2023 SHIFT SHAFT Diagram

#

Description
Price

1

LEVER

1XD-18198-00-00

$3.21

2

COLLAR

90387-0613B-00

$6.76

3

WASHER, PLATE

90201-13013-00

$5.86

4

SPRING, TORSION(1YW)

90508-35764-00

$3.92

5

WASHER, PLATE

90201-06036-00

$5.84

6

95812-06035

95812-06035-00

$5.27

7

LEVER

5KM-18191-00-00

$20.67

8

SHIFT SHAFT COMP.

3B4-18103-11-00

$51.67

9

SHIFT GUIDE COMP.

1XD-18104-00-00

$31.56

10

SHIFTER BRKT. ASSY

3B4-18380-00-00

Unavailable

11

OIL SEAL (3X3)

93102-15212-00

$6.84

12

SPACER 2

3B4-18582-00-00

Unavailable

13

GASKET

3B4-18146-00-00

$5.55

14

BOLT, FLANGE

95022-06025-00

$1.37

15

CLAMP

90462-10048-00

Unavailable

16

PIN, DOWEL

99530-08012-00

$4.89

17

WASHER, PLATE

90201-06036-00

$5.84

18

BOLT, FLANGE

90105-06175-00

Unavailable

19

CABLE, CONTROL 1

B42-2637E-00-00

Unavailable

20

CIRCLIP

1XD-25866-00-00

Unavailable

21

HOLDER, ADJUSTING

B42-F6381-00-00

$5.98

22

BOLT, FLANGE

95817-08014-00

Unavailable

23

.. WASHER, PLATE

92990-08600-00

$2.17

24

CLIP

90468-16001-00

Unavailable

25

LEVER COMP. 1

1XD-E8190-10-00

Unavailable

26

ARM, SHIFT 2

1XD-E8169-00-00

Unavailable

27

CIRCLIP(53L)

99001-06600-00

Unavailable

28

SHAFT, SHIFT

1HP-E8125-00-00

Unavailable

29

SPRING, RETURN

1HP-E8196-00-00

Unavailable

30

WASHER, PLATE

90201-06036-00

$5.84

31

BOLT, FLANGE

95817-06016-00

Unavailable

32

KNOB, SHIFT LEVER

28P-18174-00-00

Unavailable

33

RIVET(81E)

90269-05055-00

Unavailable

34

GUIDE, SHIFT

1XD-E8172-00-00

$11.11

35

BOLT

90109-06172-00

Unavailable

36

COVER, DUST

1HP-E8154-01-00

Unavailable

37

BRACKET, SHIFTER

1XD-18431-00-00

Unavailable

38

BOLT, FLANGE

95022-06012-00

Unavailable

39

PLATE, SHIFT ARM

1XD-E811A-00-00

Unavailable

40

BOLT, FLANGE

95817-06012-00

Unavailable

41

BOLT, FLANGE

90105-06831-00

Unavailable
