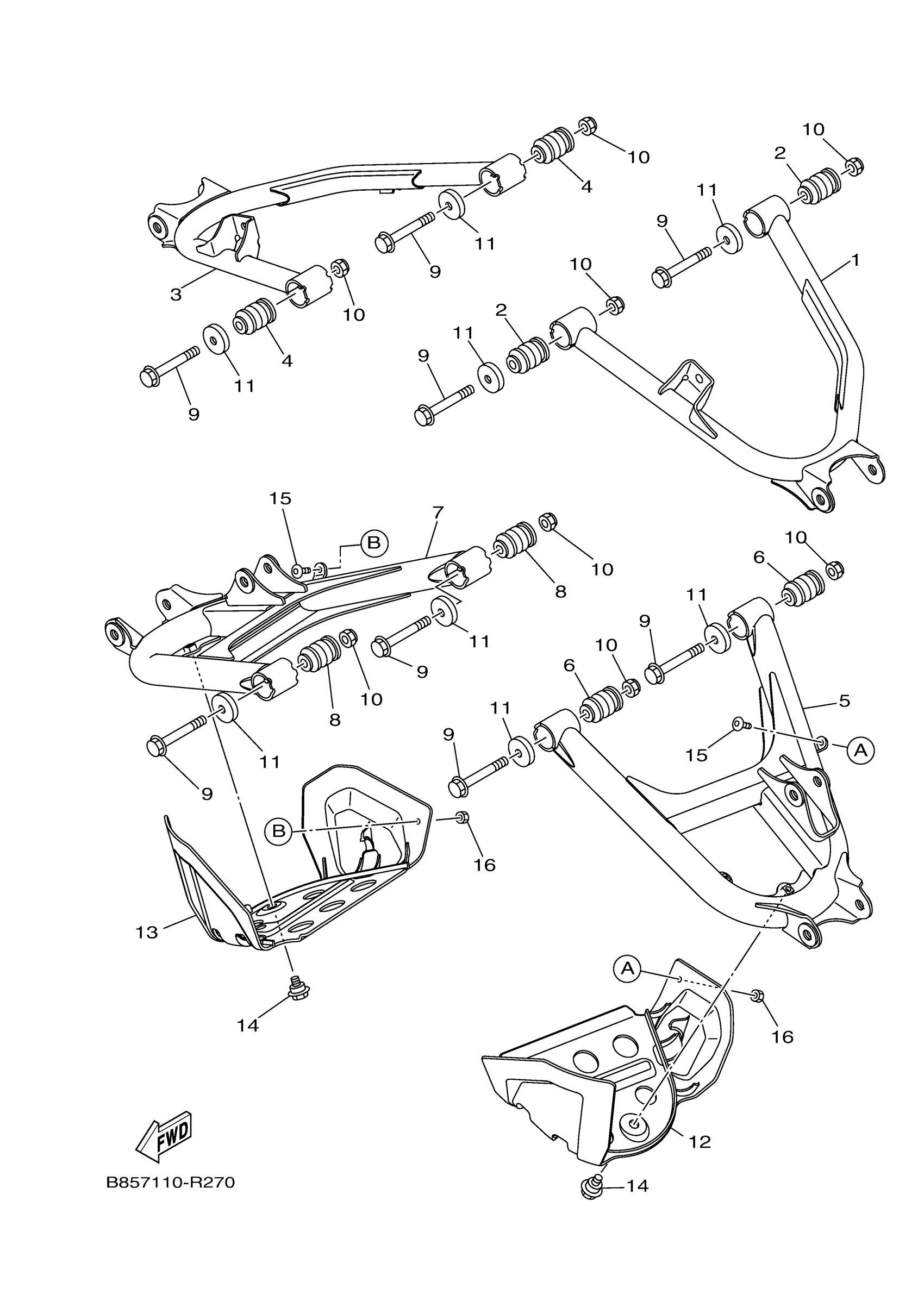

Yamaha YXM70VPRMC (VIKING EPS RANCH EDITION) BHF6 2021 REAR ARM Diagram

#

Description
Price

1

ARM, REAR 1

2US-F2171-01-00

$61.99

2

BUSH

1HP-F3526-00-00

$22.99

3

ARM, REAR 2

2US-F2172-01-00

$62.99

4

BUSH

1HP-F3526-00-00

$22.99

5

ARM 1

1XD-F217M-11-00

Unavailable

6

BUSH

1HP-F3526-00-00

$22.99

7

ARM 2

1XD-F217N-11-00

$92.99

8

BUSH

1HP-F3526-00-00

$22.99

9

BOLT, FLANGE

90105-10267-00

$9.49

10

NUT, SELF-LOCKING

90185-10012-00

$9.49

11

COVER, THRUST 1

BG4-F3517-00-00

$0.80

12

COVER, THRUST 1

1XD-F2128-01-00

Unavailable

13

COVER, THRUST 2

1XD-F2129-01-00

$10.99

14

BOLT

90109-06220-00

$10.49

15

BOLT,HEX SKT HEAD

90111-06814-00

$3.76

16

NUT, NYLON

95707-06300-00

Unavailable
