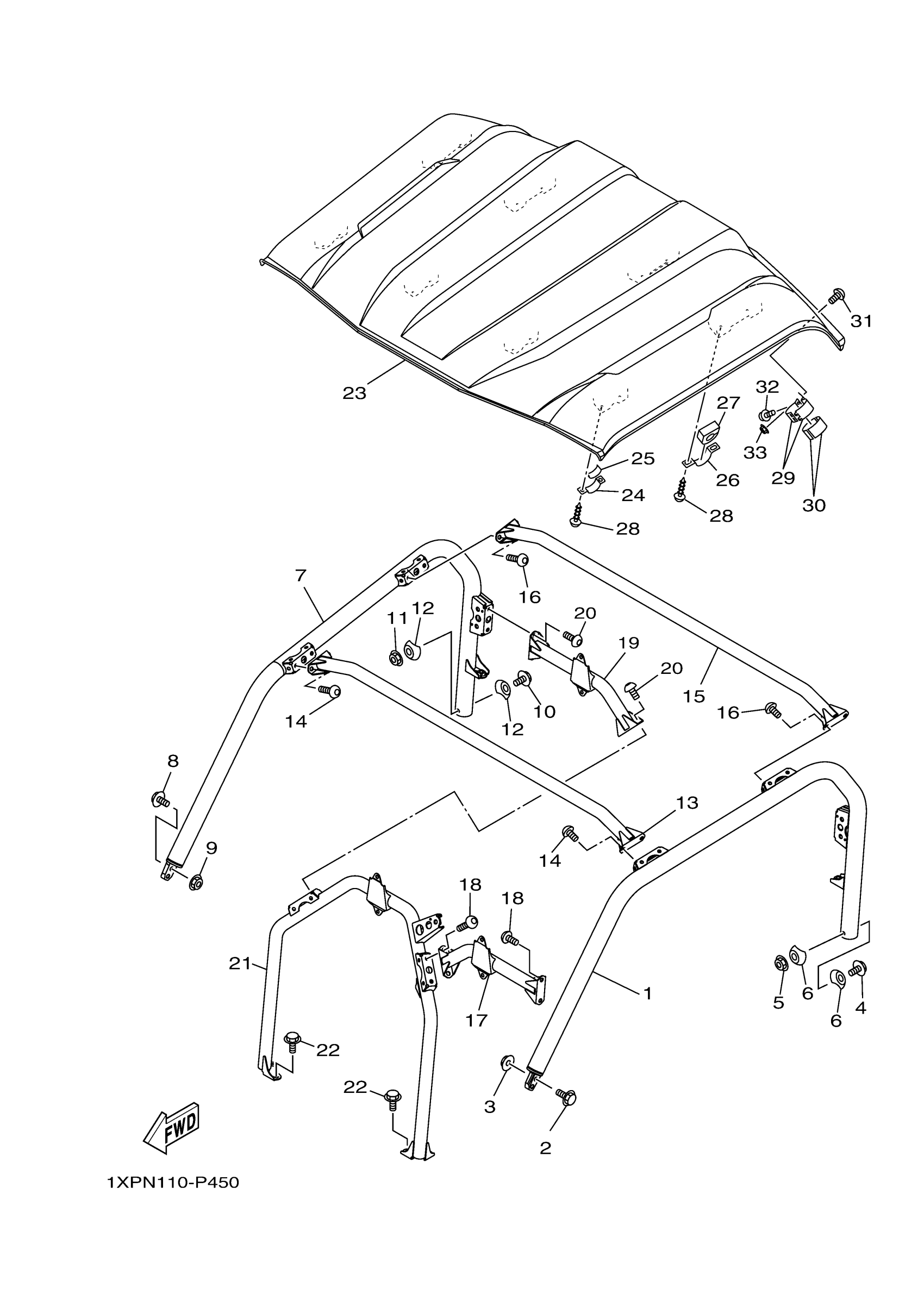

Yamaha YXM70VPRMC (VIKING EPS RANCH EDITION) BHF6 2021 GUARD 2 Diagram
#
1
SUPPORT, ROOF 3
1XD-K831A-10-00
$317.99
2
BOLT, FLANGE (8V9)
95812-10045-00
$4.19
3
NUT, SELF-LOCKING
90185-10011-00
$5.60
4
BOLT, BUTTON HEAD
92012-10070-00
$3.76
5
NUT, SELF-LOCKING
90185-10011-00
$5.60
6
WASHER 2
1XD-K7526-00-00
$5.49
7
SUPPORT, ROOF 4
1XD-K831E-10-00
$317.99
8
BOLT, FLANGE (8V9)
95812-10045-00
$4.19
9
NUT, SELF-LOCKING
90185-10011-00
$5.60
10
BOLT, BUTTON HEAD
92012-10070-00
$3.76
11
NUT, SELF-LOCKING
90185-10011-00
$5.60
12
WASHER 2
1XD-K7526-00-00
$5.49
13
MEMBER, ROOF FRAME
1XD-K8392-10-00
$140.99
14
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
15
MEMBER, ROOF FRAME
1XD-K8393-10-00
$139.99
16
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
17
SUNROOF PIPE ASSY
2PG-K830E-10-00
Unavailable
18
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
19
SUNROOF PIPE ASSY
2PG-K830F-10-00
Unavailable
20
BOLT,HEX. SOCKET B
90111-10802-00
$5.60
21
ROOF SUPPORT ASSY
2PG-K830A-10-00
Unavailable
22
BOLT, FLANGE
95812-10016-00
Unavailable
23
COVER, SUN ROOF
1XP-K8314-00-00
Unavailable
24
CLAMP, SUPPORT
5UG-K8366-00-00
Unavailable
25
DAMPER
5UG-K7588-01-00
Unavailable
26
CLAMP, SUPPORT
1XP-K8366-00-00
Unavailable
27
DAMPER
1XP-K7588-00-00
Unavailable
28
SCREW, TAPPING
90167-06800-00
Unavailable
29
CLAMP
1XP-F481H-00-00
Unavailable
30
DAMPER
5UG-K7588-01-00
Unavailable
31
BOLT,HEX SKT HEAD
90111-06814-00
Unavailable
32
BOLT, FLANGE
95817-06012-00
Unavailable
33
NUT, U FLANGE
95604-06200-00
Unavailable
