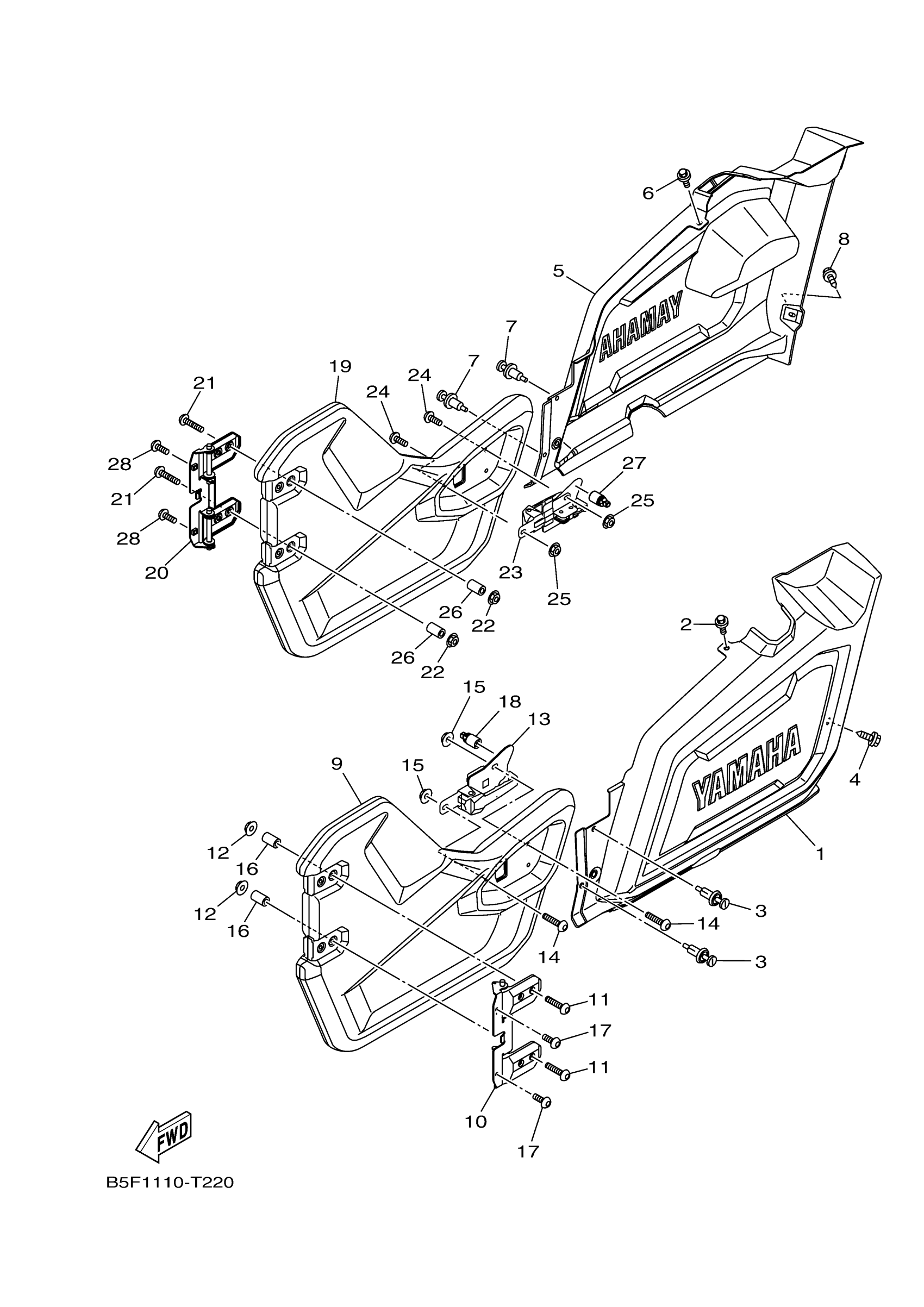

Yamaha YXM70VPRKC (VIKING EPS RANCH EDITION) B5FM 2019 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 2

1XD-F1721-00-00

$30.99

2

BOLT, WITH WASHER

90119-06226-00

$8.49

3

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

4

BOLT, WITH WASHER

90119-06226-00

$8.49

5

COVER, SIDE 3

1XD-F1731-00-00

$28.99

6

BOLT, WITH WASHER

90119-06226-00

$8.49

7

RIVET,SPEC'L SHAPE

90269-07805-00

Unavailable

8

BOLT, WITH WASHER

90119-06226-00

$8.49

9

PNL., DOOR FR. LH

1XD-K8557-11-00

$74.99

10

HINGE ASS'Y

1XD-F4772-10-00

$39.99

11

BOLT

90109-06897-00

$0.90

12

NUT, U FLANGE

95604-06200-00

$8.49

13

BODY, LATCH 1

2MB-K7171-00-00

$69.99

14

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$5.60

15

NUT, U FLANGE

95604-06200-00

$8.49

16

COLLAR

90387-06304-00

Unavailable

17

BOLT 2

5B4-F1722-00-00

Unavailable

18

PAD

2MB-F8378-00-00

Unavailable

19

PNL., DOOR FR. LH

1XD-K8557-11-00

$74.99

20

HINGE ASS'Y

1XD-F4772-10-00

$39.99

21

BOLT

90109-06897-00

$0.90

22

NUT, U FLANGE

95604-06200-00

$8.49

23

BODY, LATCH 2

2MB-K7172-00-00

Unavailable

24

BOLT,HEX. SOCKET BUTTON

90111-06086-00

$5.60

25

NUT, U FLANGE

95604-06200-00

$8.49

26

COLLAR

90387-06304-00

Unavailable

27

PAD

2MB-F8378-00-00

Unavailable

28

BOLT 2

5B4-F1722-00-00

Unavailable
