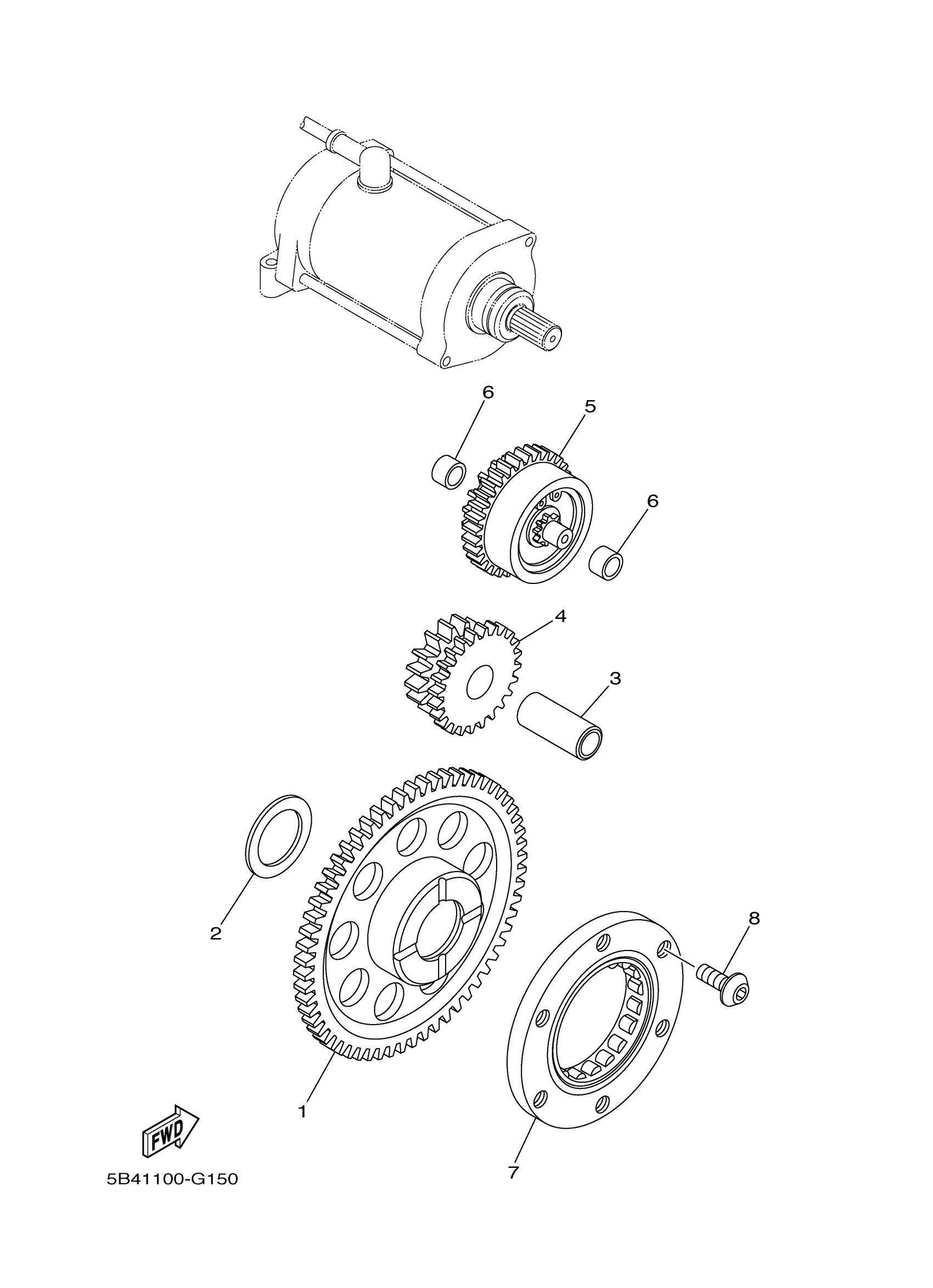

Yamaha YXM70VPRJC (VIKING EPS RANCH EDITION) B5FB 2018 STARTER CLUTCH Diagram

#

Description

Price

1

GEAR 3

BLT-15515-00-00

$147.36

2

WASHER, PLATE(1YW)

90201-286K9-00

$5.30

3

SHAFT 2

3B4-15522-00-00

$12.22

4

GEAR, IDLER 2

3B4-15517-01-00

Unavailable

5

DAMPER ASSY

1PE-15560-00-00

$279.79

6

BUSH, SOLID

90380-10002-00

$2.73

7

STARTER ONE-WAY ASSY

5KM-15590-00-00

$175.55

8

SCREW

90149-08042-00

$1.78
