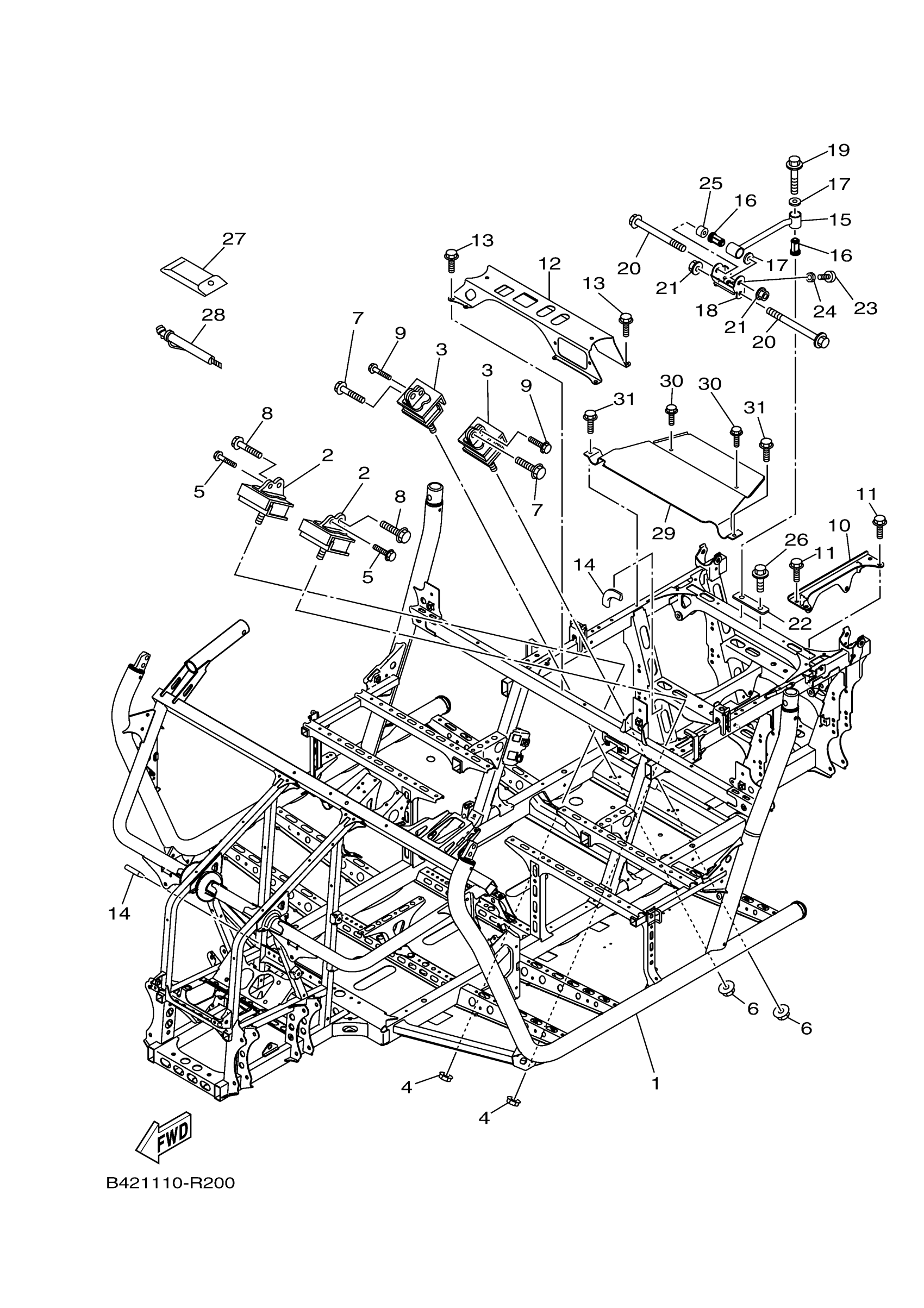

Yamaha YXM70VPRJC (VIKING EPS RANCH EDITION) B5FB 2018 FRAME Diagram
#
1
FRAME COMP.
B42-F1110-00-00
Unavailable
2
DAMPER, RUBBER 1
2PG-21485-00-00
$30.99
3
DAMPER, RUBBER 1
5B4-21485-01-00
$114.99
4
NUT, SELF-LOCKING
90185-10011-00
$5.60
5
BOLT, FLANGE(2UJ)
95024-06016-00
$8.49
6
NUT, SELF-LOCKING
90185-10011-00
$5.60
7
BOLT, FLANGE
95812-10035-00
$5.60
8
BOLT, FLANGE
90105-10314-00
Unavailable
9
BOLT, FLANGE(2UJ)
95024-06016-00
$8.49
10
STAY, SUPPORT 1
2PG-F831T-00-00
Unavailable
11
BOLT, FLANGE(JN5)
95817-08016-00
$5.49
12
PROTECTOR 1
1XD-F834V-00-00
$30.99
13
BOLT, FLANGE
90105-08867-00
$15.99
14
MOLE 3
4XY-28347-00-00
Unavailable
15
STAY, ENGINE 1
B42-F1315-02-00
$28.99
16
DAMPER, ENGINE MOU
5UH-E5336-00-00
Unavailable
17
DAMPER 2
5ND-F1486-00-00
Unavailable
18
BRACKET, DAMPER
B42-F1121-01-00
Unavailable
19
BOLT, FLANGE(7LU)
95817-10070-00
Unavailable
20
BOLT, FLANGE
95812-10100-00
Unavailable
21
NUT, S/L FLANGE
95602-10200-00
Unavailable
22
BRACKET
B42-F1158-00-00
Unavailable
23
SCREW PAN HEAD
98580-06020-00
Unavailable
24
NUT(650)
95380-06700-00
Unavailable
25
COLLAR
B42-F1116-00-00
Unavailable
26
BOLT, FLANGE
95817-10020-00
Unavailable
27
TOOL KIT
5B4-F8100-00-00
Unavailable
28
GAUGE, AIR
1XD-F811A-00-00
Unavailable
29
INSULATOR, HEAT
1XD-F2898-21-00
Unavailable
30
BOLT, FLANGE
90105-08867-00
$15.99
31
BOLT, FLANGE
90105-08867-00
$15.99
