- YXM70VPLKL (VIKING EPS SPECIAL EDITION) B5FM 2019
INTAKE

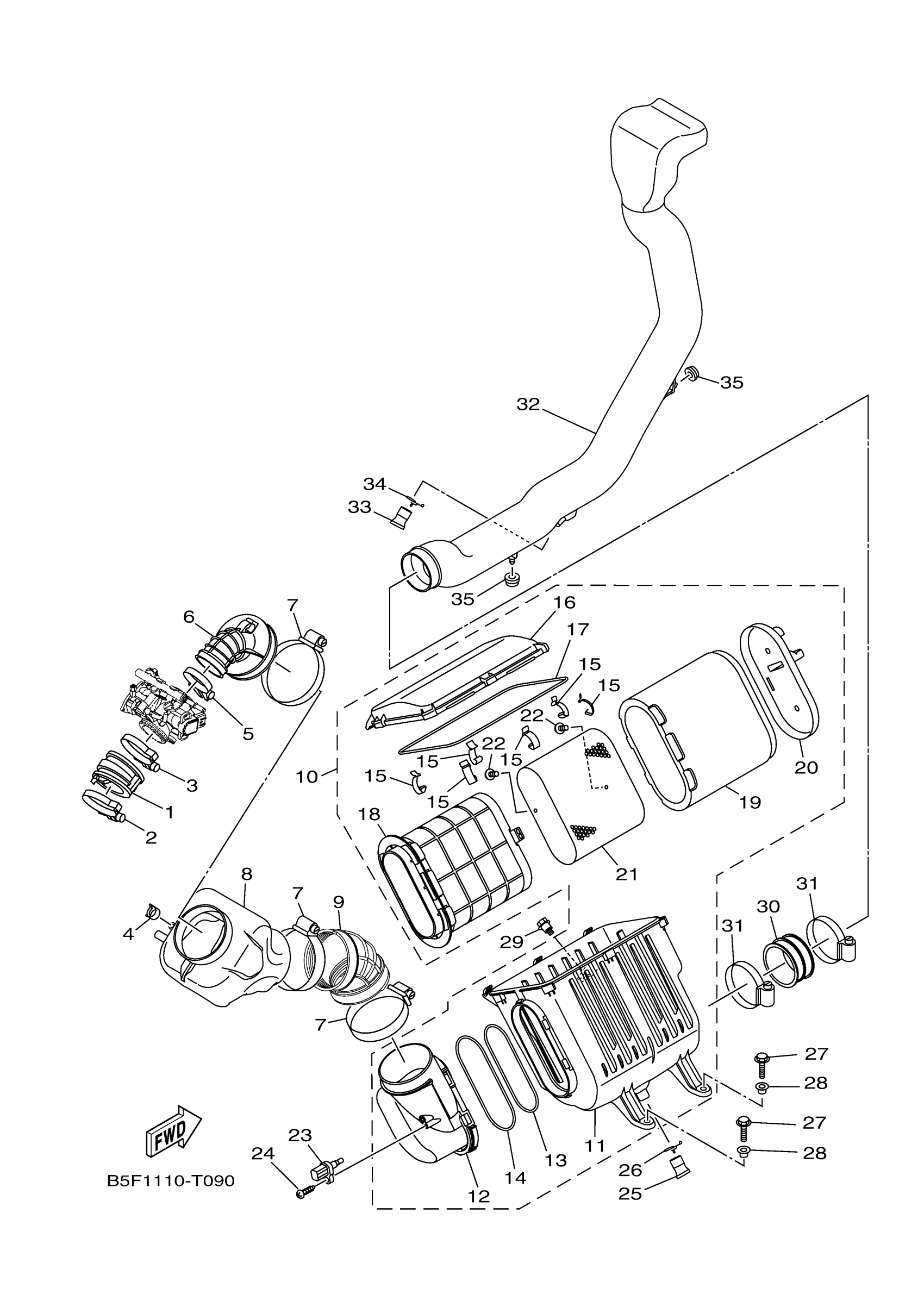

Yamaha YXM70VPLKL (VIKING EPS SPECIAL EDITION) B5FM 2019 INTAKE Diagram
#
1
JOINT, CARBURETOR 1
5B4-13586-00-00
$42.99
2
HOSE CLAMP ASSY
90450-72004-00
$18.99
3
HOSE CLAMP ASSY
90450-72004-00
$18.99
4
CLIP (4V3)
90467-19051-00
$2.34
5
HOSE CLAMP ASSY
90450-62006-00
$12.49
6
JOINT, AIR CLEANER
1XD-E4453-00-00
$30.99
7
HOSE CLAMP ASSY
90450-99807-00
Unavailable
8
SILENCER,INTAKE 1
1XD-E4431-02-00
$40.99
9
JOINT, AIR CLEANER
1XD-E4463-00-00
$24.99
10
AIR CLEANER ASY.1
1XD-E4410-02-00
$207.99
11
CASE, AIR CLEANER
1XD-E4411-01-00
$75.99
12
GUIDE
1XD-E4458-00-00
$27.99
13
. SEAL
1XD-E4462-01-00
Unavailable
14
. SEAL
1XD-E4467-00-00
Unavailable
15
CLIP, CAP FITTING
3B4-14424-00-00
$7.99
16
CAP, CLEANER CASE
1XD-E4412-01-00
Unavailable
17
SEAL
1XD-E4452-00-00
Unavailable
18
PLATE, ELEMENT
1XD-E4472-00-00
Unavailable
19
ELEMENT, AIR CLEAN
1XD-E4451-00-00
Unavailable
20
COVER 1
1XD-E4417-00-00
Unavailable
21
NET 2
1XD-E441B-00-00
Unavailable
22
SCREW
1XD-E4429-00-00
Unavailable
23
SENSOR, AIR TEMPERATURE
8FP-85886-00-00
Unavailable
24
SCREW, PANHEAD TAPPING
97702-50520-00
Unavailable
25
SEAL
59V-14457-00-00
Unavailable
26
CLIP
90467-220A1-00
Unavailable
27
BOLT, FLANGE
90105-06833-00
Unavailable
28
COLLAR 8111266500
90387-07037-00
Unavailable
29
BOLT
90109-06262-00
Unavailable
30
SEAL
1XD-E4476-00-00
Unavailable
31
HOSE CLAMP ASSY
90450-95802-00
Unavailable
32
DUCT
1XD-E443A-01-00
Unavailable
33
SEAL
59V-14457-00-00
Unavailable
34
CLIP
90467-220A1-00
Unavailable
35
GROMMET(4FU)
90480-13567-00
Unavailable
