CRANKSHAFT PISTON

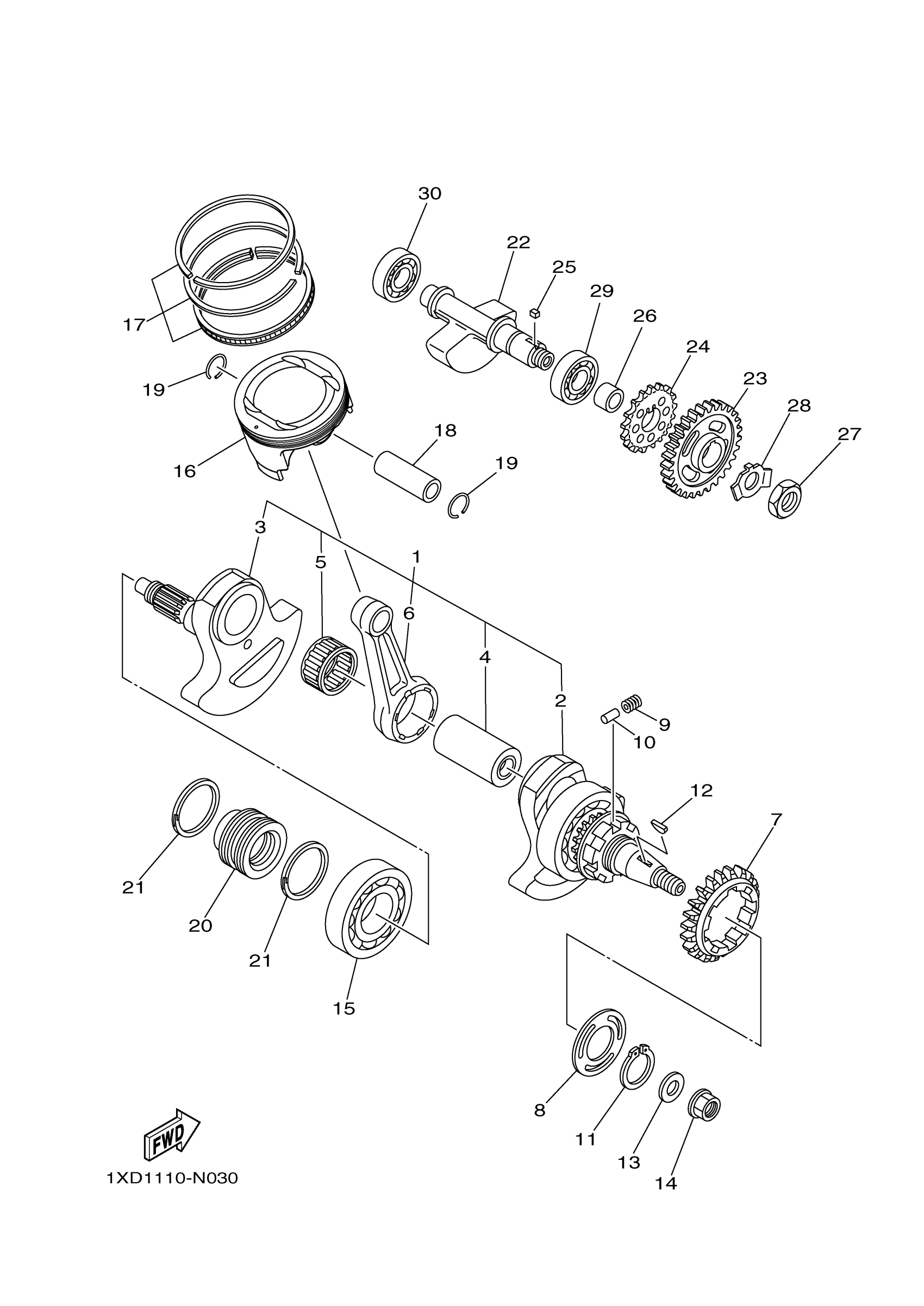

Yamaha YXM70VPLKL (VIKING EPS SPECIAL EDITION) B5FM 2019 CRANKSHAFT PISTON Diagram
#
1
CRANKSHAFT ASSY
2BG-11400-10-00
$633.99
2
CRANK SUB ASSY 1
3B4-11401-09-00
Unavailable
3
CRANK SUB ASSY 2
3B4-11402-09-00
$303.99
4
PIN, CRANK 1
5VK-11681-01-00
$97.99
5
BEARING
93310-84037-00
$83.99
6
ROD, CONNECTING
2BG-11651-00-00
$146.99
7
GEAR, DRIVE
1HP-11536-00-00
$149.99
8
WASHER, BEARING COVER
5KM-11565-00-00
$14.49
9
SPRING, COMPRESSION
90501-220A1-00
$7.49
10
PIN, DOWEL
93606-09002-00
$4.14
11
CIRCLIP(6U2)
93410-35M10-00
$7.49
12
KEY, WOODRUFF
90280-05001-00
$12.49
13
WASHER, PLATE
90201-16013-00
$13.99
14
NUT
90179-16004-00
$15.99
15
BEARING
93306-30810-00
$75.99
16
PISTON (STD)
2BG-11631-00-00
Unavailable
17
PISTON RING SET (STD)
1S3-11603-10-00
Unavailable
18
PIN, PISTON
5VK-11633-00-00
Unavailable
19
CIRCLIP
93450-24154-00
Unavailable
20
SPACER 1
3B4-16181-00-00
Unavailable
21
SEAL, CRANK
2BG-11447-01-00
Unavailable
22
WEIGHT 1
2BG-11454-00-00
Unavailable
23
GEAR, BALANCE WEIGHT
1HP-11531-10-00
Unavailable
24
SPROCKET, DRIVE
1HP-13354-00-00
Unavailable
25
KEY, STRAIGHT(34K)
90282-05065-00
Unavailable
26
COLLAR
90387-24001-00
Unavailable
27
NUT
90170-18003-00
Unavailable
28
WASHER, LOCK
90215-18001-00
Unavailable
29
BEARING(3RR)
93306-30560-00
Unavailable
30
BRG,R-B 6304C3 52MM 144G KY
93306-30421-00
Unavailable
