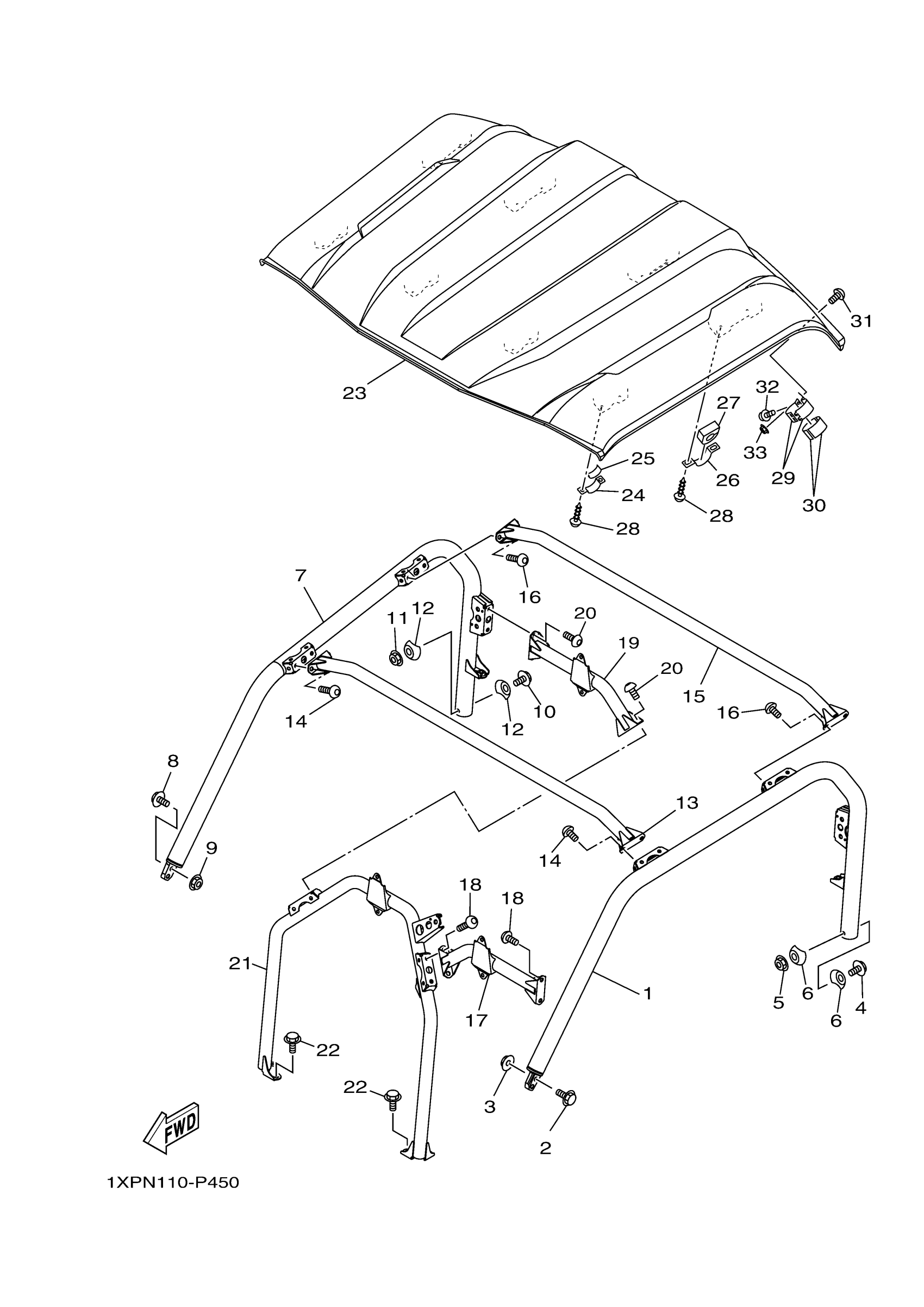

Yamaha YXM70VPHGH (VIKING EPS HUNTER) B425 2016 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

1XD-K831A-00-00

$247.99

2

BOLT, FLANGE (8V9)

95812-10045-00

$4.19

3

NUT, SELF-LOCKING

90185-10011-00

$5.60

4

BOLT, BUTTON HEAD

92012-10070-00

$3.76

5

NUT, SELF-LOCKING

90185-10011-00

$5.60

6

WASHER 2

1XD-K7526-00-00

$5.49

7

SUPPORT, ROOF 4

1XD-K831E-00-00

$227.99

8

BOLT, FLANGE (8V9)

95812-10045-00

$4.19

9

NUT, SELF-LOCKING

90185-10011-00

$5.60

10

BOLT, BUTTON HEAD

92012-10070-00

$3.76

11

NUT, SELF-LOCKING

90185-10011-00

$5.60

12

WASHER 2

1XD-K7526-00-00

$5.49

13

MEMBER, ROOF FRAME

1XD-K8392-00-00

$92.99

14

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

15

MEMBER, ROOF FRAME

1XD-K8393-00-00

$93.99

16

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

17

SUNROOF PIPE ASSY

2PG-K830E-00-00

Unavailable

18

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

19

SUNROOF PIPE ASSY

2PG-K830F-00-00

Unavailable

20

BOLT,HEX. SOCKET B

90111-10802-00

$5.60

21

ROOF SUPPORT ASSY

2PG-K830A-00-00

Unavailable

22

BOLT, FLANGE

95812-10016-00

Unavailable

23

COVER, SUN ROOF

1XP-K8314-00-00

Unavailable

24

CLAMP, SUPPORT

5UG-K8366-00-00

Unavailable

25

DAMPER

5UG-K7588-01-00

Unavailable

26

CLAMP, SUPPORT

1XP-K8366-00-00

Unavailable

27

DAMPER

1XP-K7588-00-00

Unavailable

28

SCREW, TAPPING

90167-06800-00

Unavailable

29

CLAMP

1XP-F481H-00-00

Unavailable

30

DAMPER

5UG-K7588-01-00

Unavailable

31

BOLT,HEX SKT HEAD

90111-06814-00

Unavailable

32

BOLT, FLANGE

95817-06012-00

Unavailable

33

NUT, U FLANGE

95604-06200-00

Unavailable
