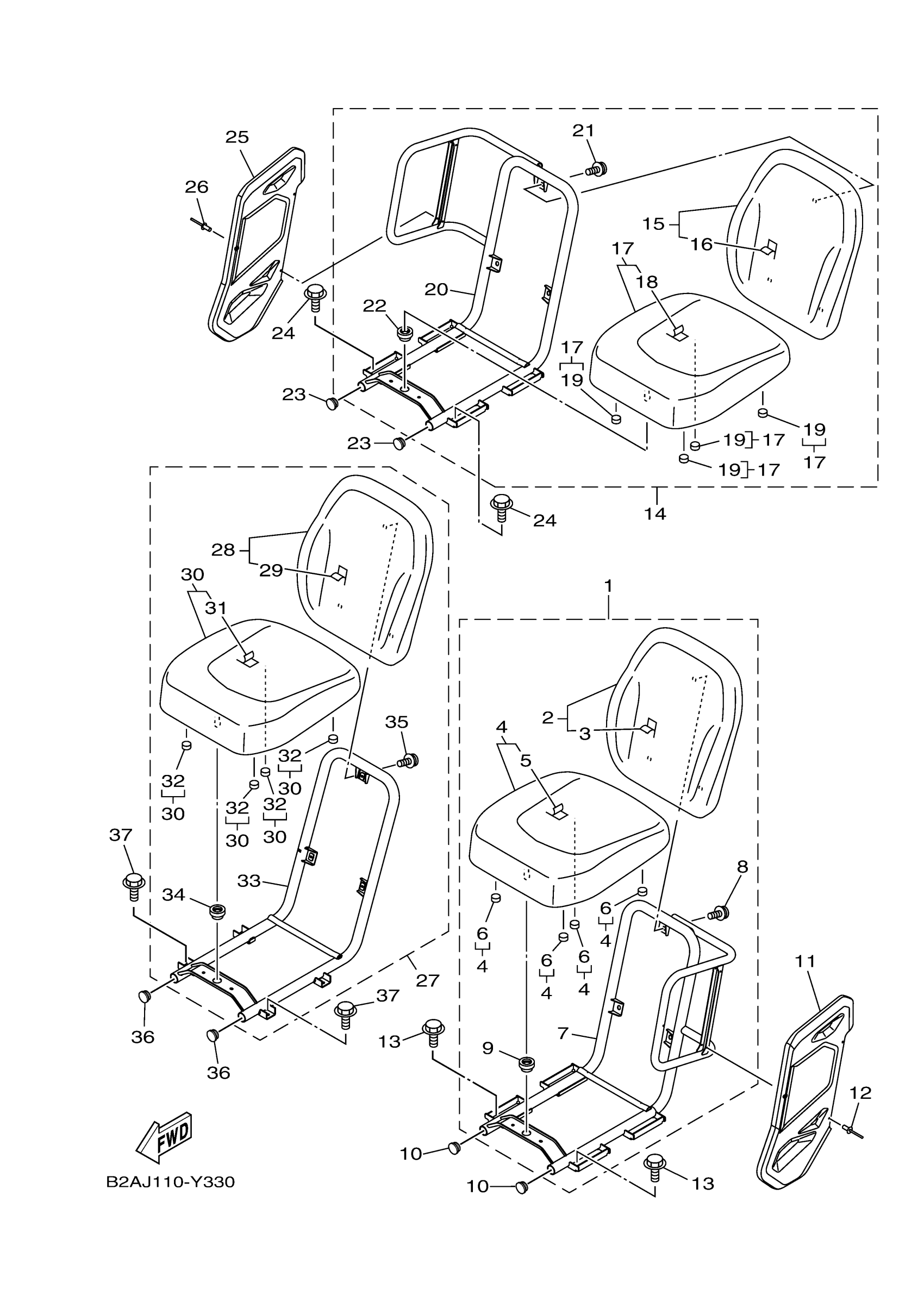

Yamaha YXM70VPASG (VIKING EPS) BHFU 2025 SEAT Diagram
#
1
SEAT 1
2PG-F7498-02-00
Unavailable
2
SEAT BACK ASY
1XD-F4790-01-00
$449.99
3
COVER,SINGLE SEAT
1XD-F4711-01-00
$171.99
4
SEAT ASSY
1XD-F4700-01-00
Unavailable
5
COVER,DOUBLE SEAT
1XD-F4731-01-00
$149.99
6
DAMPER, SEAT
1XD-F4723-00-00
$1.46
7
FRAME, SEAT 1
1XD-F473C-01-00
Unavailable
8
BOLT, SEAT FITTING
2PG-F4739-00-00
$1.59
9
GROMMET
1XD-F4742-00-00
$3.69
10
PLUG
2HC-F2417-00-00
$2.75
11
COVER,2
1XD-F475X-01-00
$38.99
12
RIVET, BLIND(EU0,USA)
90267-489U9-00
$5.60
13
BOLT, FLANGE
95817-08012-00
$5.49
14
SEAT 2
2PG-F7499-02-00
Unavailable
15
SEAT BACK ASY
1XD-F4790-01-00
$449.99
16
COVER,SINGLE SEAT
1XD-F4711-01-00
$171.99
17
SEAT ASSY
1XD-F4700-01-00
Unavailable
18
COVER,DOUBLE SEAT
1XD-F4731-01-00
$149.99
19
DAMPER, SEAT
1XD-F4723-00-00
$1.46
20
FRAME, SEAT 2
1XD-F473D-01-00
Unavailable
21
BOLT, SEAT FITTING
2PG-F4739-00-00
$1.59
22
GROMMET
1XD-F4742-00-00
$3.69
23
PLUG
2HC-F2417-00-00
$2.75
24
BOLT, FLANGE
95817-08012-00
$5.49
25
COVER,2
1XD-F475X-01-00
$38.99
26
RIVET, BLIND(EU0,USA)
90267-489U9-00
$5.60
27
SEAT 3
2PG-F749A-02-00
Unavailable
28
SEAT BACK ASY
1XD-F4790-01-00
$449.99
29
COVER,SINGLE SEAT
1XD-F4711-01-00
$171.99
30
SEAT ASSY
1XD-F4700-01-00
Unavailable
31
COVER,DOUBLE SEAT
1XD-F4731-01-00
$149.99
32
DAMPER, SEAT
1XD-F4723-00-00
$1.46
33
DAMPER
1XD-F473Y-01-00
Unavailable
34
GROMMET
1XD-F4742-00-00
$3.69
35
BOLT, SEAT FITTING
2PG-F4739-00-00
$1.59
36
PLUG
2HC-F2417-00-00
$2.75
37
BOLT, FLANGE
95817-08012-00
$5.49
