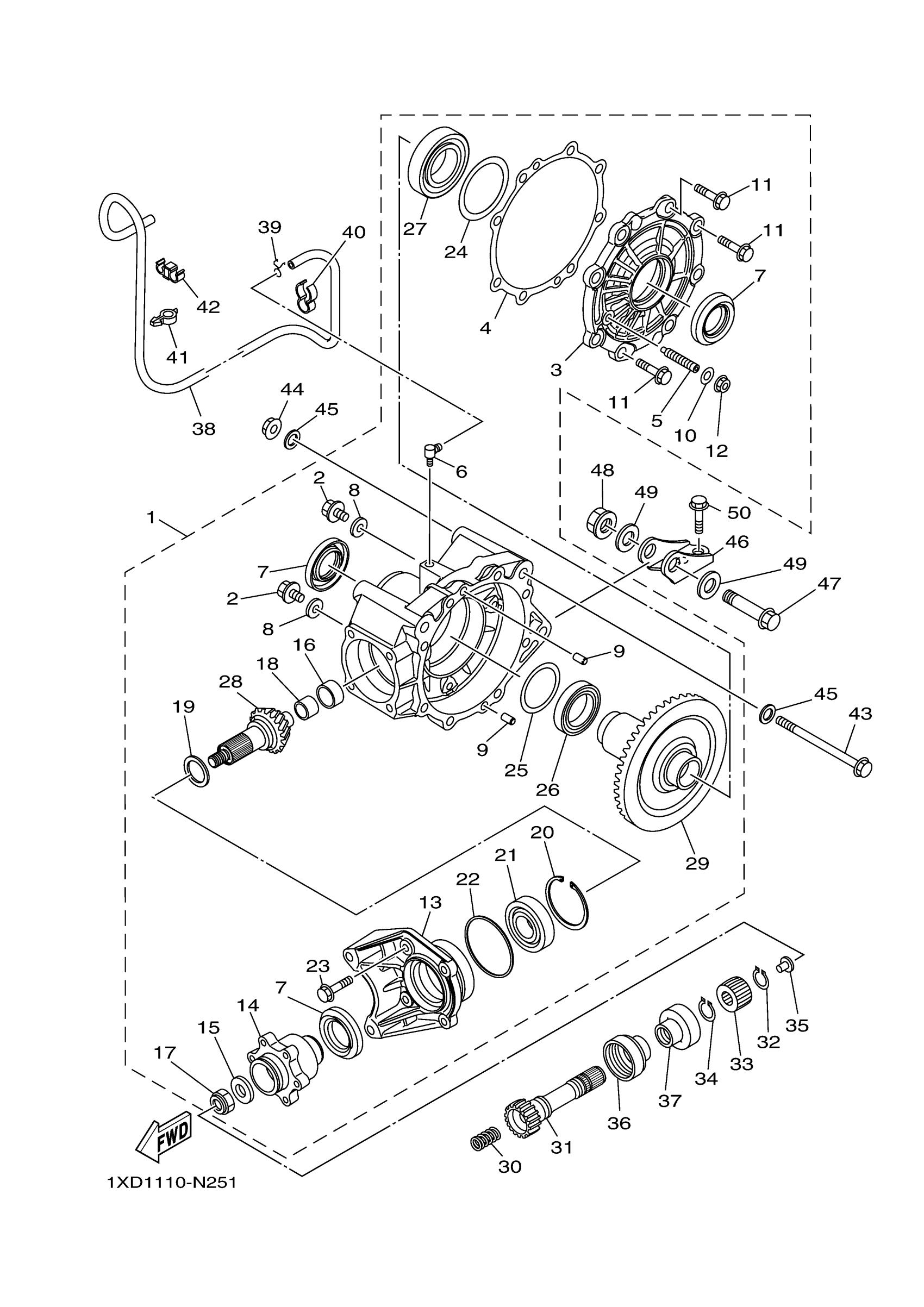

Yamaha YXM70VPASG (VIKING EPS) BHFU 2025 DRIVE SHAFT Diagram
#
1
RR AXL GR CASE ASY
1XD-G6101-12-00
$560.99
2
BOLT
1XD-E2228-00-00
$4.94
3
HOUSING, BEARING
1XD-G6152-00-00
$108.99
4
GSKT., CASE
1XD-G631A-00-00
$13.49
5
. STOPPER, RING GEAR
1CT-G6156-00-00
Unavailable
6
. BREATHER
1CT-E5371-00-00
Unavailable
7
OIL SEAL
1XD-E511B-00-00
$8.49
8
GASKET
1CT-E1195-00-00
$6.99
9
ROLLER
1CT-E3362-00-00
$3.66
10
GASKET
1CT-G6819-00-00
$3.59
11
BOLT
1XD-E2157-10-00
$9.99
12
. NUT, ADJUSTING
1CT-E3275-00-00
Unavailable
13
COVER
1XD-G2134-00-00
$99.99
14
COUPLING
1XD-G6126-00-00
$176.99
15
WASHER 1
1CT-E1557-00-00
$21.99
16
BEARING 1
1XD-E1428-00-00
Unavailable
17
NUT, LOCK
1CT-E6377-00-00
Unavailable
18
CLIP
1XD-G5319-00-00
Unavailable
19
WHEEL, SPROCKET 1
1XD-G7531-00-00
Unavailable
20
CLIP
1XD-E1486-00-00
Unavailable
21
BEARING
93306-30574-00
Unavailable
22
OIL RING, PISTON
1XD-E1614-00-00
Unavailable
23
. BOLT, LOCK PLATE
1XD-G2478-00-00
Unavailable
24
SHIM
1XD-G5567-00-00
Unavailable
25
SHIM
1XD-G5577-00-00
Unavailable
26
BEARING
1XD-E7051-00-00
Unavailable
27
BEARING 2
1XD-E1429-00-00
Unavailable
28
GEAR, DRIVE PINION
1XD-G6121-00-00
Unavailable
29
. RING GEAR COMP
1XD-G6110-00-00
Unavailable
30
SPRING, COMPRESSION (400)
90501-20361-00
Unavailable
31
SHAFT, DRIVE
1XD-G6172-00-00
Unavailable
32
CIRCLIP(1EY)
99009-19400-00
Unavailable
33
COUPLING
5KM-46126-00-00
Unavailable
34
CIRCLIP (537)
93410-22039-00
Unavailable
35
DAMPER
5KM-46559-00-00
Unavailable
36
SEAL 2
5KM-46137-00-00
Unavailable
37
SEAL 1
5KM-46136-00-00
Unavailable
38
HOSE (L1920)
90445-07032-00
Unavailable
39
CLIP (1J7)
90467-07029-00
Unavailable
40
CLAMP(53Y)
90464-15065-00
Unavailable
41
CLAMP
90464-12830-00
Unavailable
42
CLAMP
90464-09013-00
Unavailable
43
BOLT, FLANGE
95812-12130-00
Unavailable
44
NUT, SELF-LOCKING
90185-12002-00
Unavailable
45
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
46
BRKT., RR. AXLE
1XD-F1981-00-00
Unavailable
47
BOLT, FLANGE
90105-12082-00
Unavailable
48
NUT, SELF-LOCKING
90185-12002-00
Unavailable
49
YBS66-12 WASHER,PLAIN
92990-12200-00
Unavailable
50
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
