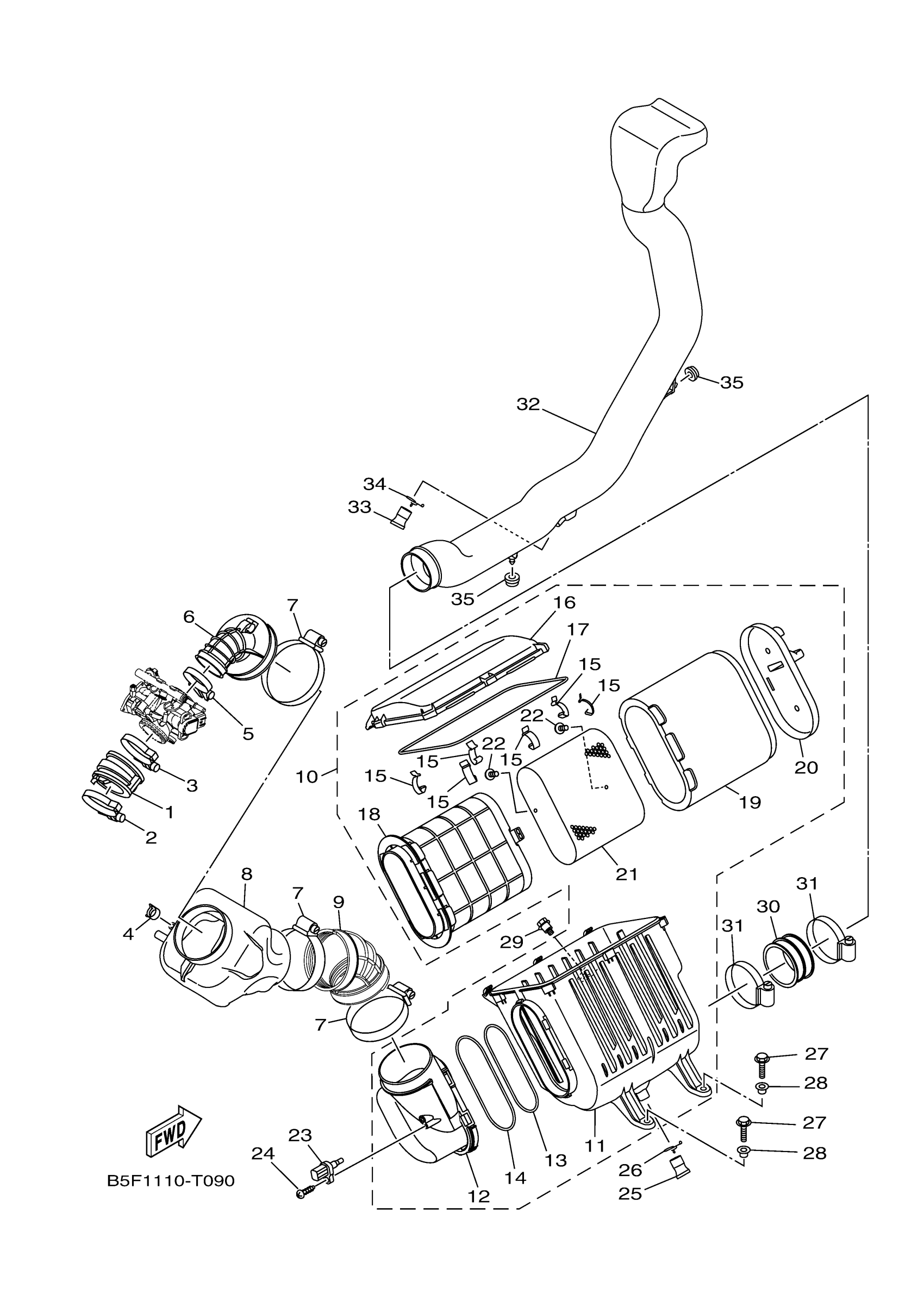

Yamaha YXM70VPARG (VIKING EPS) BHFN 2024 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

5B4-13586-00-00

$34.82

2

HOSE CLAMP ASSY

90450-72004-00

$15.94

3

HOSE CLAMP ASSY

90450-72004-00

$15.94

4

CLIP (4V3)

90467-19051-00

$2.75

5

HOSE CLAMP ASSY

90450-62006-00

$10.05

6

JOINT, AIR CLEANER

1XD-E4453-00-00

$25.52

7

HOSE CLAMP ASSY

90450-99807-00

Unavailable

8

SILENCER,INTAKE 1

1XD-E4431-02-00

$22.29

9

JOINT, AIR CLEANER

1XD-E4463-00-00

$21.00

10

AIR CLEANER ASY.1

1XD-E4410-02-00

$192.82

11

CASE, AIR CLEANER

1XD-E4411-01-00

$67.58

12

GUIDE

1XD-E4458-00-00

$24.32

13

. SEAL

1XD-E4462-01-00

$8.47

14

. SEAL

1XD-E4467-00-00

$8.45

15

CLIP, CAP FITTING

3B4-14424-00-00

$6.29

16

CAP, CLEANER CASE

1XD-E4412-01-00

Unavailable

17

SEAL

1XD-E4452-00-00

Unavailable

18

PLATE, ELEMENT

1XD-E4472-00-00

Unavailable

19

ELEMENT, AIR CLEAN

1XD-E4451-00-00

Unavailable

20

COVER 1

1XD-E4417-00-00

Unavailable

21

NET 2

1XD-E441B-00-00

Unavailable

22

SCREW

1XD-E4429-00-00

Unavailable

23

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

Unavailable

24

SCREW, PANHEAD TAPPING

97702-50520-00

Unavailable

25

SEAL

59V-14457-00-00

Unavailable

26

CLIP

90467-220A1-00

Unavailable

27

BOLT, FLANGE

90105-06833-00

Unavailable

28

COLLAR 8111266500

90387-07037-00

Unavailable

29

BOLT

90109-06262-00

Unavailable

30

SEAL

1XD-E4476-00-00

$5.27

31

HOSE CLAMP ASSY

90450-95802-00

Unavailable

32

DUCT

1XD-E443A-01-00

Unavailable

33

SEAL

59V-14457-00-00

Unavailable

34

CLIP

90467-220A1-00

Unavailable

35

GROMMET(4FU)

90480-13567-00

Unavailable
