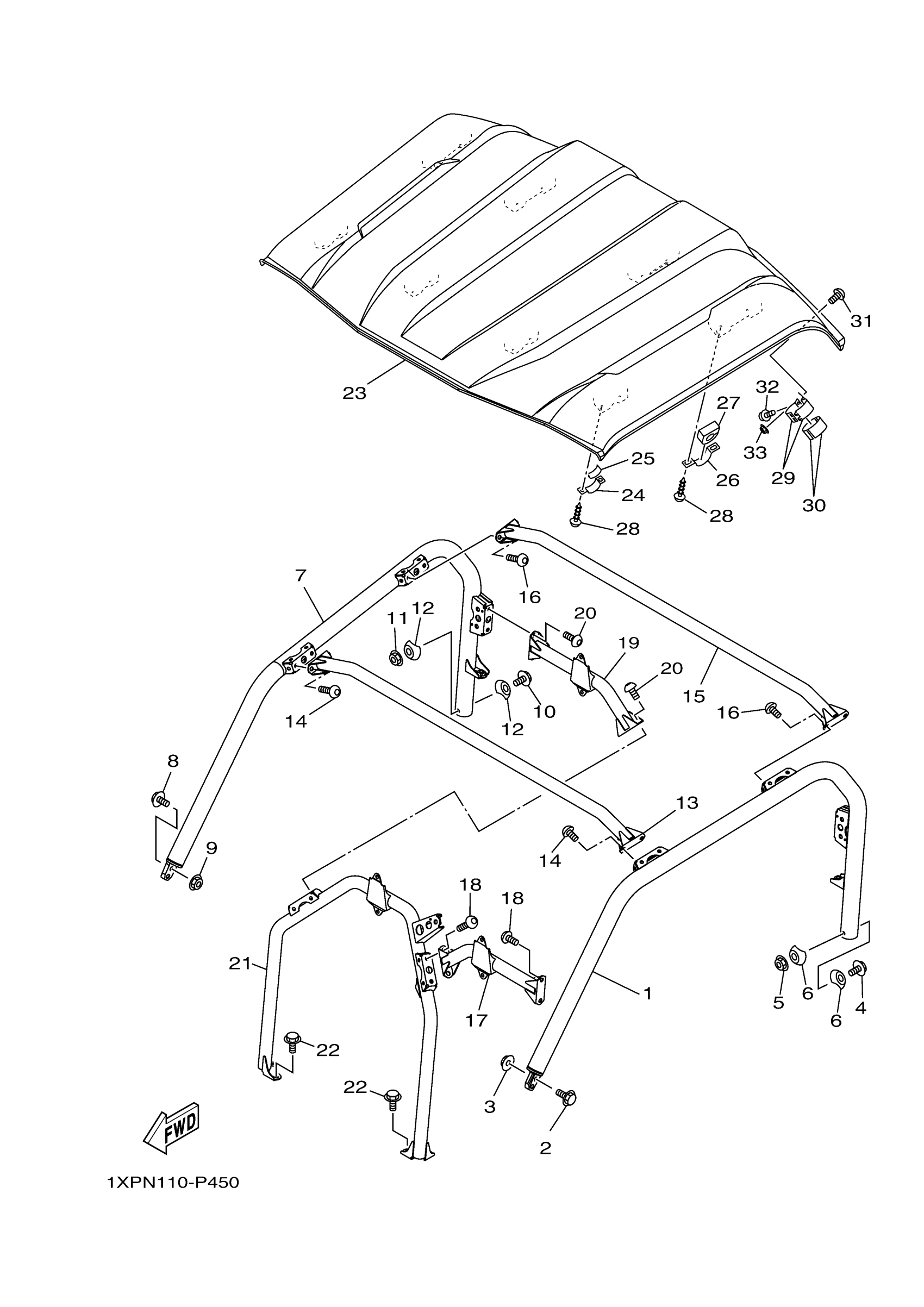

Yamaha YXM70VPARG (VIKING EPS) BHFN 2024 GUARD 2 Diagram

#

Description
Price

1

SUPPORT, ROOF 3

1XD-K831A-10-00

$295.55

2

BOLT, FLANGE (8V9)

95812-10045-00

$3.48

3

NUT, SELF-LOCKING

90185-10011-00

$3.67

4

BOLT, BUTTON HEAD

92012-10070-00

$3.92

5

NUT, SELF-LOCKING

90185-10011-00

$3.67

6

WASHER 2

1XD-K7526-00-00

$3.92

7

SUPPORT, ROOF 4

1XD-K831E-10-00

$295.55

8

BOLT, FLANGE (8V9)

95812-10045-00

$3.48

9

NUT, SELF-LOCKING

90185-10011-00

$3.67

10

BOLT, BUTTON HEAD

92012-10070-00

$3.92

11

NUT, SELF-LOCKING

90185-10011-00

$3.67

12

WASHER 2

1XD-K7526-00-00

$3.92

13

MEMBER, ROOF FRAME

1XD-K8392-10-00

$117.20

14

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

15

MEMBER, ROOF FRAME

1XD-K8393-10-00

$117.14

16

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

17

SUNROOF PIPE ASSY

2PG-K830E-10-00

Unavailable

18

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

19

SUNROOF PIPE ASSY

2PG-K830F-10-00

Unavailable

20

BOLT,HEX. SOCKET B

90111-10802-00

$2.29

21

ROOF SUPPORT ASSY

2PG-K830A-10-00

Unavailable

22

BOLT, FLANGE

95812-10016-00

Unavailable

23

COVER, SUN ROOF

1XP-K8314-00-00

$234.67

24

CLAMP, SUPPORT

5UG-K8366-00-00

Unavailable

25

DAMPER

5UG-K7588-01-00

Unavailable

26

CLAMP, SUPPORT

1XP-K8366-00-00

Unavailable

27

DAMPER

1XP-K7588-00-00

Unavailable

28

SCREW, TAPPING

90167-06800-00

Unavailable

29

CLAMP

1XP-F481H-00-00

Unavailable

30

DAMPER

5UG-K7588-01-00

Unavailable

31

BOLT,HEX SKT HEAD

90111-06814-00

Unavailable

32

BOLT, FLANGE

95817-06012-00

Unavailable

33

NUT, U FLANGE

95604-06200-00

Unavailable
