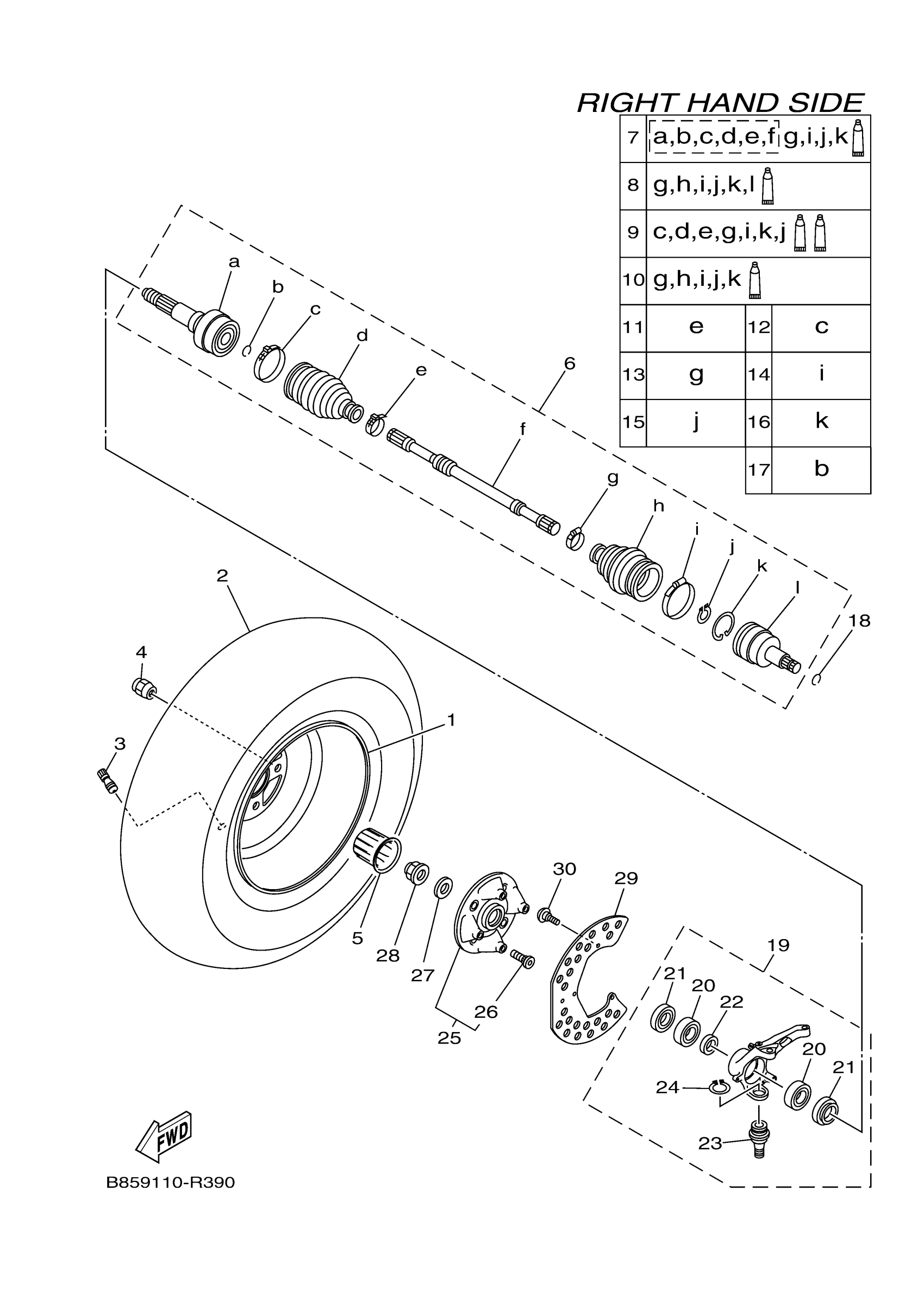

Yamaha YXM70VPANG (VIKING EPS) BHFA 2022 FRONT WHEEL 2 Diagram

#

Description
Price

1

CAST WHEEL, FRONT

1XP-F5168-00-00

$209.99

2

25X8.00-12 NHS MU092PRTL(IXD)

94108-12818-00

$306.99

3

VALVE, RIM

93900-00812-00

Unavailable

4

NUT, CROWN

90176-12800-00

$7.49

5

CAP, WHEEL

2MB-F512A-00-00

$2.65

6

DRIVE SHAFT ASSY

1XD-F518F-01-00

$277.99

7

BALL JOINT SET

1XD-F530T-10-00

$238.99

8

. DOUBLE OFF SET JOINT

1XD-F530V-10-00

Unavailable

9

BOOT SET (BALL JOI

1XD-F530X-10-00

$163.99

10

BOOT SET(DOUBLE OF

1XD-F530Y-10-00

$151.99

11

BOOT BAND(DOUBLE O

1XD-F511H-00-00

$27.99

12

. BOOT BAND (BALL JOINT)

1XD-F511G-00-00

Unavailable

13

. BOOT BAND (SMALL)

5UG-F510U-00-00

Unavailable

14

. BOOT BAND (SMALL)

1XD-F512G-10-00

Unavailable

15

SNAP RING

3B4-2512J-00-00

$8.99

16

CIRCLIP

3B4-25182-00-00

Unavailable

17

CIRCLIP

5UG-F512H-00-00

Unavailable

18

CIRCLIP(2HR)

93450-22119-00

Unavailable

19

STEERING KNUCKLE A

1XD-F3502-00-00

Unavailable

20

BEARING

93306-20725-00

Unavailable

21

OIL SEAL

93106-50002-00

Unavailable

22

COLLAR

90387-35007-00

Unavailable

23

BALL JOINT 2

1XD-23579-00-00

Unavailable

24

CIRCLIP

93410-32075-00

Unavailable

25

HUB ASSY 2

2MB-F510D-04-00

Unavailable

26

BOLT, SERRATION

90114-12005-00

Unavailable

27

WASHER, PLATE

90201-25023-00

Unavailable

28

NUT

90179-24006-00

Unavailable

29

RING, WHEEL 1

1XD-F514A-01-00

Unavailable

30

BOLT, BUTTON HEAD

92012-06012-00

Unavailable
