- YXM70VPAMG (VIKING EPS) BHF3 2021
SIDE COVER 2

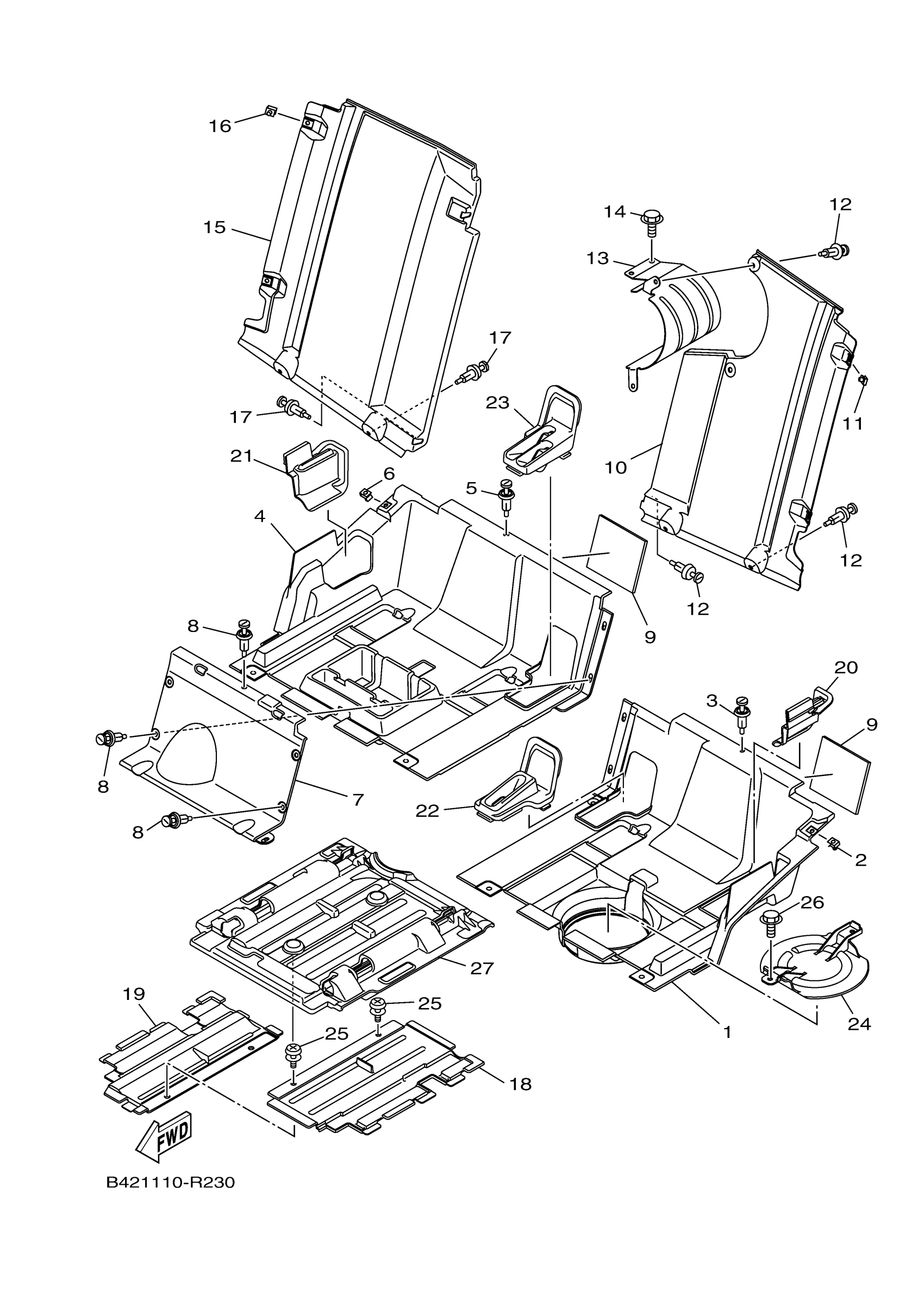

Yamaha YXM70VPAMG (VIKING EPS) BHF3 2021 SIDE COVER 2 Diagram
#
Description
Price
1
PLATE, UNDER 1
1XD-F84A3-00-00
$45.99
2
NUT, SPRING
90183-060A6-00
$5.49
3
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
4
PLATE, UNDER 2
1XD-F84A4-00-00
Unavailable
5
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
6
NUT, SPRING
90183-060A6-00
$5.49
7
PLATE, UNDER 3
1XD-F84A5-00-00
Unavailable
8
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
9
DAMPER
B42-21747-00-00
Unavailable
10
MUD GUARD 1
1XD-F2327-00-00
$33.99
11
NUT, SPRING
90183-060A6-00
$5.49
12
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
13
PANEL 1
1XD-F172A-00-00
Unavailable
14
BOLT, FLANGE
90105-08867-00
$15.99
15
MUD GUARD 2
1XD-F2328-01-00
$31.99
16
NUT, SPRING
90183-060A6-00
$5.49
17
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
18
PLATE, UNDER 4
B42-F84A6-00-00
Unavailable
19
PLATE, UNDER 5
B42-F84A7-00-00
Unavailable
20
PLATE, RUBBER 1
B42-F8483-01-00
Unavailable
21
PLATE, RUBBER 2
B42-F8484-01-00
Unavailable
22
PLATE, RUBBER 3
B42-F8485-00-00
Unavailable
23
PLATE, RUBBER 4
B42-F8499-00-00
Unavailable
24
PLATE, SEAL
B42-F2448-00-00
Unavailable
25
RIVET
5UG-F3483-00-00
Unavailable
26
BOLT, FLANGE
90105-08867-00
$15.99
27
PLATE
B42-F176E-00-00
Unavailable
