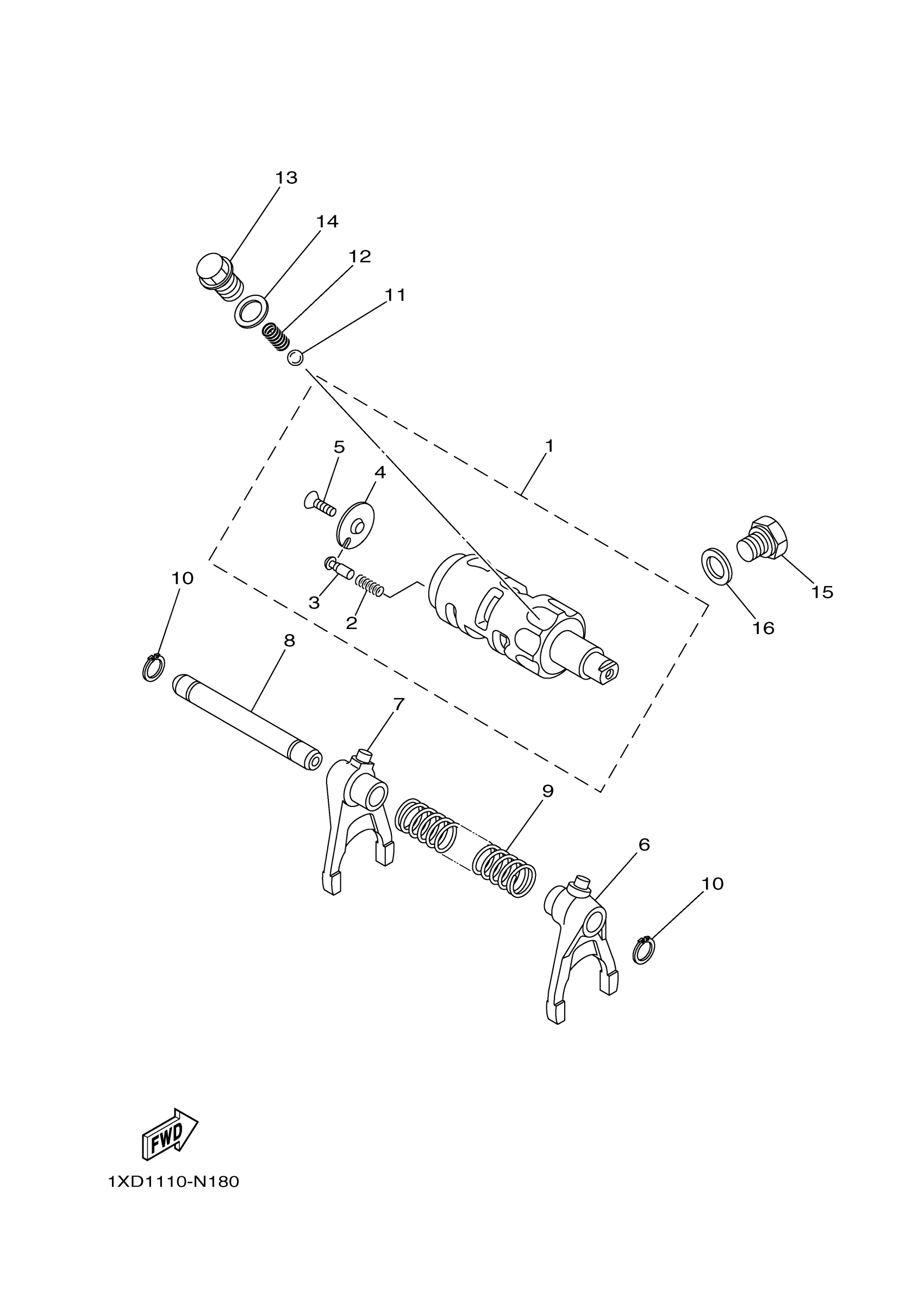

Yamaha YXM70VPAMG (VIKING EPS) BHF3 2021 SHIFT CAM FORK Diagram

Description

Price

SHIFT CAM ASSY

1XD-18540-00-00

Unavailable

SPRING COMPRESSION278185450000

90501-06022-00

$8.49

POINT, NEUTRAL

5KM-18542-00-00

$15.49

PLATE, SIDE 2

4UN-18566-00-00

$19.99

SCREW

90149-05015-00

$5.60

FORK, SHIFT 1

3B4-18511-11-00

$116.99

FORK, SHIFT 2

1XD-18512-00-00

$103.99

BAR, SHIFT FORK GUIDE 1

5B4-18531-00-00

$38.99

SPRING, COMPRESSION

90501-140A2-00

$8.49

CIRCLIP(10Y)

99009-12400-00

$3.59

BALL

93503-08007-00

$4.15

SPRING, COMPRESSION

90501-100A8-00

$1.91

BOLT, FLANGE

90105-14003-00

$8.49

GASKET(59V)

90430-14194-00

$8.49

PLUG, (663)

90340-14036-00

$14.99

GASKET(59V)

90430-14194-00

$8.49
