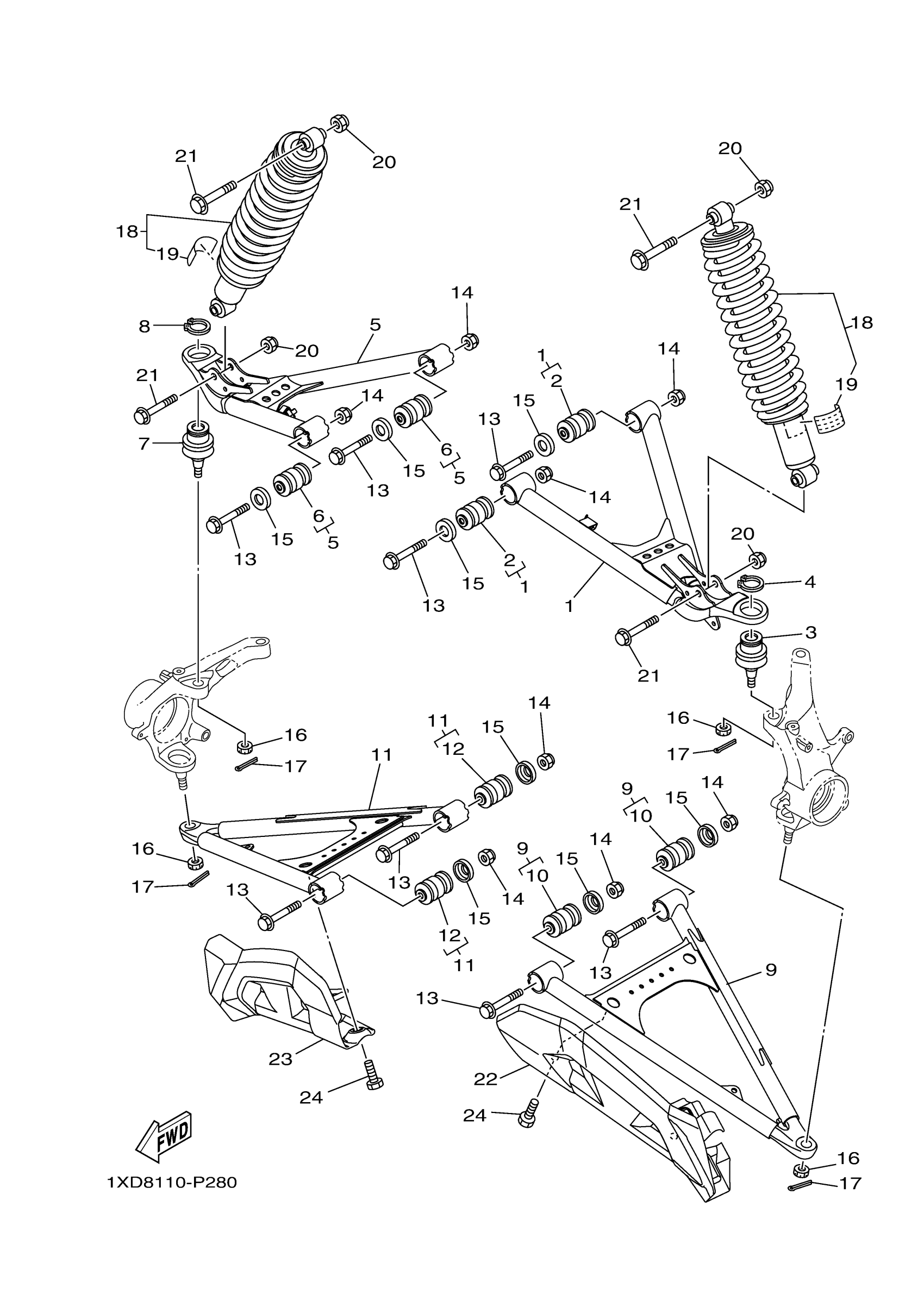

Yamaha YXM70VPAMG (VIKING EPS) BHF3 2021 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT UPPER ARM CO

1XD-F3540-02-00

$69.80

2

BUSH

1HP-F3526-00-00

$20.42

3

BALL JOINT 2

1XD-23579-00-00

$62.23

4

CIRCLIP

93410-32075-00

$6.51

5

FRONT UPPER ARM CO

1XD-F3550-02-00

$69.80

6

BUSH

1HP-F3526-00-00

$20.42

7

BALL JOINT 2

1XD-23579-00-00

$62.23

8

CIRCLIP

93410-32075-00

$6.51

9

FRONT LOWER ARM CO

2PG-F3570-01-00

$74.09

10

BUSH

1HP-F3526-00-00

$20.42

11

FRONT LOWER ARM CO

2PG-F3580-01-00

$69.67

12

BUSH

1HP-F3526-00-00

$20.42

13

BOLT, FLANGE

90105-10267-00

$7.23

14

NUT, SELF-LOCKING

90185-10012-00

$2.78

15

COVER, THRUST 1

BG4-F3517-00-00

$0.78

16

NUT, CASTLE

90171-12001-00

Unavailable

17

PIN, COTTER

91490-25020-00

Unavailable

18

SHOCK ABSORBER ASS

BHF-F3390-00-00

Unavailable

19

LABEL, WARNING

B4J-F2259-00-00

Unavailable

20

NUT, SELF-LOCKING

90185-10012-00

$2.78

21

BOLT, FLANGE

90105-10283-00

Unavailable

22

COVER, UNDER 1

1XD-F3123-00-00

Unavailable

23

COVER, LOWER 2

1XD-F3133-00-00

Unavailable

24

BOLT

90109-06220-00

Unavailable
