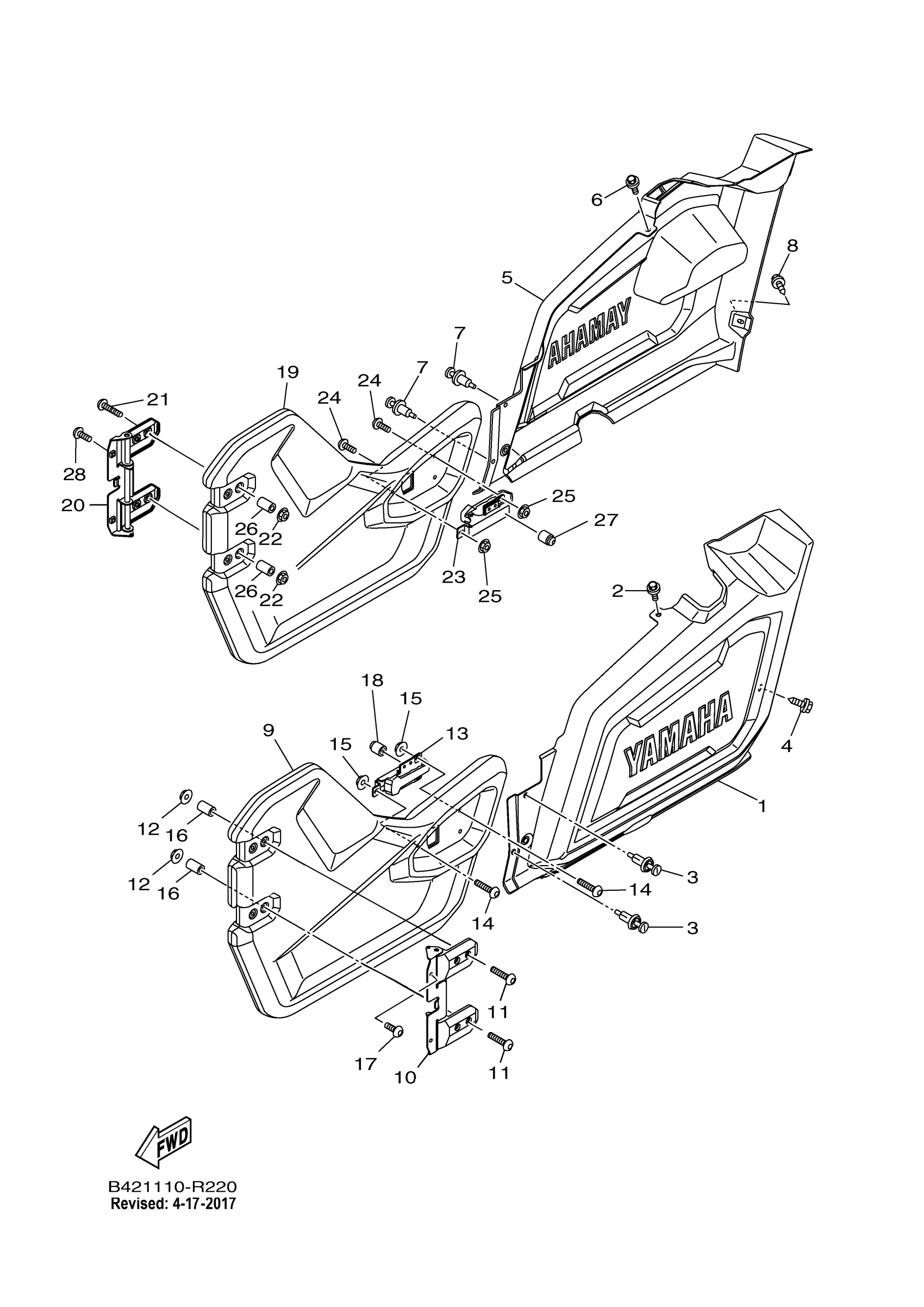

Yamaha YXM70VDXHR (VIKING) BD951 2017 SIDE COVER Diagram
#
Description
Price
1
COVER, SIDE 2
1XD-F1721-00-00
$30.99
2
BOLT, WITH WASHER
90119-06226-00
$8.49
3
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
4
BOLT, WITH WASHER
90119-06226-00
$8.49
5
COVER, SIDE 3
1XD-F1731-00-00
$28.99
6
BOLT, WITH WASHER
90119-06226-00
$8.49
7
RIVET,SPEC'L SHAPE
90269-07805-00
Unavailable
8
BOLT, WITH WASHER
90119-06226-00
$8.49
9
PNL., DOOR FR. LH
1XD-K8557-11-00
$74.99
10
HINGE ASSY
1XD-F4772-00-00
$45.99
11
BOLT
90109-06897-00
$0.90
12
NUT, U FLANGE
95604-06200-00
$8.49
13
BODY, LATCH 1
2MB-K7171-00-00
$69.99
14
BOLT,HEX. SOCKET BUTTON
90111-06086-00
$5.60
15
NUT, U FLANGE
95604-06200-00
$8.49
16
COLLAR
90387-06304-00
Unavailable
17
BOLT 2
5B4-F1722-00-00
Unavailable
18
PAD
2MB-F8378-00-00
Unavailable
19
PNL., DOOR FR. LH
1XD-K8557-11-00
$74.99
20
HINGE ASSY
1XD-F4772-00-00
$45.99
22
NUT, U FLANGE
95604-06200-00
$8.49
23
BODY, LATCH 2
2MB-K7172-00-00
Unavailable
24
BOLT,HEX. SOCKET BUTTON
90111-06086-00
$5.60
25
NUT, U FLANGE
95604-06200-00
$8.49
26
COLLAR
90387-06304-00
Unavailable
27
PAD
2MB-F8378-00-00
Unavailable
27
BOLT
90109-06897-00
$0.90
28
BOLT 2
5B4-F1722-00-00
Unavailable
