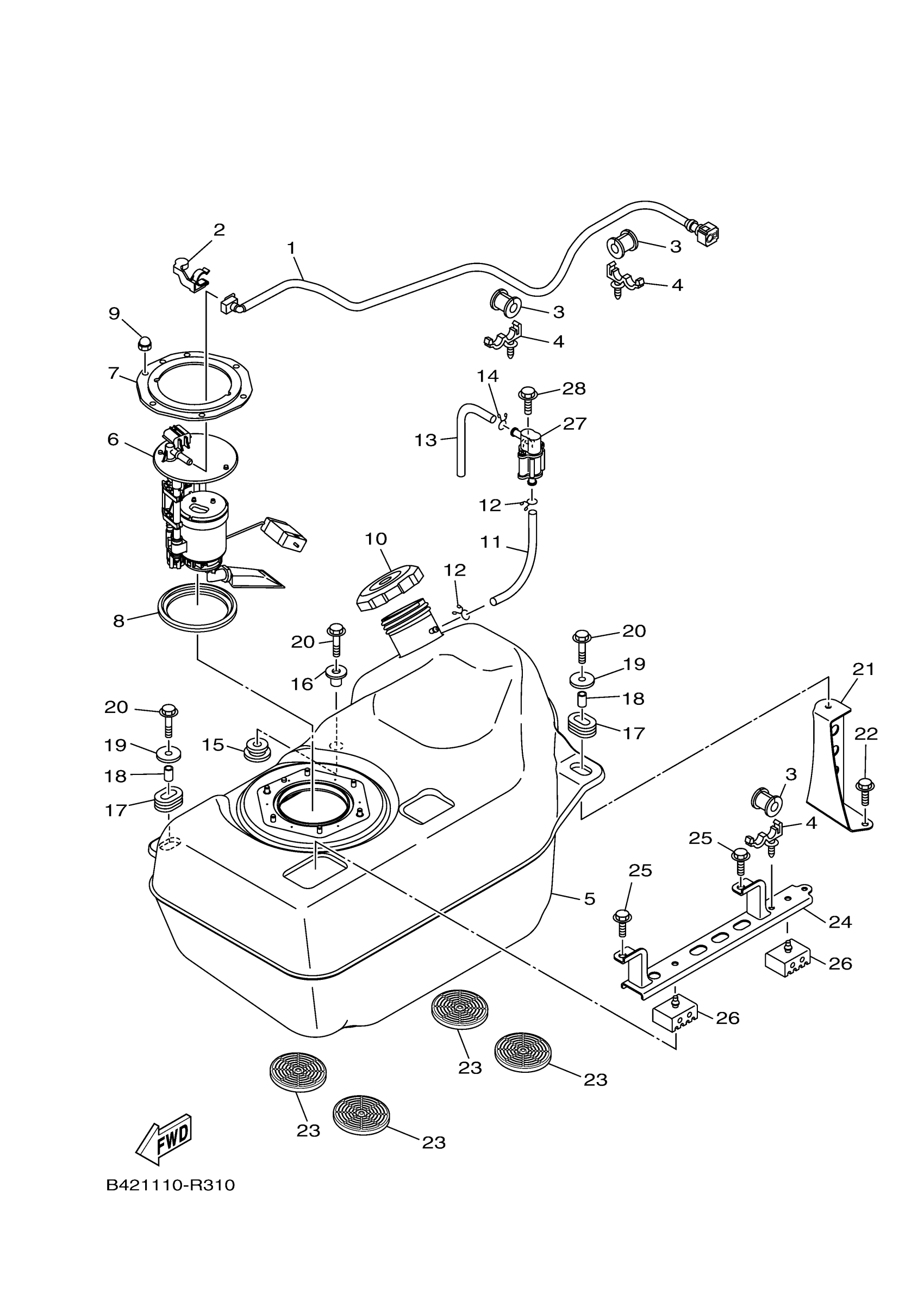

Yamaha YXM70VDXHR (VIKING) BD951 2017 FUEL TANK Diagram
#
Description
Price
1
PIPE, FUEL 1
1XD-13971-01-00
$88.99
2
CLAMP
90464-14004-00
$7.49
3
GROMMET(4CG)
90480-20543-00
$8.49
4
CLAMP
90464-20010-00
$3.23
5
FUEL TANK COMP.
1XD-F4110-00-00
$244.99
6
Fuel Pump Comp
3B4-13907-13-00
$317.99
7
BRACKET, FUEL PUMP
3B4-24491-00-00
Unavailable
8
O-RING
1S3-24486-00-00
$17.49
9
NUT (J17)
95380-06800-00
$8.49
10
CAP ASSY
BVG-24610-00-00
Unavailable
11
HOSE (L160)
90445-09827-00
Unavailable
12
CLIP
90467-090A2-00
$4.41
13
HOSE (L85)
90445-09826-00
Unavailable
14
CLIP
90467-090A2-00
$4.41
15
GROMMET
90480-18016-00
$8.49
16
COLLAR
90387-07021-00
Unavailable
17
GROMMET(38W)
90480-01400-00
Unavailable
18
COLLAR(2UJ)
90387-061V1-00
Unavailable
19
WASHER (23T)
90201-065G8-00
Unavailable
20
BOLT, FLANGE
95817-06030-00
Unavailable
21
BRACKET, FUEL TANK 1
1XD-F4291-00-00
Unavailable
22
BOLT, FLANGE
90105-06831-00
Unavailable
23
DAMPER, LOCATING 1
2MB-F4181-00-00
Unavailable
24
STAY, FUEL TANK 1
1XD-F4157-00-00
Unavailable
25
BOLT, FLANGE
90105-08867-00
Unavailable
26
DAMPER, LOCATING 2
1XD-24182-00-00
Unavailable
27
PIPE JOINT ASSY
28P-24380-00-00
Unavailable
28
BOLT, FLANGE (SELF TAPPING)
90105-06832-00
Unavailable
