- YXM70VDHHH (VIKING) BD97 2017
FRONT WHEEL 2

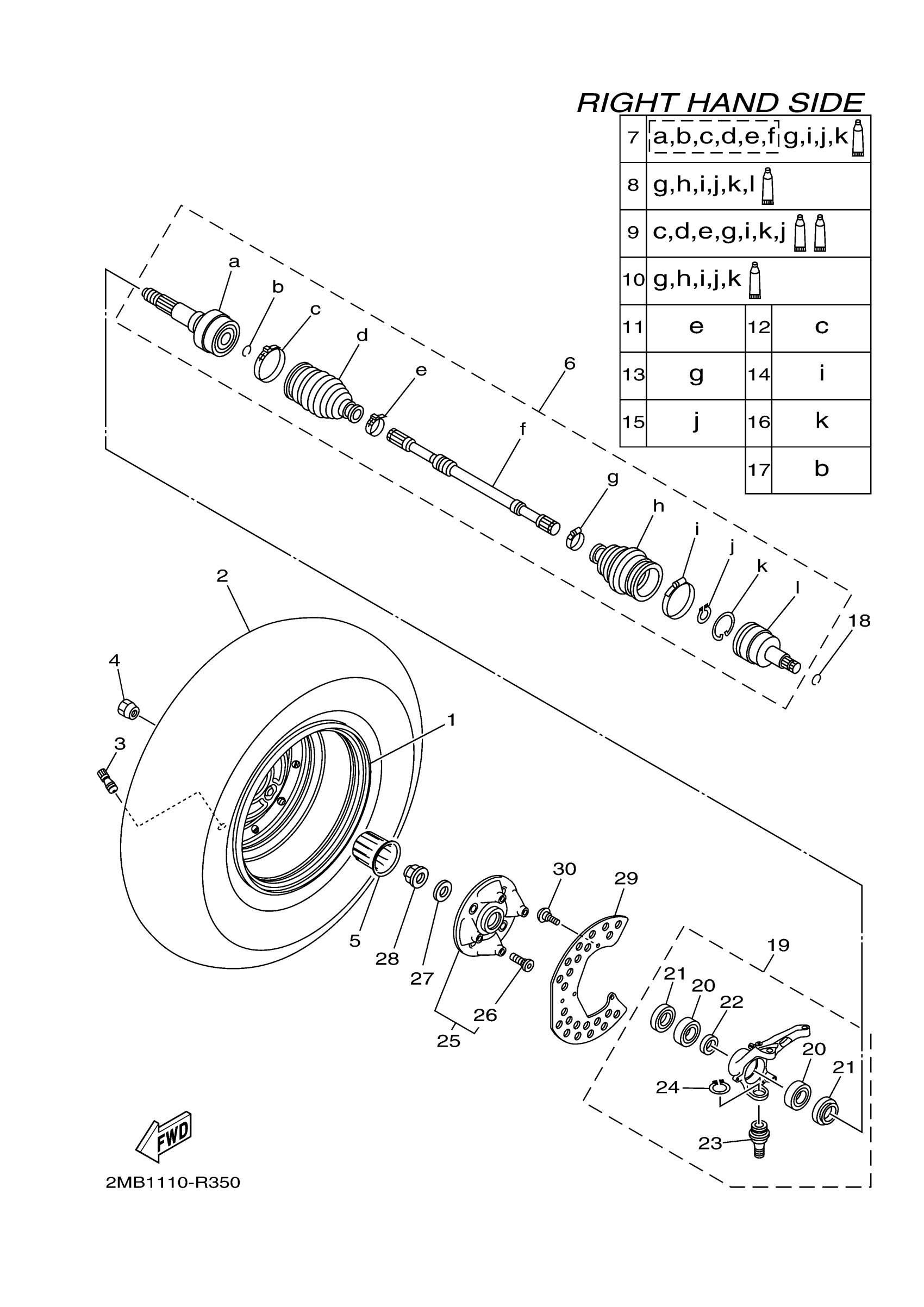

Yamaha YXM70VDHHH (VIKING) BD97 2017 FRONT WHEEL 2 Diagram
#
1
WHEEL COMP.
1XD-F5180-00-00
$140.99
2
25X8.00-12 NHS MU092PRTL(IXD)
94108-12818-00
$306.99
3
VALVE, RIM
93900-00812-00
Unavailable
4
NUT (J10)
90179-12262-00
$5.60
5
CAP, WHEEL
2MB-F512A-00-00
$2.65
6
DRIVE SHAFT ASSY
1XD-F518F-01-00
$277.99
7
BALL JOINT SET
1XD-F530T-10-00
$238.99
8
. DOUBLE OFF SET JOINT
1XD-F530V-10-00
Unavailable
9
BOOT SET (BALL JOI
1XD-F530X-10-00
$163.99
10
BOOT SET(DOUBLE OF
1XD-F530Y-10-00
$151.99
11
BOOT BAND(DOUBLE O
1XD-F511H-00-00
$27.99
12
. BOOT BAND (BALL JOINT)
1XD-F511G-00-00
Unavailable
13
. BOOT BAND (SMALL)
5UG-F510U-00-00
Unavailable
14
. BOOT BAND (SMALL)
1XD-F512G-10-00
Unavailable
15
SNAP RING
3B4-2512J-00-00
$8.99
16
CIRCLIP
3B4-25182-00-00
Unavailable
17
CIRCLIP
5UG-F512H-00-00
Unavailable
18
CIRCLIP(2HR)
93450-22119-00
Unavailable
19
STEERING KNUCKLE A
1XD-F3502-00-00
Unavailable
20
BEARING
93306-20725-00
Unavailable
21
OIL SEAL
93106-50002-00
Unavailable
22
COLLAR
90387-35007-00
Unavailable
23
BALL JOINT 2
1XD-23579-00-00
Unavailable
24
CIRCLIP
93410-32075-00
Unavailable
25
HUB ASSY 2
2MB-F510D-04-00
Unavailable
26
BOLT, SERRATION
90114-12005-00
Unavailable
27
WASHER, PLATE
90201-25023-00
Unavailable
28
NUT
90179-24006-00
Unavailable
29
RING, WHEEL 1
1XD-F514A-01-00
Unavailable
30
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
