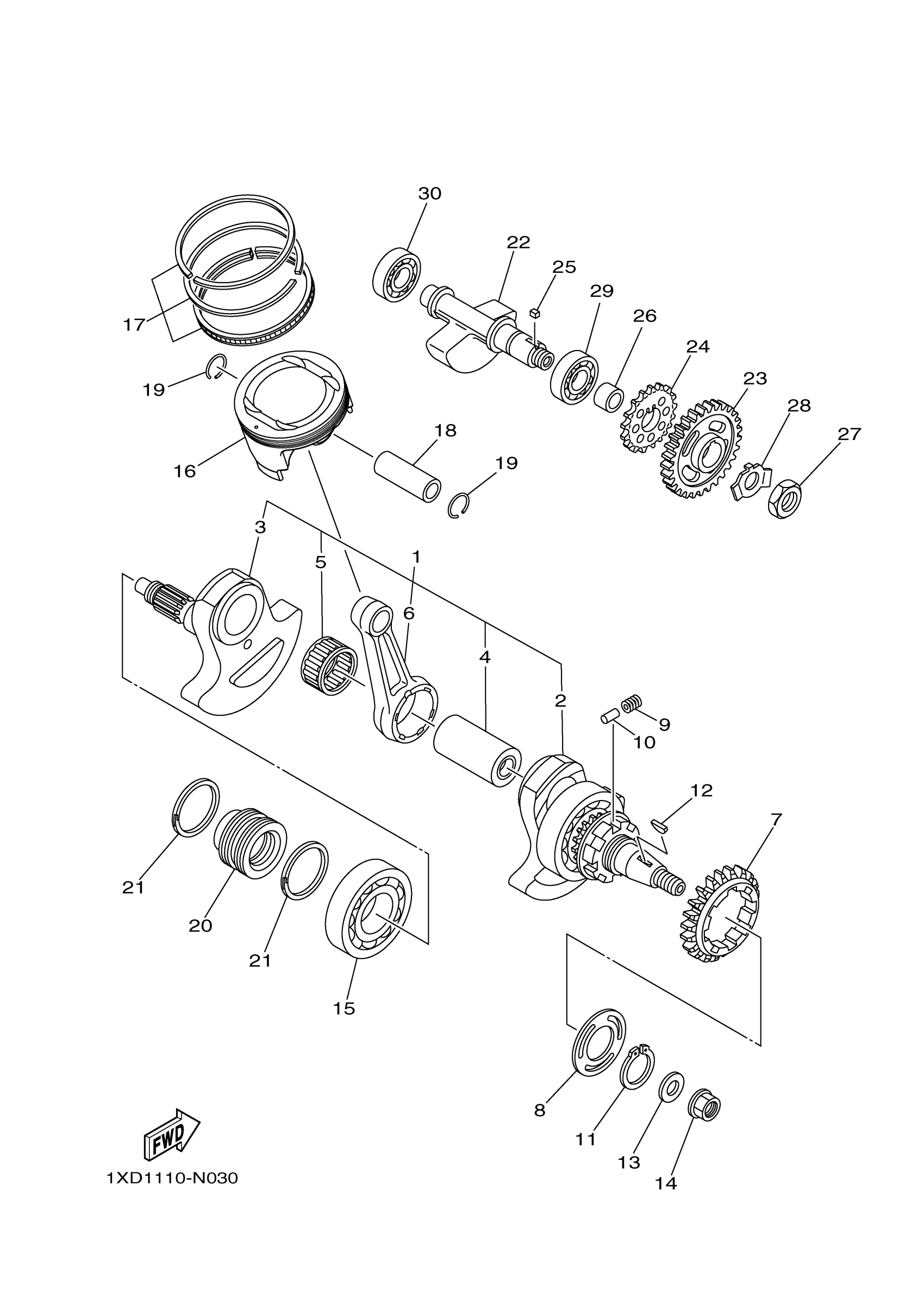

Yamaha YXM70VDHHH (VIKING) BD97 2017 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

2BG-11400-10-00

$564.19

2

CRANK SUB ASSY 1

3B4-11401-09-00

Unavailable

3

CRANK SUB ASSY 2

3B4-11402-09-00

$254.80

4

PIN, CRANK 1

5VK-11681-01-00

$90.82

5

BEARING

93310-84037-00

$67.42

6

ROD, CONNECTING

2BG-11651-00-00

$135.74

7

GEAR, DRIVE

1HP-11536-00-00

$120.03

8

WASHER, BEARING COVER

5KM-11565-00-00

$10.58

9

SPRING, COMPRESSION

90501-220A1-00

$5.69

10

PIN, DOWEL

93606-09002-00

$2.96

11

CIRCLIP(6U2)

93410-35M10-00

$4.24

12

KEY, WOODRUFF

90280-05001-00

$11.00

13

WASHER, PLATE

90201-16013-00

$11.08

14

NUT

90179-16004-00

$12.79

15

BEARING

93306-30810-00

$61.49

16

PISTON (STD)

2BG-11631-00-00

Unavailable

17

PISTON RING SET (STD)

1S3-11603-10-00

Unavailable

18

PIN, PISTON

5VK-11633-00-00

Unavailable

19

CIRCLIP

93450-24154-00

Unavailable

20

SPACER 1

3B4-16181-00-00

Unavailable

21

SEAL, CRANK

2BG-11447-01-00

Unavailable

22

WEIGHT 1

2BG-11454-00-00

Unavailable

23

GEAR, BALANCE WEIGHT

1HP-11531-10-00

Unavailable

24

SPROCKET, DRIVE

1HP-13354-00-00

Unavailable

25

KEY, STRAIGHT(34K)

90282-05065-00

Unavailable

26

COLLAR

90387-24001-00

Unavailable

27

NUT

90170-18003-00

Unavailable

28

WASHER, LOCK

90215-18001-00

Unavailable

29

BEARING(3RR)

93306-30560-00

Unavailable

30

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable
