2017 Yamaha Viking (YXM70VDHHH) Crankcase Diagram

← All diagrams

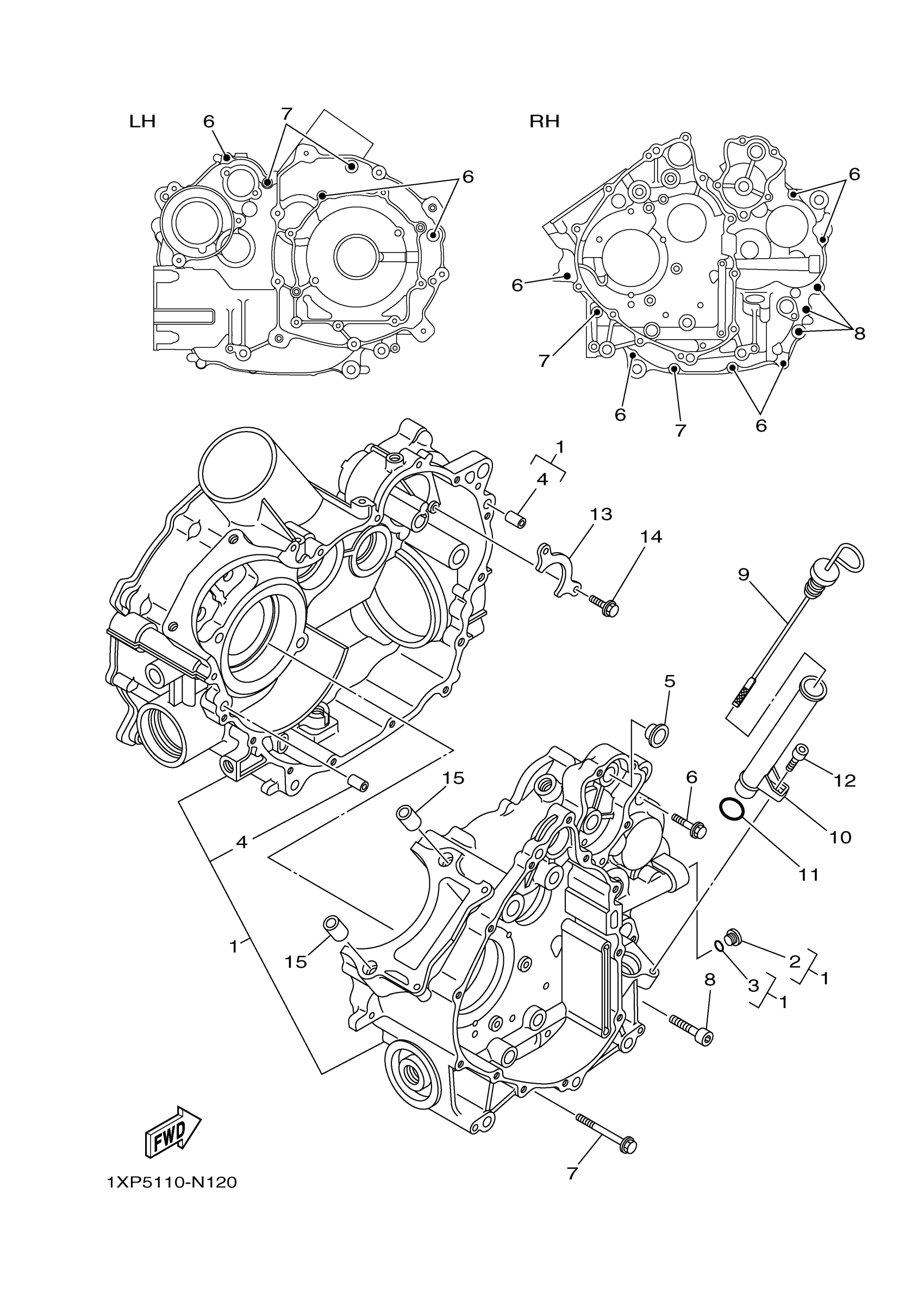

Find the part on the Crankcase diagram for your 2017 Yamaha Viking (YXM70VDHHH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha Viking (YXM70VDHHH) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

3B4-15100-27-00

1
Out of stock

2

PLUG

36Y-15189-01-00

—

$12.03

In stock

3

O-RING(1L9)

93210-16325-00

1

$5.86

In stock

4

PIN, DOWEL(2VG)

99530-10116-00

1

$3.37

In stock

5

SPACER, CAM SHAFT

3B4-18581-00-00

1
Out of stock

6

BOLT, FLANGE

95022-06030-00

1

$1.40

In stock

7

BOLT, FLANGE

95022-06060-00

1

$6.26

In stock

8

BOLT,SOCKET

91314-08040-00

1
Out of stock

9

PLUG, OIL LEVEL

5B4-15362-00-00

1

$31.82

In stock

10

PIPE, OIL

5B4-15112-00-00

1

$50.38

In stock

11

O-RING (26H)

93210-21631-00

1

$6.43

In stock

12

BOLT,SOCKET

91317-06012-00

1

$6.17

In stock

13

PLATE, BEARING COVER

3B4-15388-00-00

1

$3.60

In stock

14

BOLT, FLANGE

95022-06020-00

1

$3.32

In stock

15

PIN, DOWEL

99530-14016-00

1

$3.20

In stock
